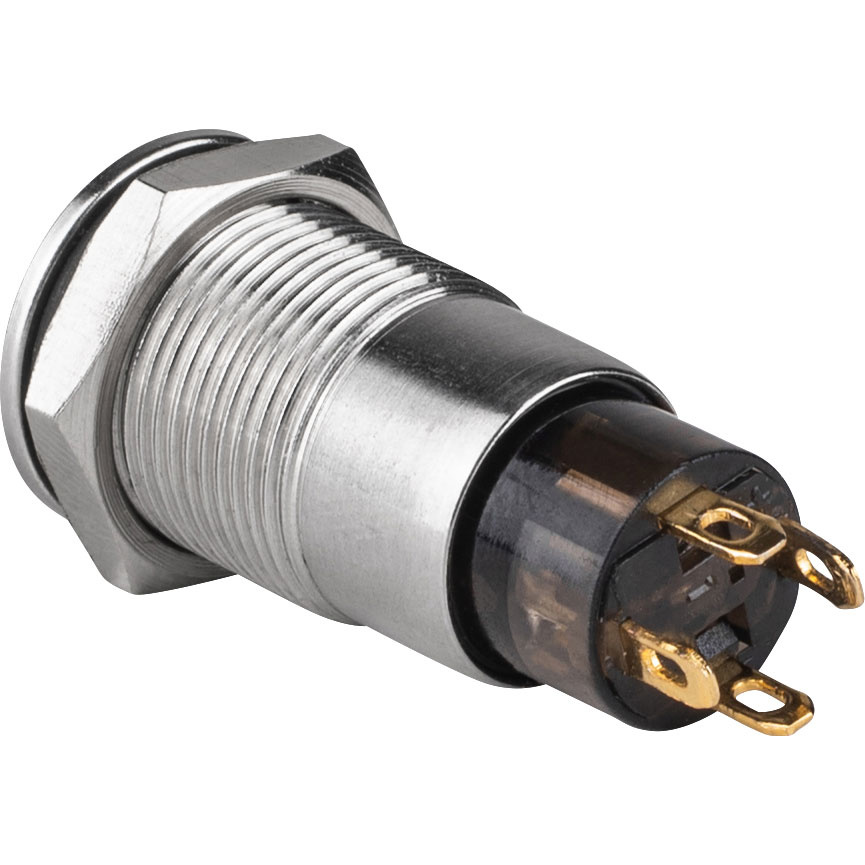

SPST Stainless Steel Waterproof Raised Push Button

8,22 €9,95 € 1 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung SPST Stainless Steel Raised Push Button Switch

Use this heavy duty, Stainless steel, anti-vandal push button latching (push on/push off) switch for outdoor and other extreme condition applications. It has a built-in red light ring for 3 VDC applications.

Highlights

Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
Stainless steel body and IP67 rating for extreme conditions
Built-in 3 VDC red ring illumination for low lit areas and connection identification
RoHS certified
Includes rubber washer for IP67 rating
Easily mounts in 13mm (1/2") hole with included shaft nut

Product Details

SPST Stainless Steel Waterproof Raised Push Button Latching Tamper Proof Switch

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications. The stainless steel body and push on/push off button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 12 VDC red light for locating in low lit areas and connection identification.

Specifications: • Light rating: 3 VDC • Switch rating: 36V 2A • Terminal rating: 3A 250 VAC • Switch total size without terminals: 29 mm L x 13 mm Dia. • Metal shaft size without button: 12 mm Dia. x 19 mm L • Button size: 7.6 mm Dia. x 1.5 mm H • Terminal size: 2 mm W x 4 mm L x 0.6 mm D
