      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover

      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover

      €12,95

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Zeige alle Schraubklemmen
      20A
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      12,95 € Nicht auf Lager
      • -5% Bestelle 4 für nur 12,30 € je Stück
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover
      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover

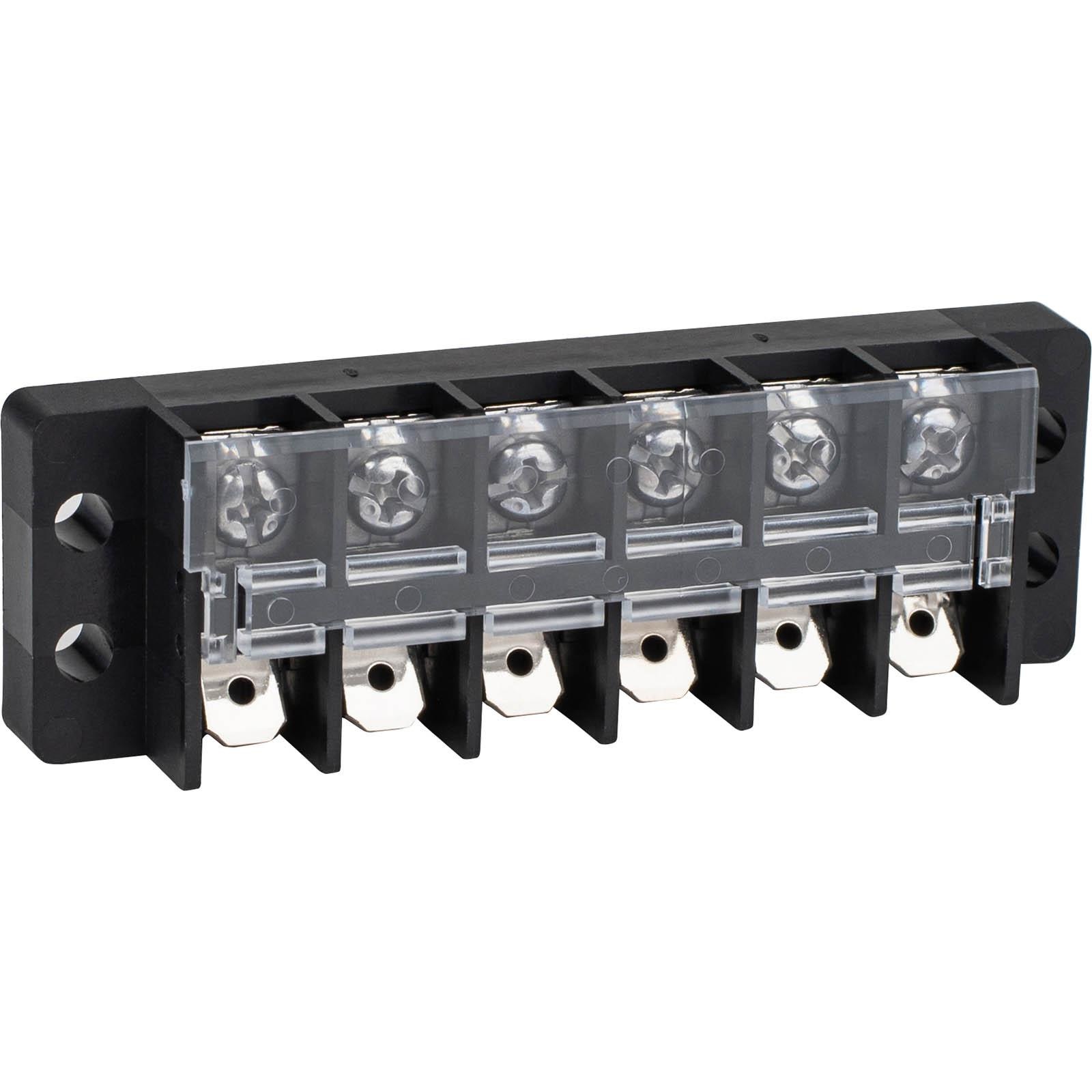

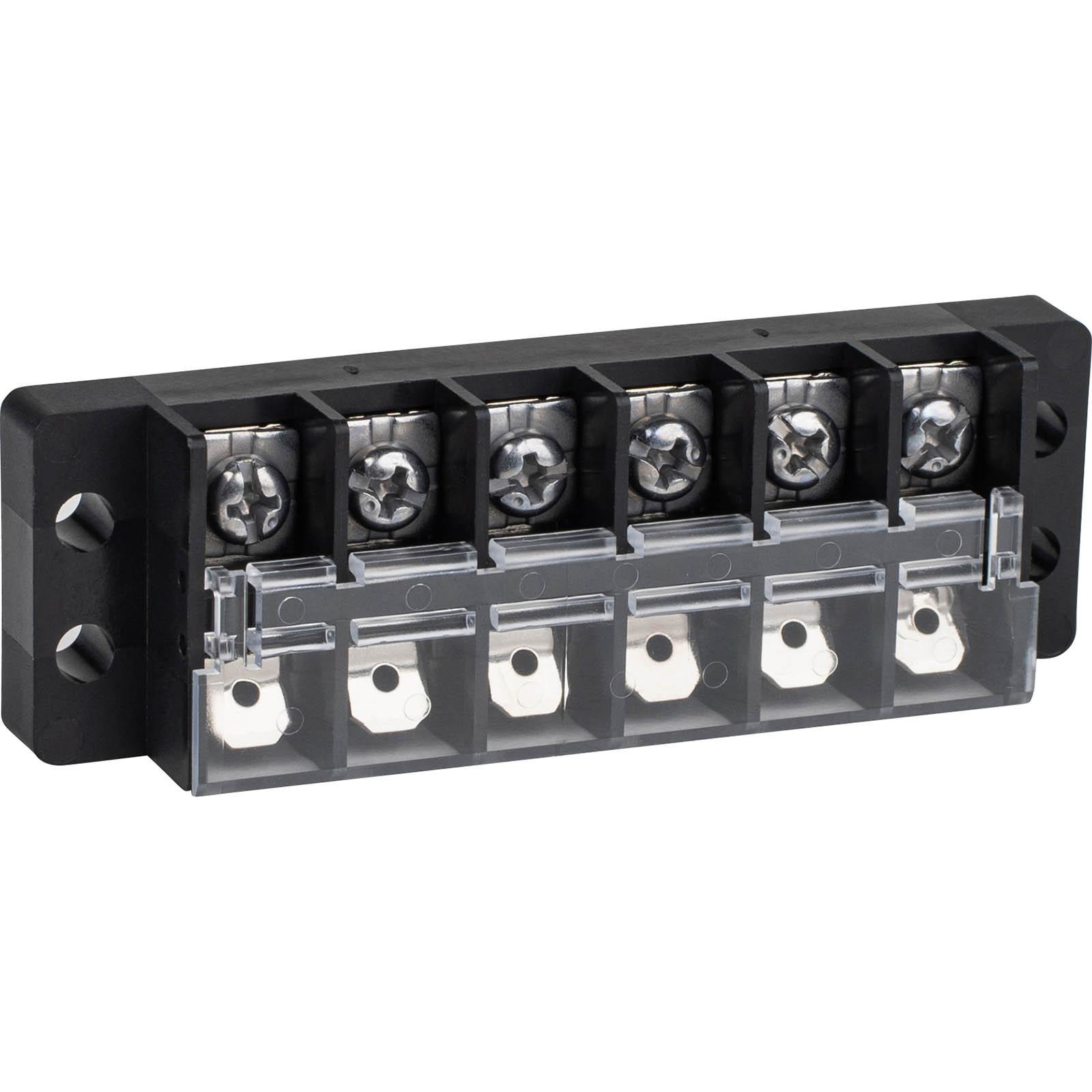

      Produktbeschreibung Terminal Strip 6-Pole 20A Half Screws / Half Male Terminals

      Terminal blocks provide a convenient means of connecting individual electrical wires without the use of a splice or having to physically join wire ends. This one has 0.25" wide quick disconnect spade terminals on one side for easy connect and disconnect when needed. The terminal block also comes with a clear plastic shield to cover half of the block.



      Highlights



      • The base is heavy duty PBT (UL94V-0) plastic for durability and safety
      • Zinc plated screws for moisture resistance
      • Includes a clear plastic cover to protect one side of the block terminals
      • Screw terminals accept fork/ring connectors up to 0.39" (9.8 mm) wide
      • Clamping action under the screw terminals keep bare wires from squirting out from under the screw
      • Common 0.25" quick disconnect male terminals for plug in connection



      Product Details



      Terminal Strip 6-Pole 20A Half Screws and Half Male Quick Disconnect Terminals with Flip-Up Cover

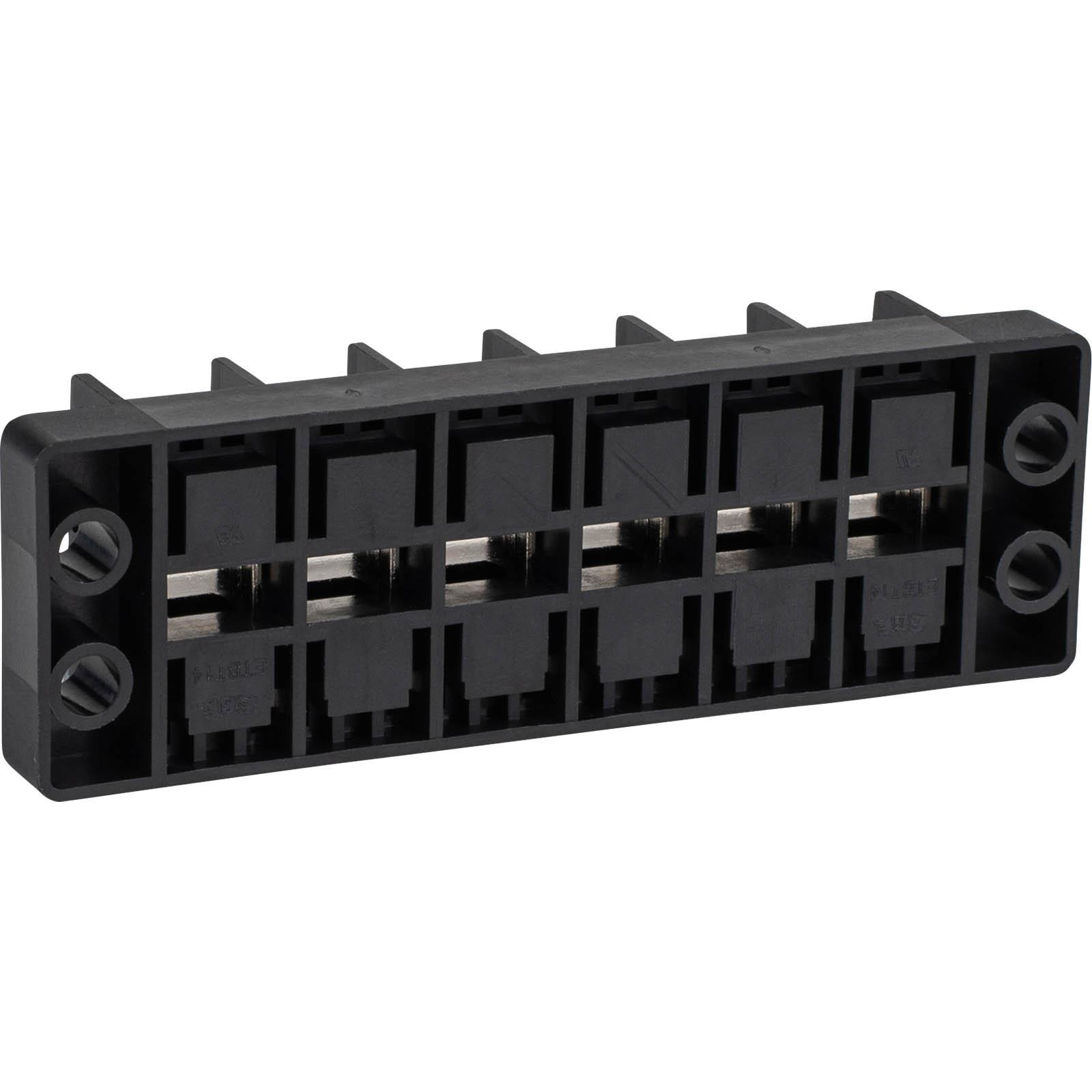

      Dual row, 6-pole solder type barrier strip with clear cover makes the perfect safe wiring junction. Made from heavy duty polybutylene terephthalate (UL94V-0) fire retardant plastic, enables this barrier strip to handle 20A of current and 300 VAC. Accepts 22-14 AWG stranded wire in the 11 mm pitch terminal. Operating temperature is -40°~284° F (-40°~140° C). Terminals are nickel over copper alloy and the M4 screws are zinc plated steel for moisture resistance. Total size is 3.346" W x 1.07" D x 0.65" H. Terminals measure 0.25" W x 0.04" D x 0.44" L. Mounting holes are 0.17" diameter and 3.031"/0.394" apart from center.

      Eigenschaften

      Artikelnummer:
      090-906
      EAN
      0848864071411
