      C30-4-358 1,2'' Ceramic Cell Hochtöner

      Accuton C30-4-358 1,2'' Ceramic Cell Hochtöner

      €539,95

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Accuton C30-4-358 1,2'' Ceramic Cell Hochtöner

      1 reviews
      5 von 5
      1 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Accuton
      Zeige alle Kalotten-Hochtöner
      1.2" | 4 Ω
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      446,24 €539,95 € Nicht auf Lager
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner
      C30-4-358 1,2'' Ceramic Cell Hochtöner

      Produktbeschreibung Accuton C30-4-358 Cell Hochtöner

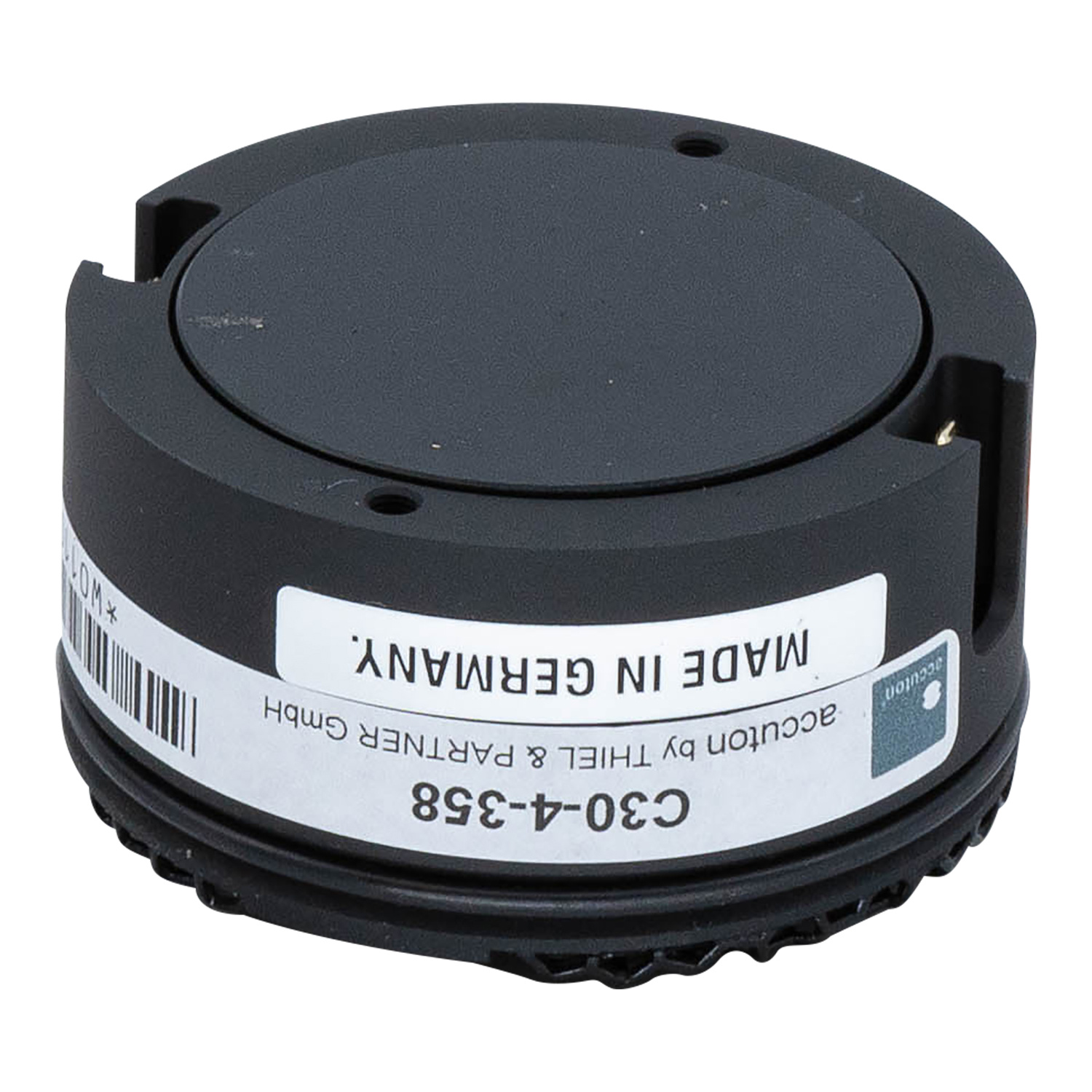

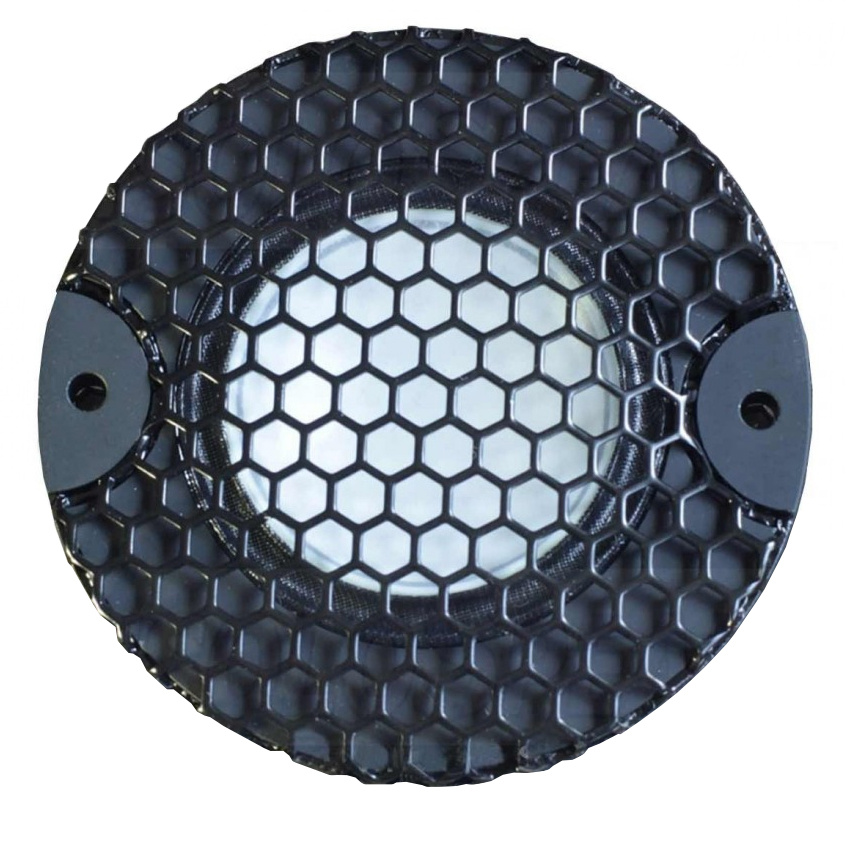

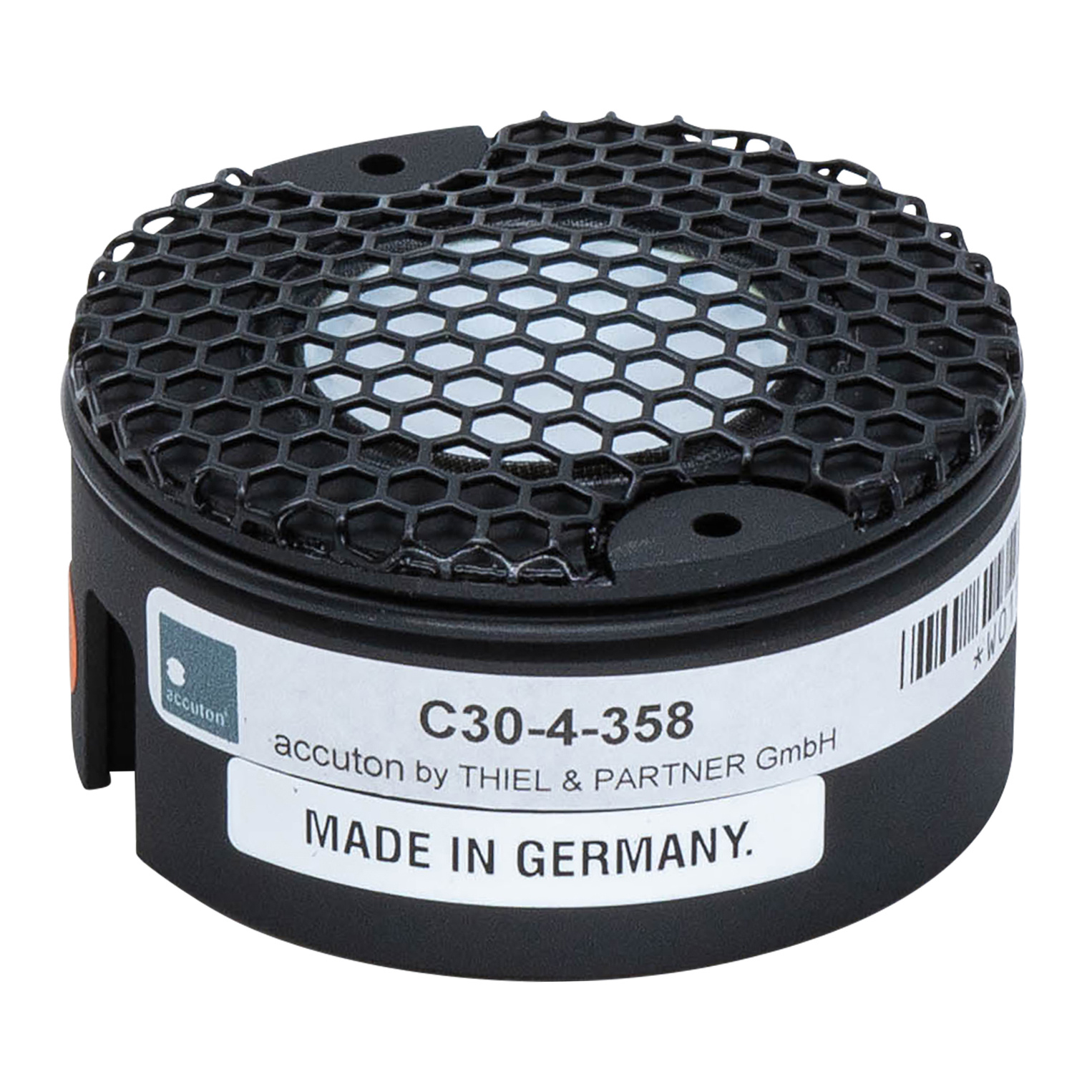

      The Accuton C30-4-358 is a tweeter with an ultra-hard 30mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs. Since the diaphragm's breakup frequency is above the audible range and well damped, no diaphragm cutouts are required.



      Highlights

      • 1.2 inch tweeter with ultra-hard ceramic dome
      • Proprietary clamping technique for easy mounting
      • No dome cutouts required
      • Part of the Cell Concept series of drivers from Accuton
      • Dual neodymium magnet



      Product Details

      Accuton C30-4-358 1.2'' Cell Tweeter 4 Ohm



      A unique FEA-optimized underhang design with vented titanium voice coil former and dual neodymium magnet ensures low energy storage, excellent heat transfer and high excursion for low compression and extremely low distortion with values around 0.07% at 2.83 V and 0.5% max at 110 dB. The redesigned soft fabric surround centers the moving parts with improved linearity. We recommend the Accuton C30-4-358 in an application above 1800 Hz.



      The C30-4-358 is part of the Cell Concept series of drivers from Accuton. The Cell Concept is a unique approach to driver design that uses a series of small cells to create a large diaphragm area. This allows for greater control over the diaphragm movement and results in improved sound quality

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      C30-4-358
      EAN
      8785256847518
      Hochtöner-Serie
      Ceramic Cell Tweeter
      Cone / Dome Diameter
      30 mm
      Belastbarkeit (QMW)
      120 Watt
      Impedanz (Z)
      4 Ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      93.5 dB
      Resonanzfrequenz (Fs)
      810 Hz
      Gleichstromwiderstand (Re)
      5.8 Ohm
      Voice Coil Inductance (Le)
      0.01 mH
      Mechanische Güte (Qms)
      2.54
      Electromagnetic Q (Qes)
      0.81
      Gesamtgüte (Qts)
      0.62
      Außendurchmesser
      57.6 mm
      Ausschnittdurchmesser
      58 mm
      Tiefe
      28 mm

      Mehr anzeigen
