Name: Audyn CO92/8.2/140 | 8,2 mH | 0,75 Ω | 5% | 15 AWG | Corobar Spule
Brand: Audyn
SKU: CO92/8.2/140
Price: 93.45 EUR
Availability: BackOrder

CO92/8.2/140 | 8,2 mH | 0,75 Ω | 5% | 15 AWG | Corobar Spule

77,23 €93,45 € Nicht auf Lager

Backorder

Wir versenden nach
Bald wieder auf Lager
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Audyn CO92/8.2/140 | 8,2 mH | 0,75 Ω | 5% | 15 AWG

A high-quality Corobar coil specifically designed for crossover components, featuring 8.2mH inductance, 0.75Ω resistance, and 5% tolerance.

Highlights

Inductance value of 8.2mH
Resistance level set at 0.75Ω
Offers 5% tolerance for accuracy
Utilization of 15 AWG wire for enhanced performance

Product details

Audyn CO92/8.2/140 | 8,2 mH | 0,75 Ω | 5% | 15 AWG | Corobar Coil

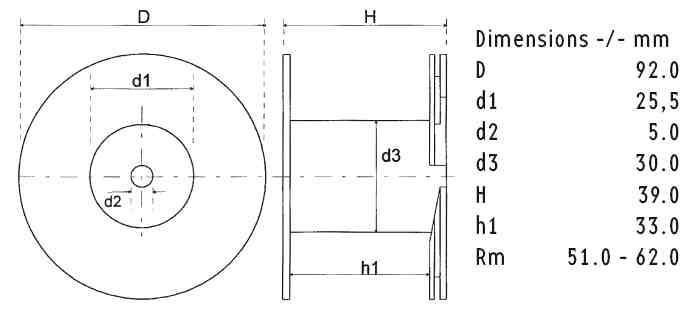

The Audyn CO92/8.2/140 Corobar Coil is a top-tier copper foil coil, specifically designed for crossover components, and is highly sought-after in the technology industry. It offers an inductance value of 8.2mH and a resistance level of 0.75Ω with a tolerance of 5% ensuring high accuracy. The product is equipped with a 15 AWG wire that boosts overall performance. In addition, the coil has a wire connection length of 10/40mm, a tinning length of 9mm, and is made from ABS spool body material. With a CU purity of more than 99.99%, this coil guarantees excellent performance and longevity. It's measured at a nominal temperature of 25 degrees Celsius and a frequency of 1kHz, ideal for various applications.

I.T. Intertechnik Artikelnummer: 1340952
