The CSS APR10 is a specialized passive radiator designed to elevate the bass performance of speaker enclosures. Unlike traditional ports, which can introduce unwanted noise, the APR10 provides an alternative solution. Its purpose is to enhance low-frequency response without compromising on sound quality. Whether you’re building a custom speaker or retrofitting an existing one, the APR10 offers flexibility in tuning and performance.
Highlights
- Effective Radiating Area (Sd): 320 cm²
- Mechanical Compliance (Cms): 0.48 mm/N
- Equivalent Volume (Vap): 67 Liters
- Moving Mass (Mmp): 66 grams
- Resonant Frequency (Fs): 28 Hz
- Maximum Excursion (Xmech): 26 mm
- Maximum Moving Mass: 1200 grams
- Minimum Resonant Frequency (with full 1200g): 6.7 Hz
Product details

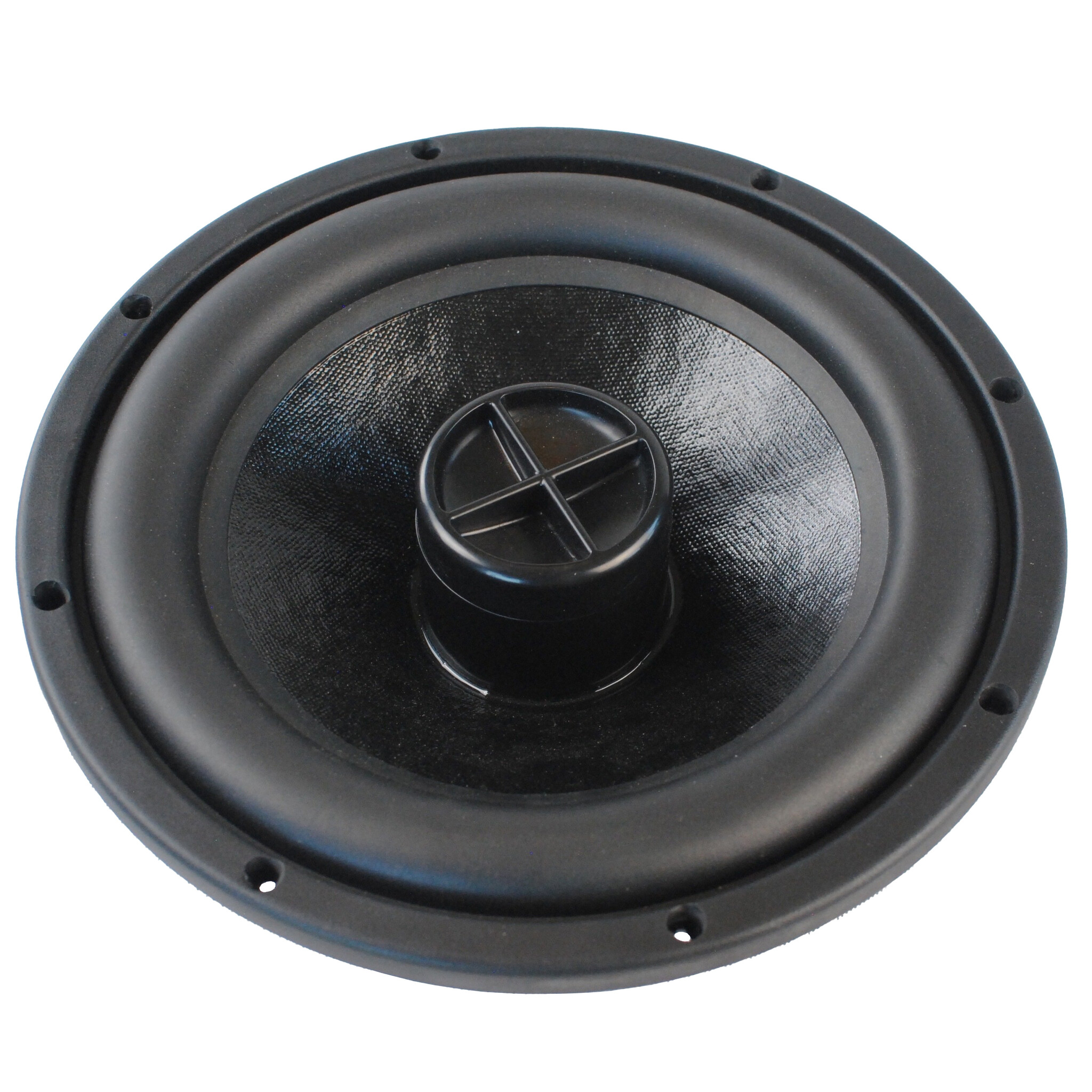

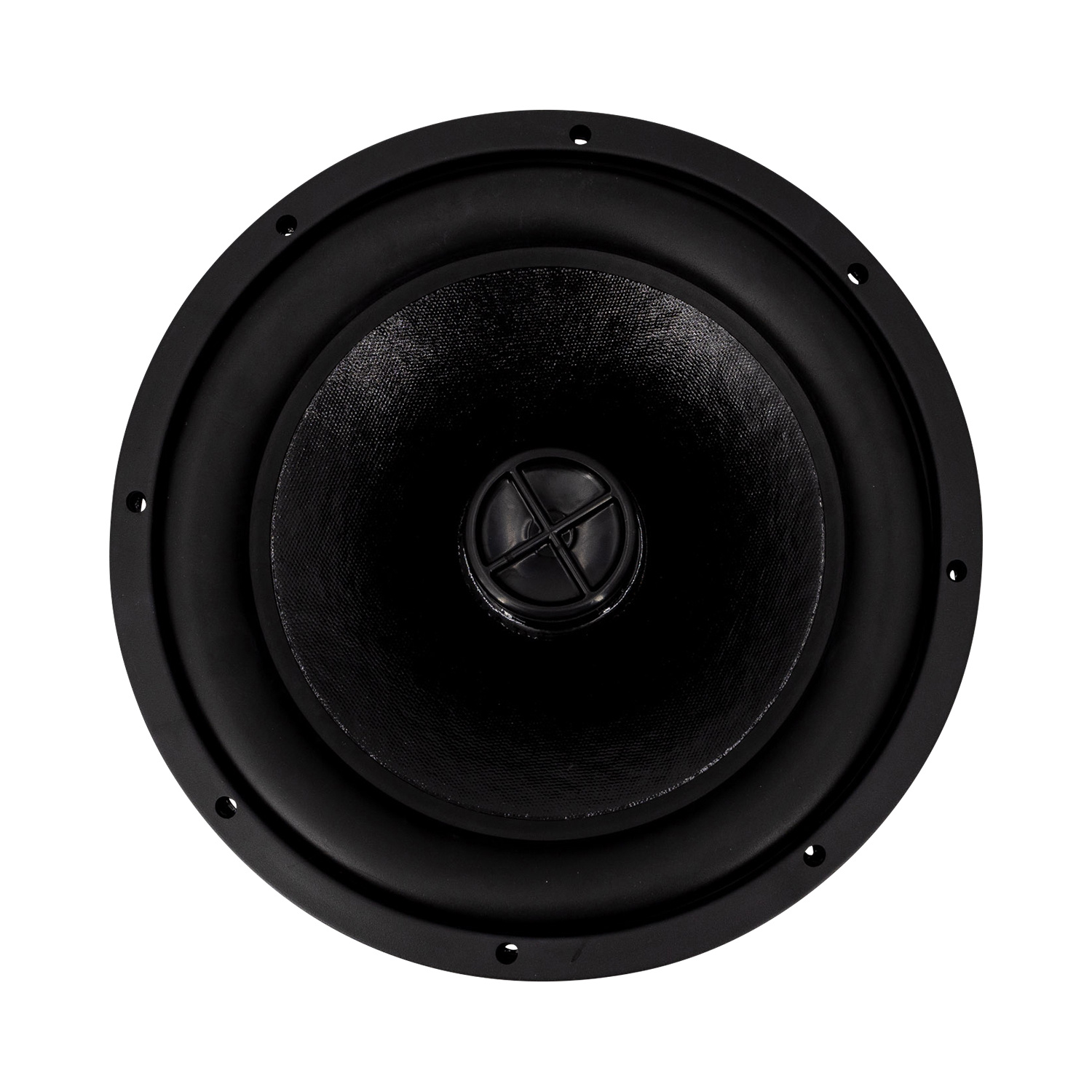

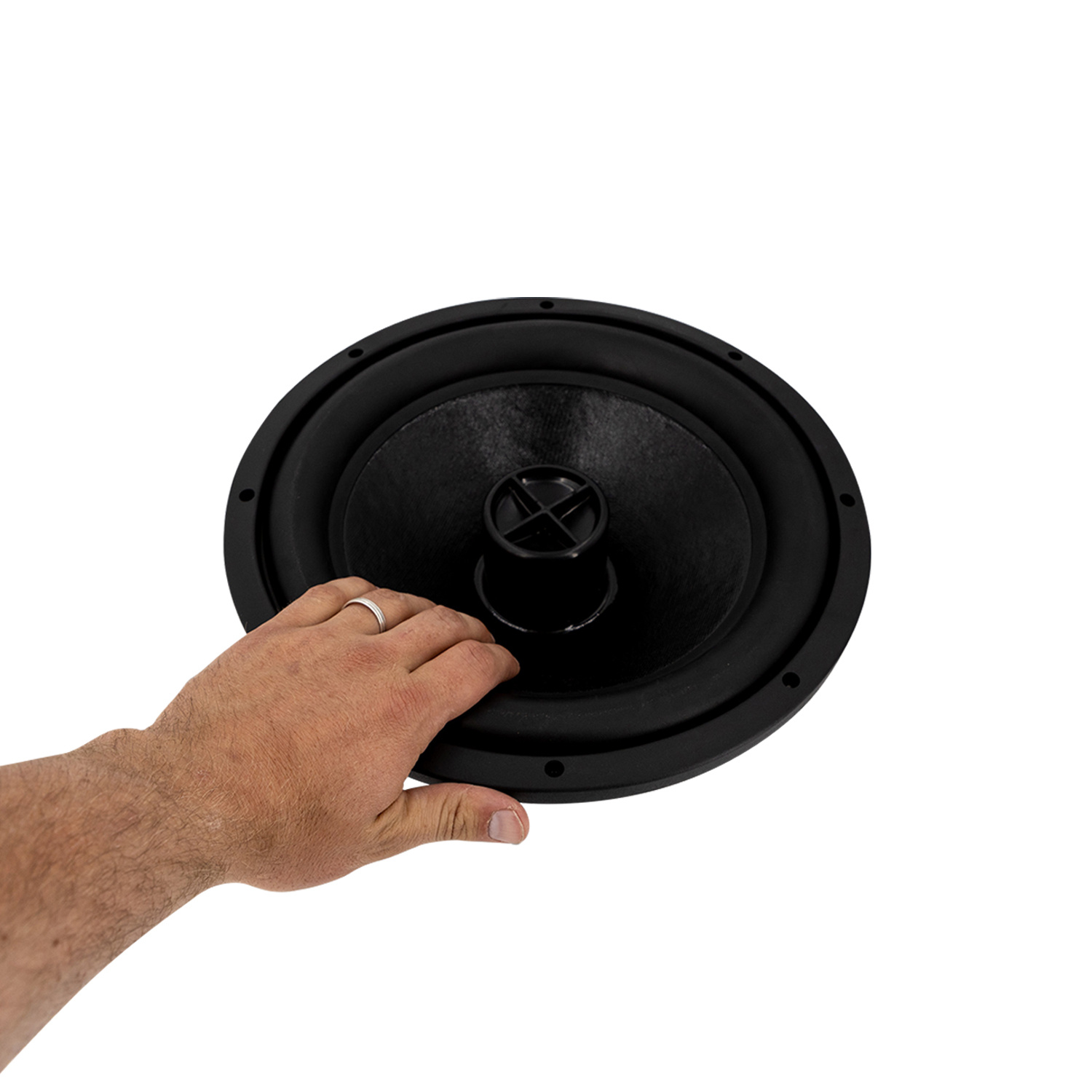

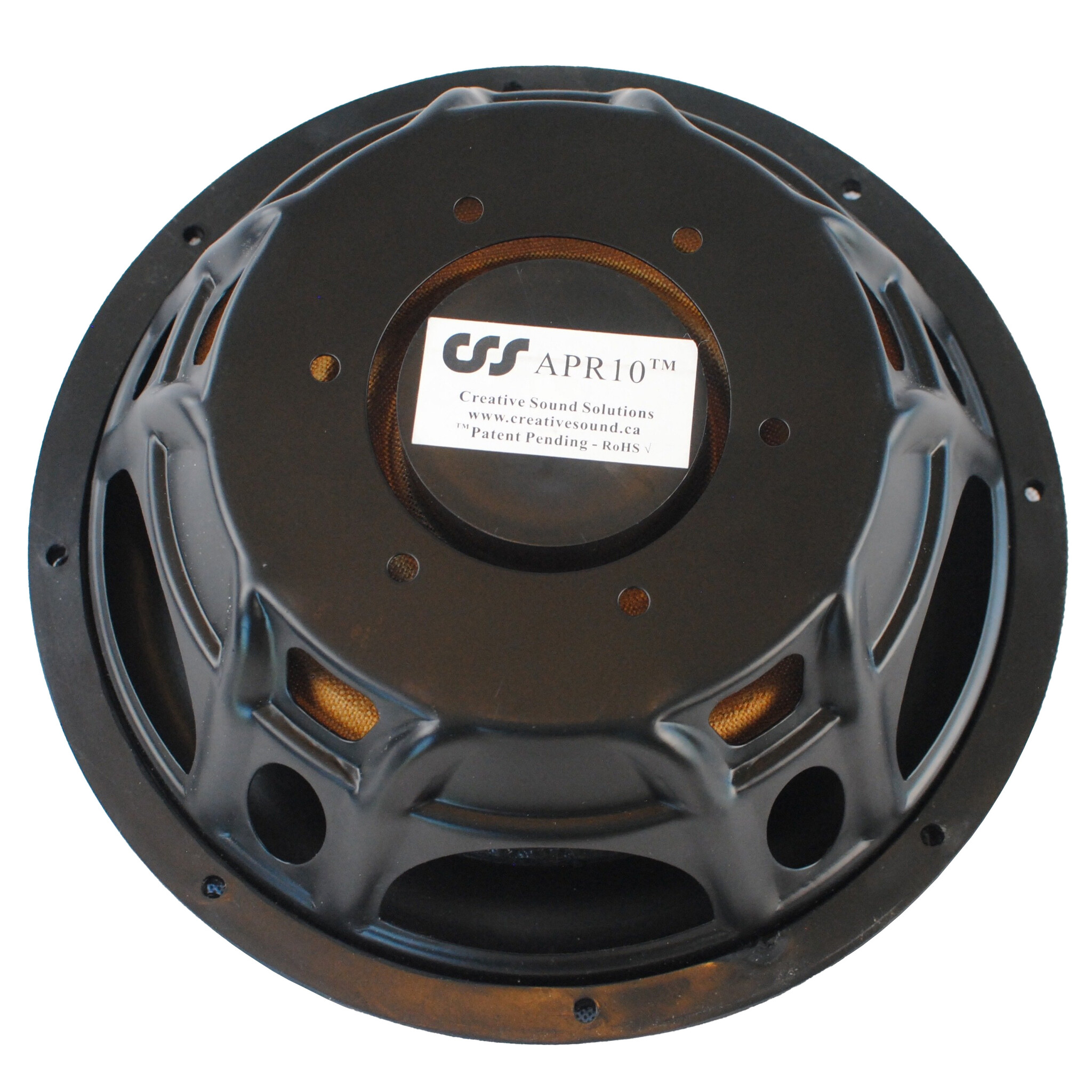

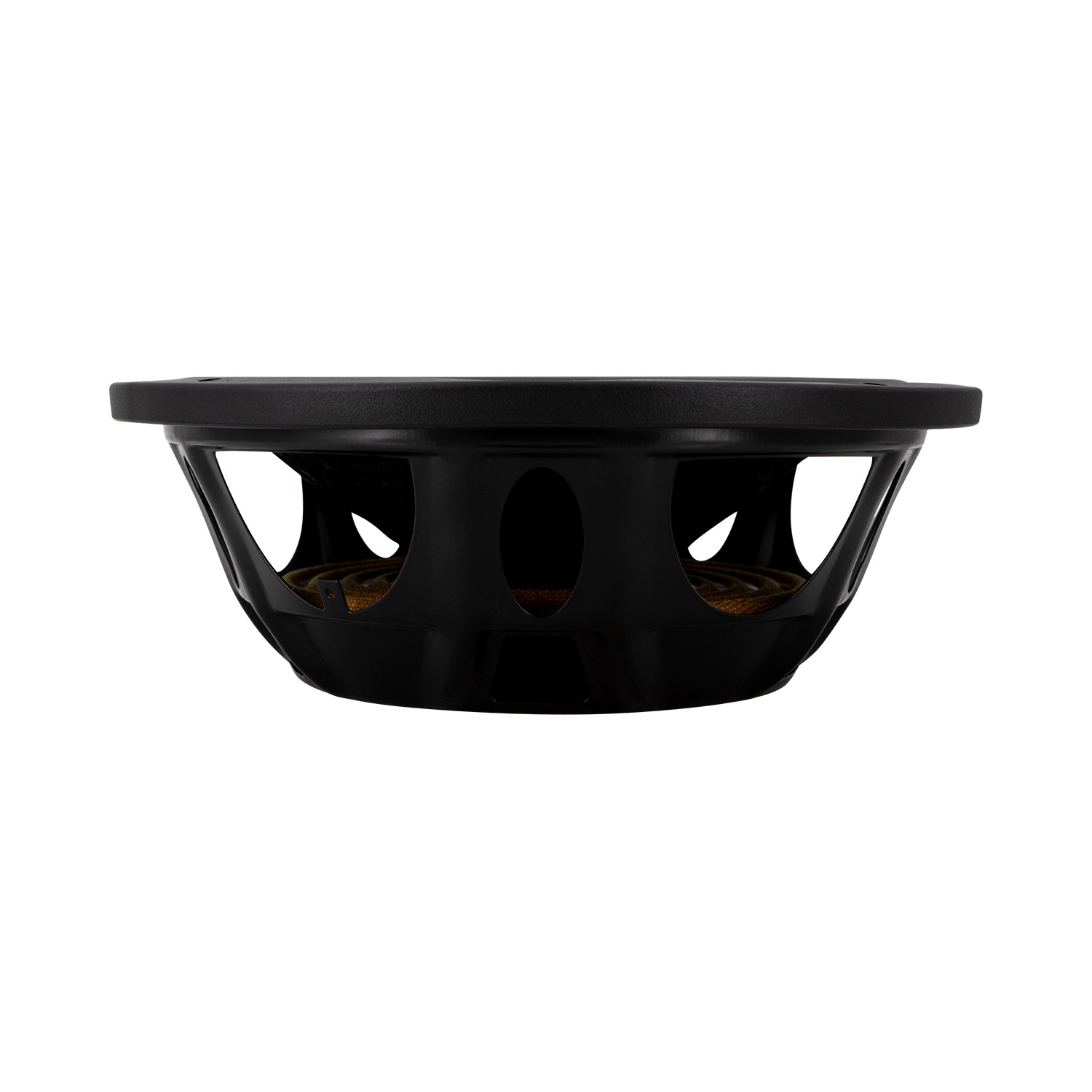

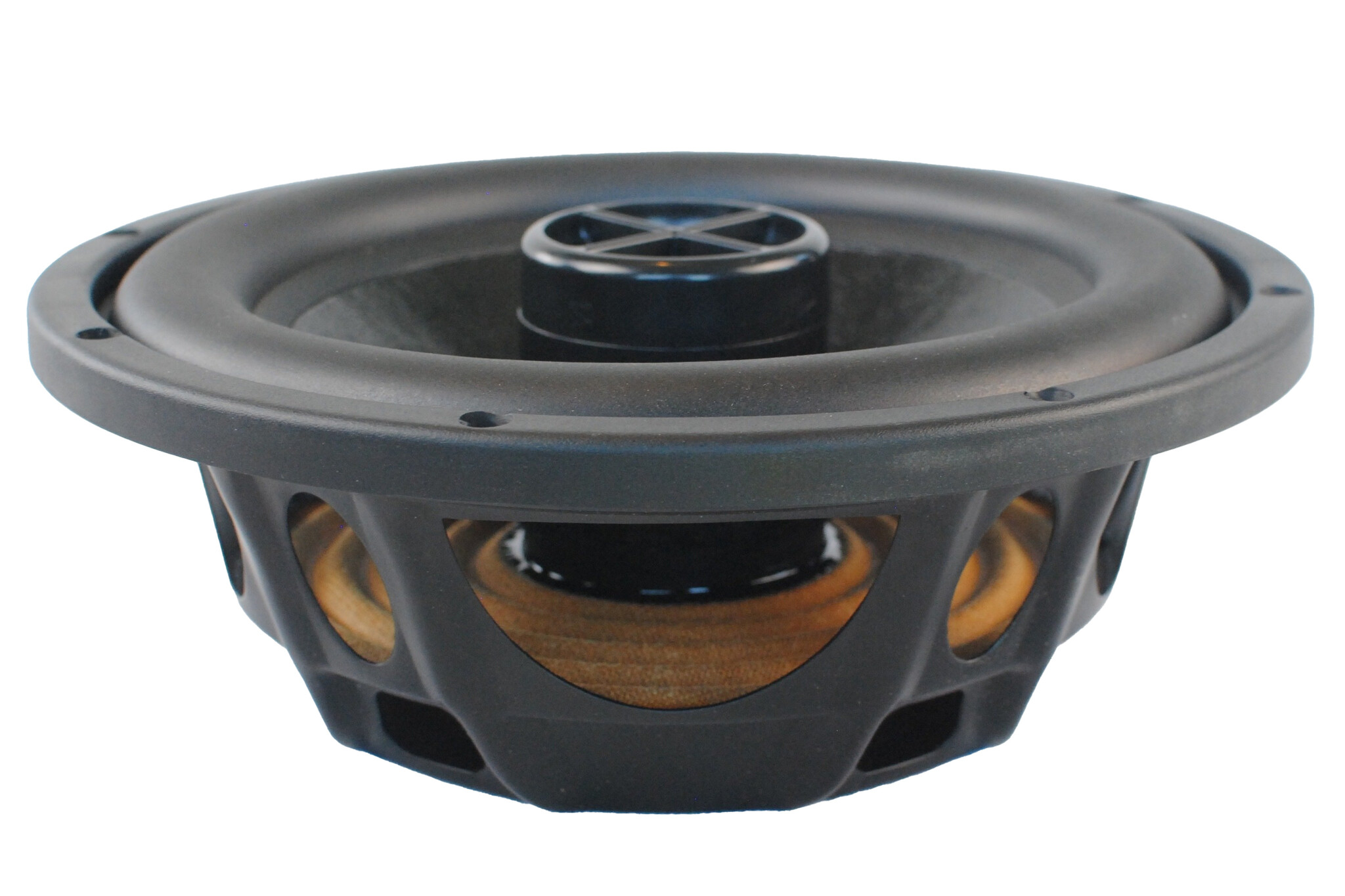

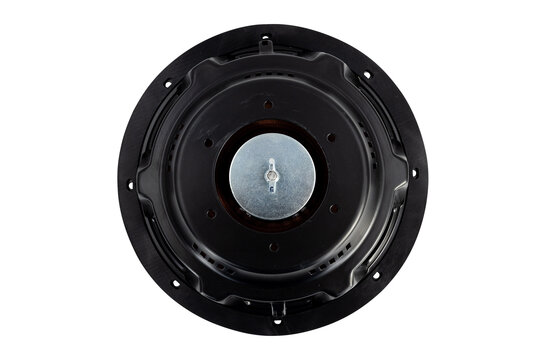

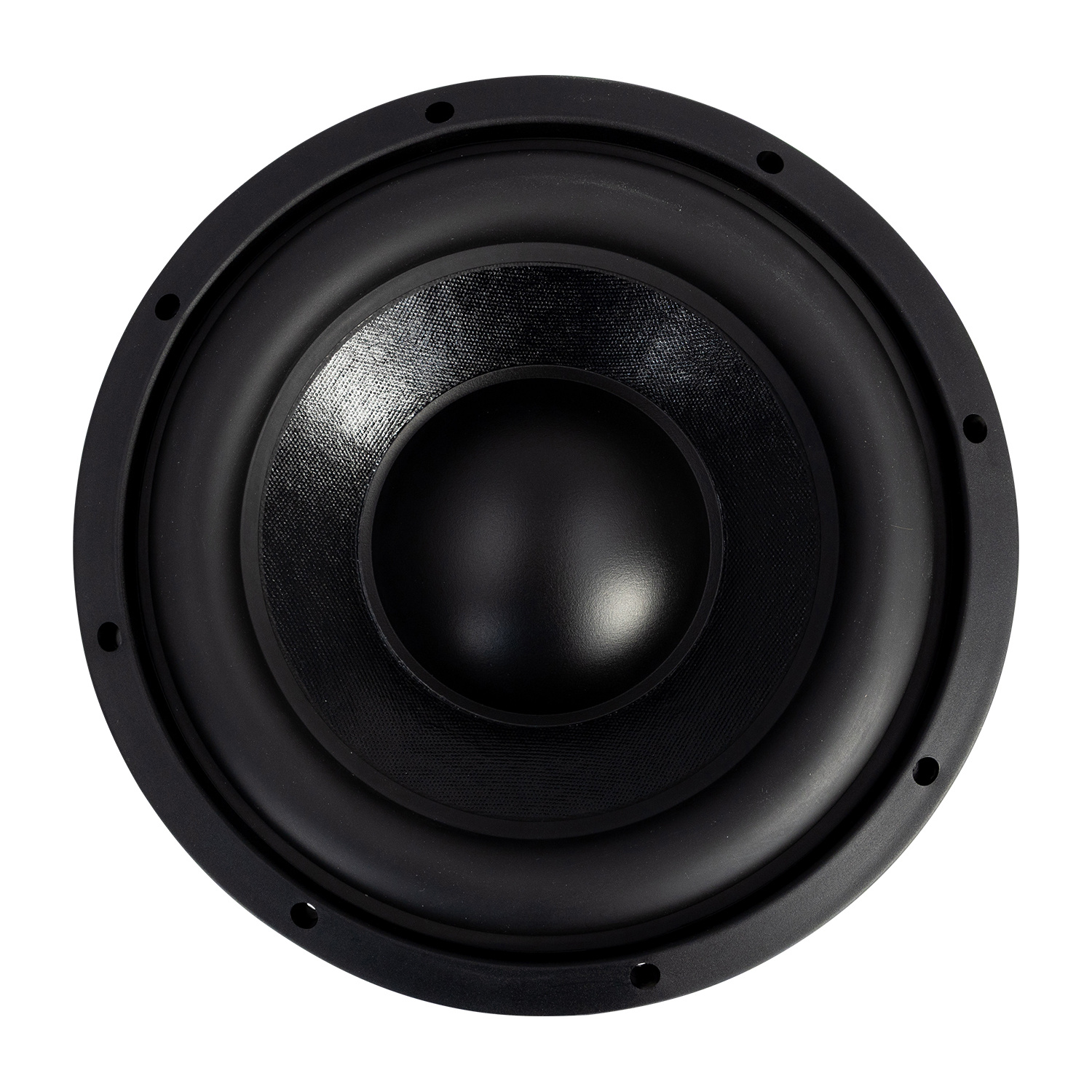

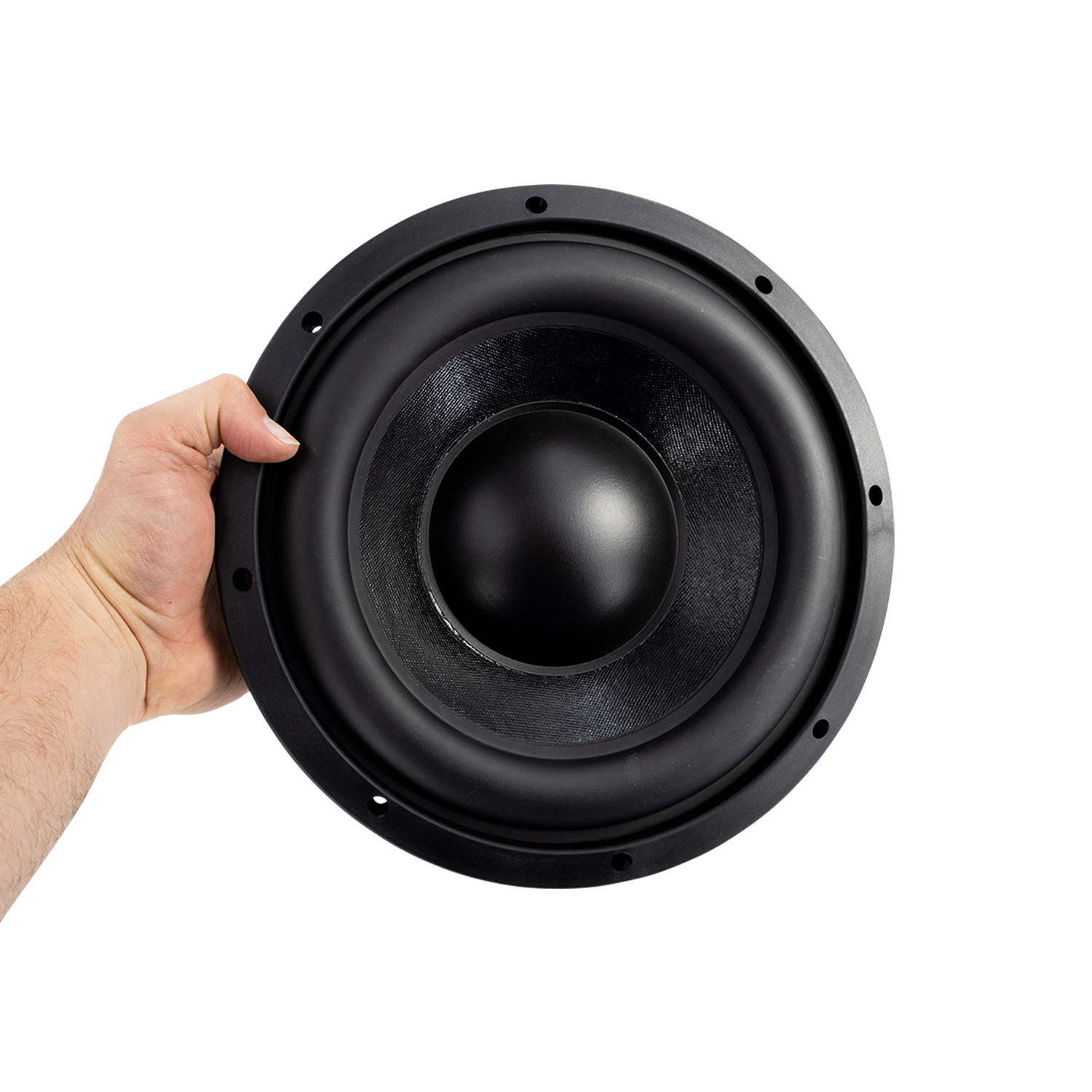

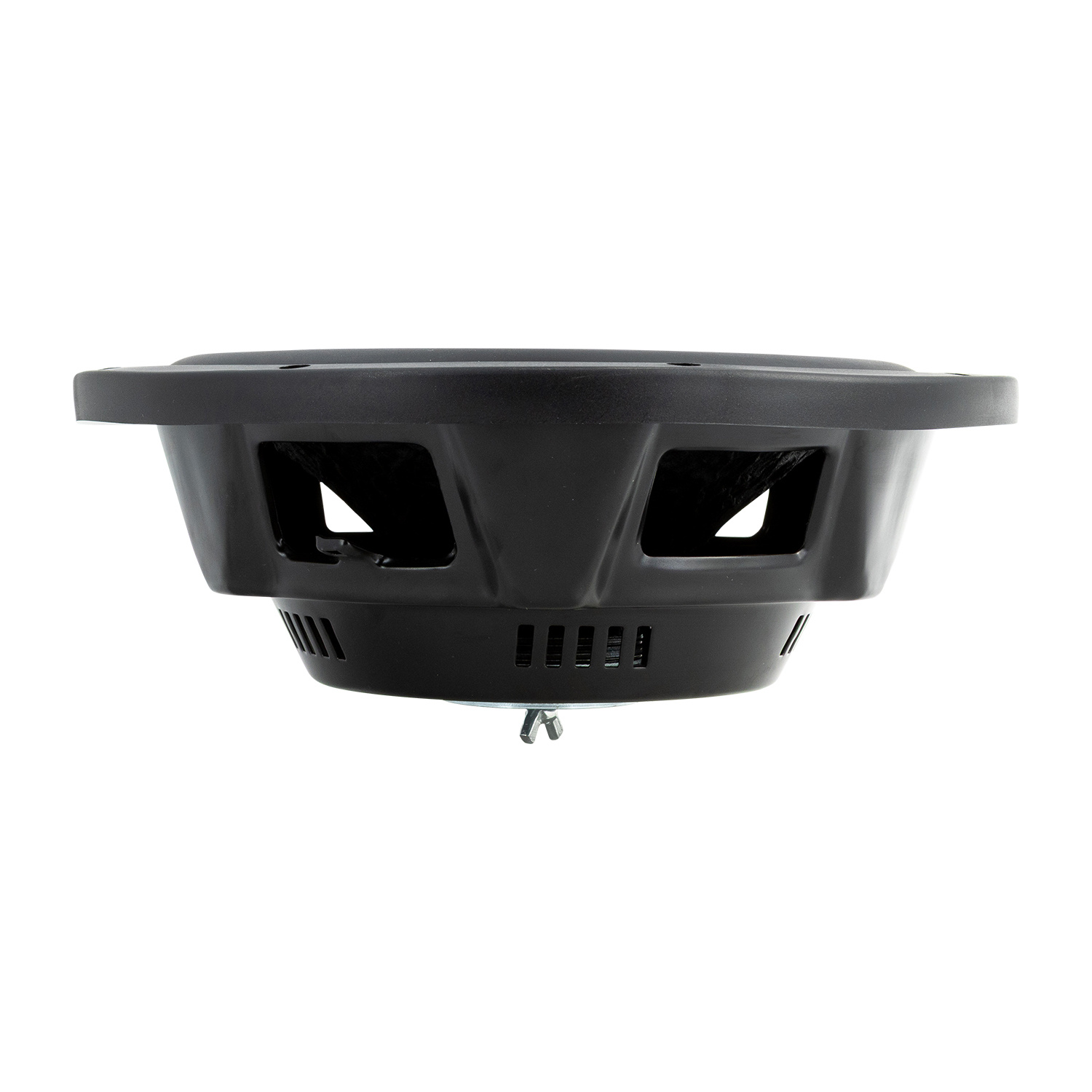

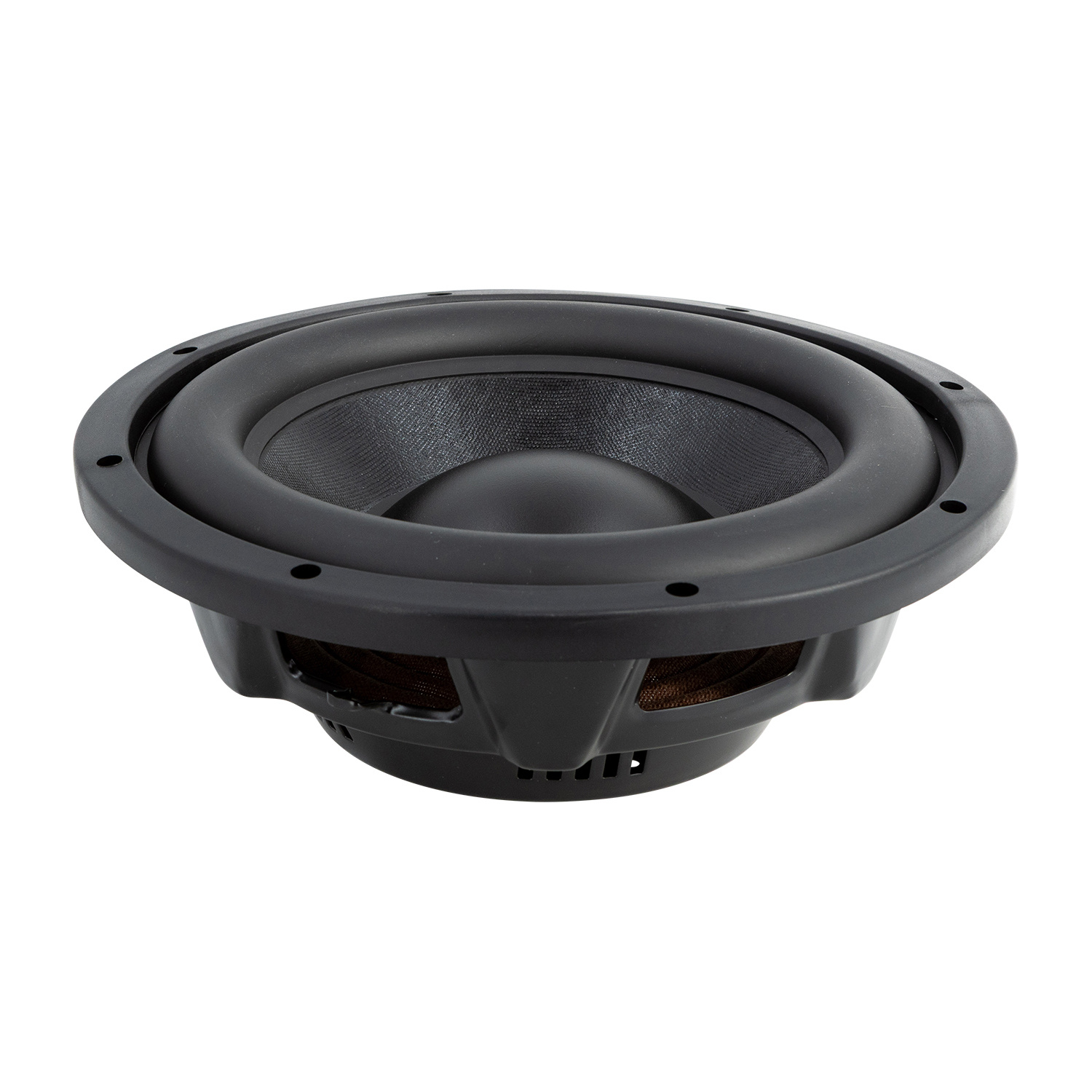

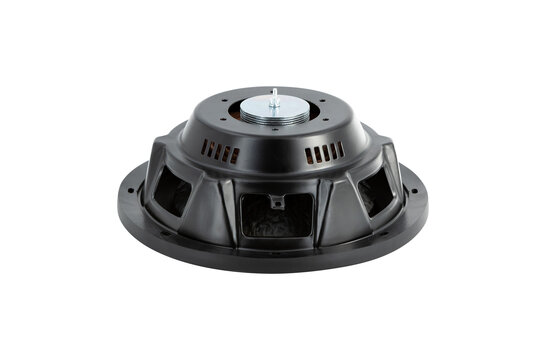

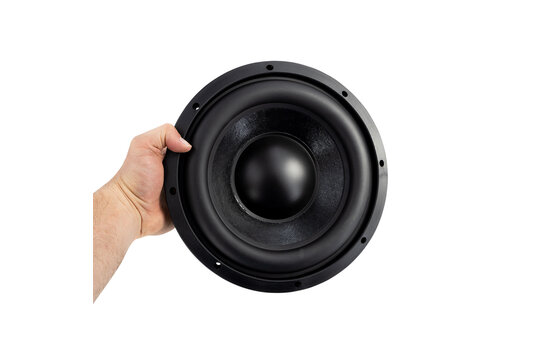

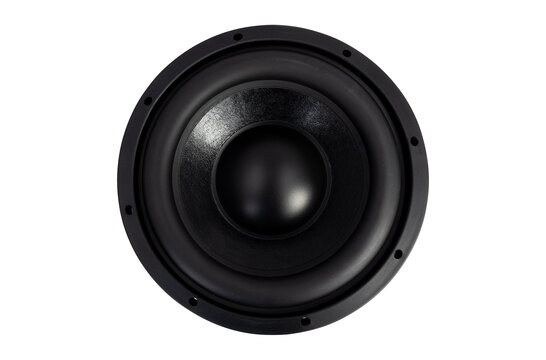

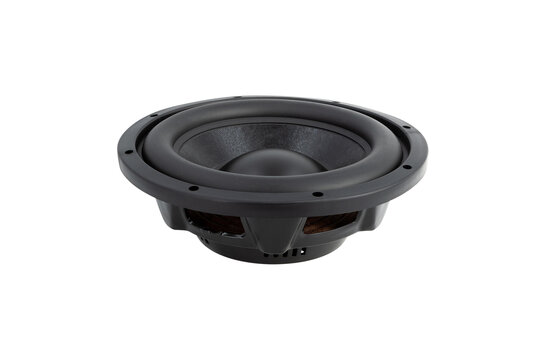

CSS APR10 Passive Radiator

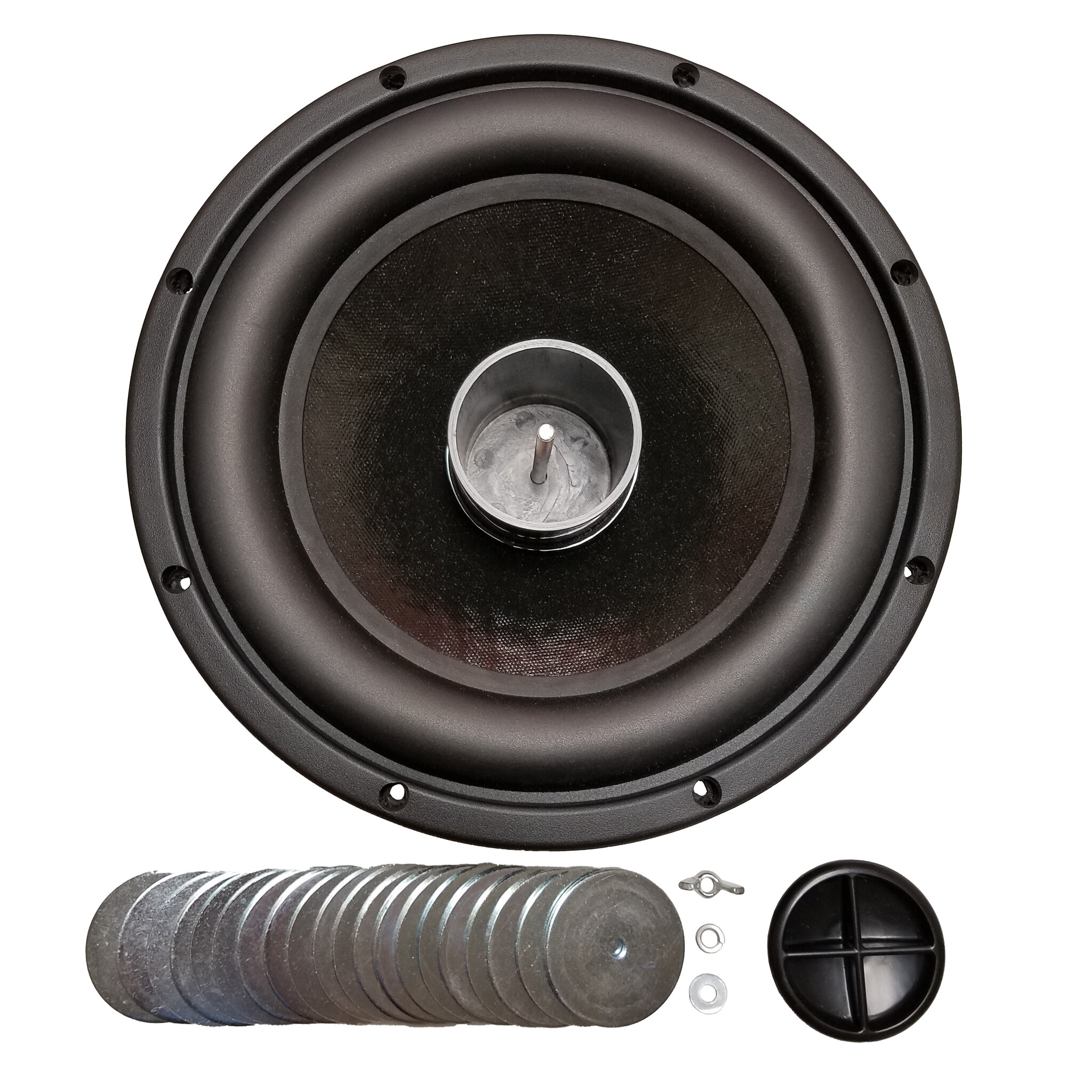

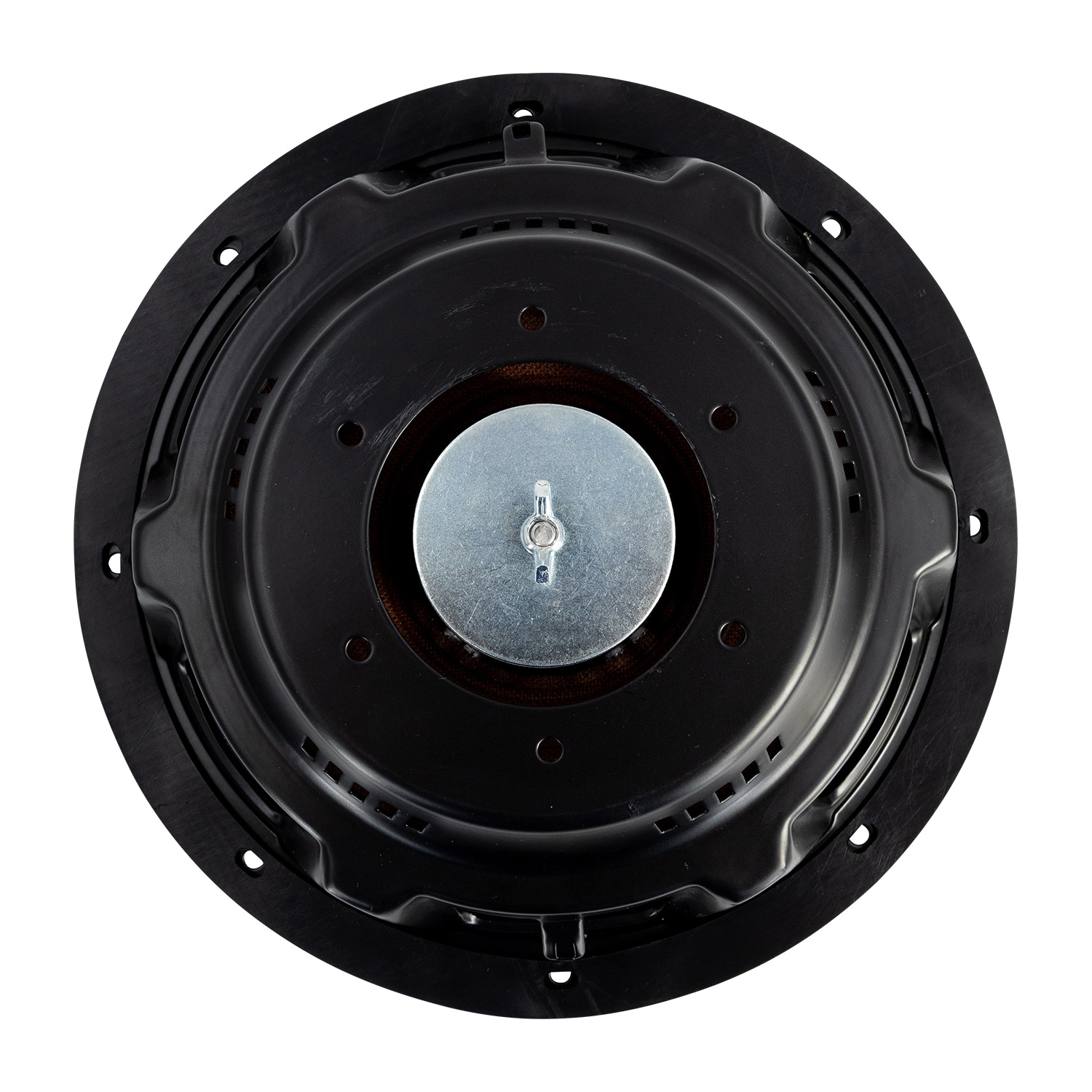

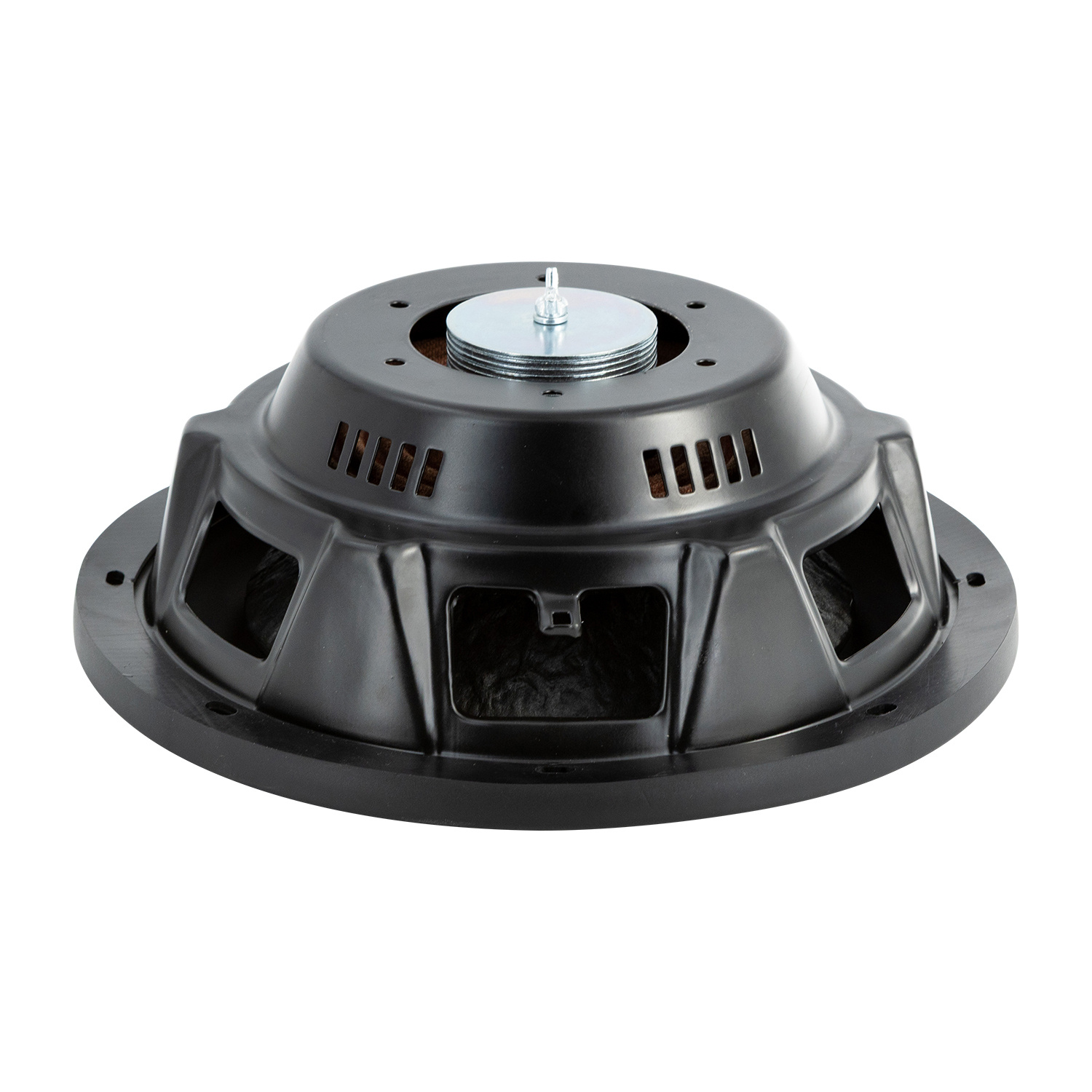

The CSS APR10 is a 10-inch passive radiator, a component used in subwoofer enclosures to enhance bass response. Unlike traditional speakers, passive radiators lack a motor and rely on the movement of air within the enclosure. This allows for a sealed enclosure design, which can provide tighter bass and a more compact size compared to ported enclosures. The APR10's low-loss construction ensures efficient vibration, while its patent-pending front mount system simplifies weight adjustment for optimal subwoofer tuning. This passive radiator is particularly well-suited for projects utilizing high-powered subwoofers thanks to its ample excursion capabilities.
