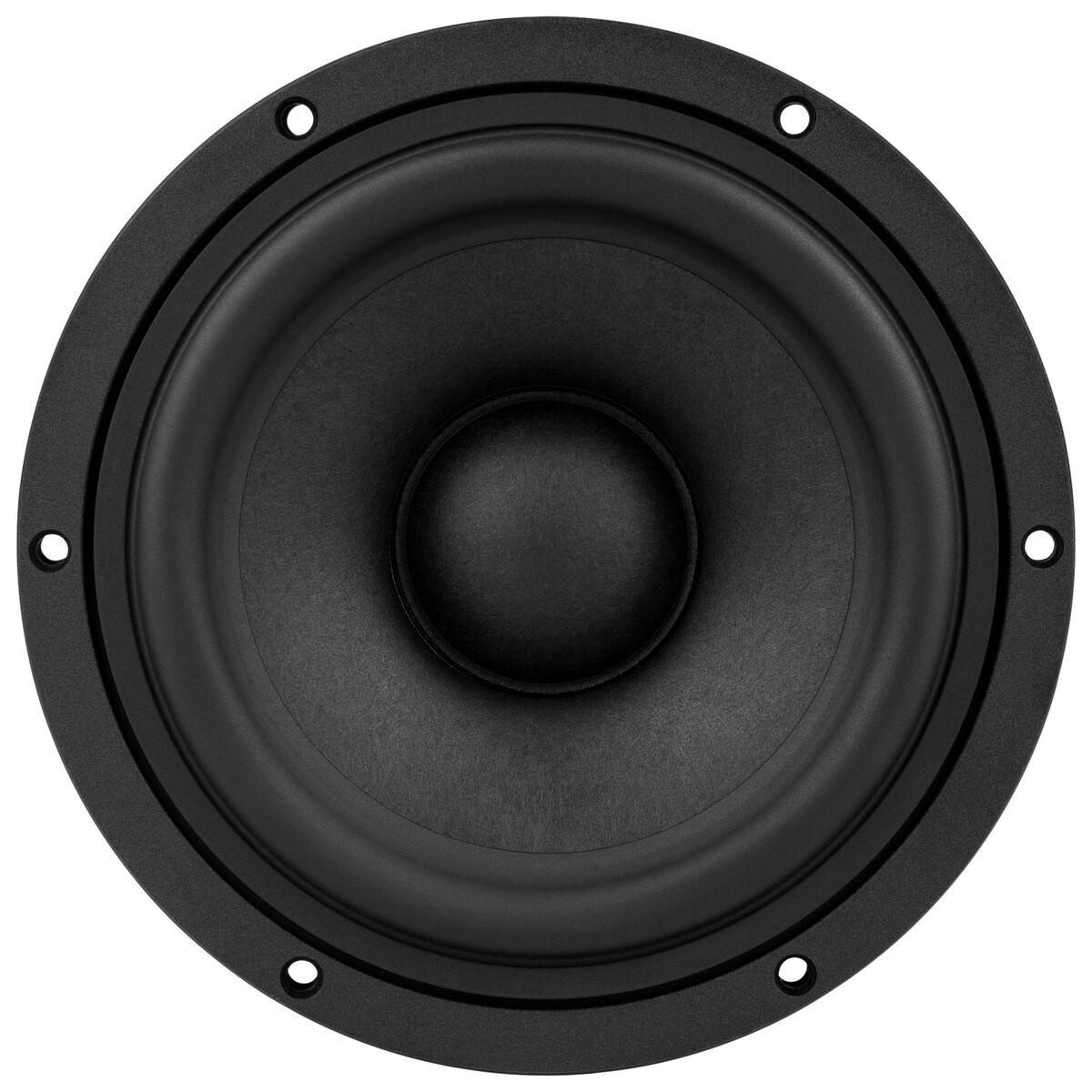

      Produktbeschreibung CSS LDW7 Tiefmitteltöner

      Aspiring speaker builders, take note! The CSS LDW7 is a 7-inch bass-midwoofer driver that punches above its weight, offering both clear midrange and impactful bass at an attractive price point. This versatility makes it a popular choice for a wide range of DIY speaker projects.



      Highlights

      • Paper and fiberglass cone blend: This unique cone material offers a good balance of stiffness and flexibility, resulting in smooth midrange reproduction and extended bass response.
      • Symmetrical motor structure: This design helps to minimize distortion and ensure accurate sound reproduction.
      • Low distortion: The LDW7 is known for its clean sound, even at high volumes.
      • High power handling: This driver can handle a significant amount of power, making it suitable for use in loudspeakers designed for powerful sound.
      • Vented or sealed enclosure options: The LDW7 performs well in both vented enclosures, which typically produce deeper bass, and sealed enclosures, which offer tighter bass and a more compact design.



      Product details

      CSS LDW7 Bass-midwoofer



      The LDW7's secret weapon lies in its unique cone material. By blending paper and fiberglass, the cone achieves a balance of stiffness and flexibility. This translates to smooth and detailed midrange reproduction while allowing for extended bass response, ensuring your music comes alive with rich detail. Additionally, the symmetrical motor structure minimizes distortion for accurate sound across the frequency spectrum.



      The LDW7 is no slouch when it comes to power handling either. It can accommodate significant wattage, making it ideal for speakers designed to deliver powerful audio. Another plus is its adaptability to enclosure types. The LDW7 performs well in vented enclosures, known for producing deeper bass, or sealed enclosures, favored for tighter bass and a space-saving design. This flexibility allows you to tailor the speaker's sound characteristics to your specific preferences and project requirements.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      LDW7
      EAN
      0848864053738
      Nenndurchmesser
      7"
      Belastbarkeit (QMW)
      80 Watts
      Belastbarkeit (max)
      200 Watts
      Impedanz (Z)
      Empfindlichkeit (SPL bei 1m / 2,83V)
      86dB
      Frequenzgang
      30 to 4,500Hz
      Schwingspulendurchmesser
      1.5"
      Gleichstromwiderstand (Re)
      6.4Ω
      Schwingspuleninduktion (Le)
      0.17mH
      Resonanzfrequenz (Fs)
      30Hz
      Mechanische Güte (Qms)
      9
      Elektrische Güte (Qes)
      0.39
      Gesamtgüte (Qts)
      0.37
      Bewegliche Masse (Mms)
      21.9g
      Nachgiebigkeit der Aufhängung (Cms)
      1.3mm/N
      Membranfläche (Sd)
      131cm²
      Kraftfaktor (BL)
      8.2T·m
      Äquivalentvolumen (Vas)
      30,86 Liter
      Maximale Auslenkung (Xmax)
      5.5mm
      Cone / Diaphragm Material
      Paper / Glass Fiber
      Sicke-Material
      Rubber
      Schwingspulenformmaterial
      Fiberglass
      Korb- / Rahmenmaterial
      Cast Aluminum
      Magnetmaterial
      Ferrite
      Außendurchmesser
      7.166"
      Gesamttiefe
      3.23"
      Ausschnittdurchmesser
      6.02"
      Bolt Circle Diameter
      6.67
      # Befestigungsbohrungen
      6
      Geschlossenes Volumen
      8,5 Liter
      Geschlossenes F3
      64.4Hz
      Bassreflex Volumen
      19,8 Liter
      Bassreflex F3
      35.9Hz
