Name: Dayton Audio KABM-30M 1 x 30W Bluetooth 5.0 Verstärkerplatinemit EQ Programing Port
Brand: Dayton Audio
SKU: KABM-30M
Price: 34.95 EUR
Availability: InStock

1 x 30 W

28,88 €34,95 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Fünf Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Dayton Audio KABM-30M Verstärkerplatine

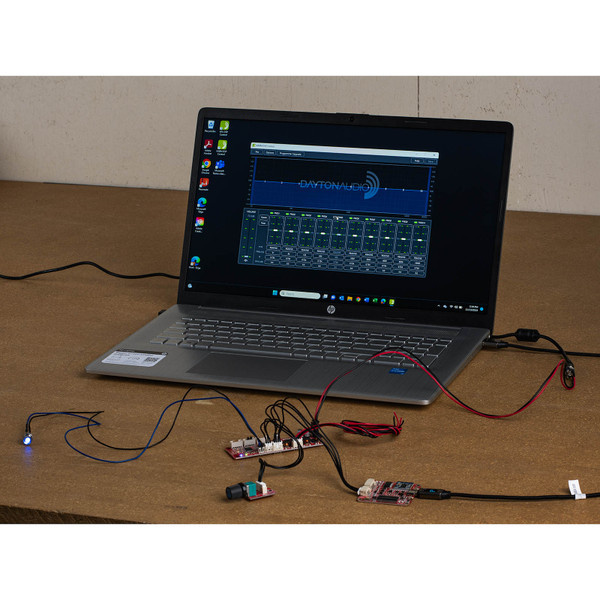

Are you looking for a compact and versatile audio solution for your next DIY audio project? Look no further than the KABM-30M! This tiny Bluetooth 5.0 amplifier board, just slightly larger than a stick of gum, is perfect for portable speaker builds. Preprogram the sound output to match the cabinet and driver size with the KPX programmer (sold separately) and free KABM software.

Highlights

Add programmable sound customization with the free KABM software via the KPX programmer board (sold separately)
Plug-N-Play JST-PH and Molex Mini-Fit Jr wire harnesses make installation quick and simple
Bluetooth 5.0 built directly into the board -- no need for a separate module
Small footprint slightly larger than a stick of gum
SNR 91 dB for crystal clean sound reproduction
Includes accessories for full functionality (just add power and speakers)

Product Details

Dayton Audio KABM-30M 1 x 30W Bluetooth 5.0 Amp Board with EQ Programing Port

Easy to use Bluetooth 5.0 and amplification

The Dayton Audio KABM-30 Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With an output of 1 x 30 watts, there is more than enough power to drive a portable speaker, yet the board is small enough to integrate into nearly any project.

High Quality Audio Performance

The Dayton Audio KABM-30M Bluetooth Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient Class D amplifier chip. The chip operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.

Integrated Bluetooth

Unlike other amplifier boards, the Dayton Audio KABM-30M includes a built-in Bluetooth 5.0 module with DSP programing option with KPX board (sold separately). The advantage of Bluetooth 5.0 is its low power consumption which prolongs the playtime of battery powered builds. High receive sensitivity with RF power up to 9 dBm and -90 dBm, and on board antenna insure stable wireless connectivity up to 15m (50ft.) On board external antenna jack enables the KABM board to be mounted in a metal enclosure with the included external antenna or a short rubber antenna kit (sold separately). Designed and built for Bluetooth demonstration purposes, this fully functioning module provides a turn-key approach to Bluetooth certification for consumer goods. If the application of this board is for the hobbyist or industrial purposes then nothing is required to enjoy the full convenience of pairing and streaming high quality Bluetooth audio. The KABM-30M is also CE and FCC ready for certification purposes.

Easy Installation

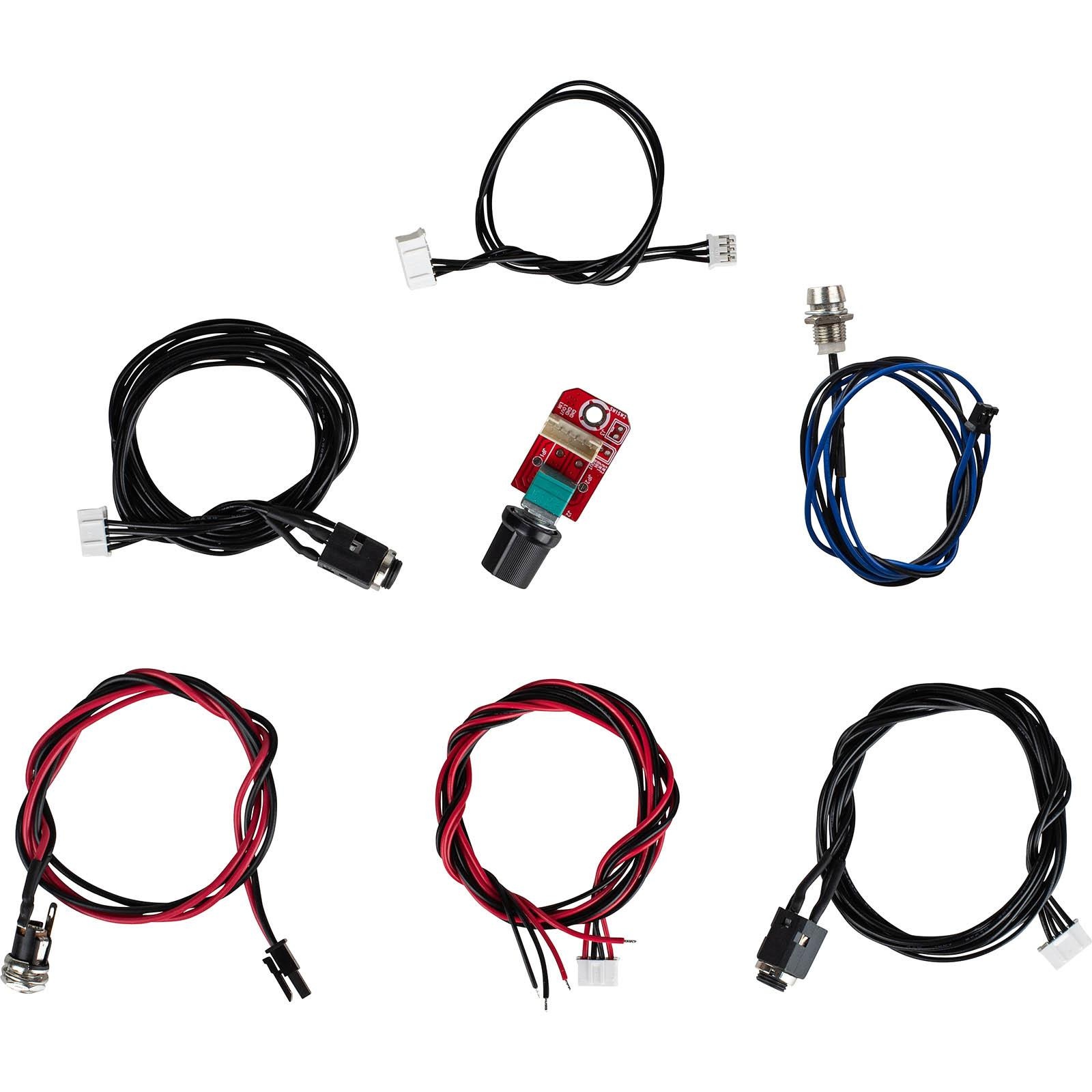

Due to the overall audio performance and built-in Bluetooth with DSP Programing option, this amp board has almost endless application possibilities. Included with the KABM-30M are two wire harnesses: one for DC power and the other for connecting to a speaker. For many users, these cables are all that is needed to complete a project. Since the KABM series includes all the wiring harnesses for additional functions it speeds-up the installation process and creates confidence for beginning builders because there's no need to solder or troubleshoot loose and unstable connections on the board. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below.

Endless Applications

Due to the overall audio performance and built-in Bluetooth with DSP Programing option, this amp board has almost endless application possibilities. From hobbyists and DIYers to manufacturers and installation organizations this Bluetooth amp board has immense flexibility. Even if you bypass the Bluetooth feature, this amplifier board integrates easily into any job because of its array of included wiring harnesses.
