Name: Intertechnik CO30/015/090 | 0,15 mH | 0,12 Ω | 5% | 19 AWG | Choke Spule
Brand: Intertechnik
SKU: CO30/015/090
Price: 20.45 EUR
Availability: InStock

CO30/015/090 | 0,15 mH | 0,12 Ω | 5% | 19 AWG | Choke Spule

16,90 €20,45 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, morgen versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik CO30/015/090 | 0,15 mH | 0,12 Ω | 5% | 19 AWG

A high-quality choke coil, ideal for crossover components.

Highlights

Superior CU purity of more than 99.99%
Thermoplastic insulation for enhanced durability
Outstanding inductance value of 0.15mH
Impressive resistance of 0.12Ω

Product details

I.T. Intertechnik CO30/015/090 | 0,15 mH | 0,12 Ω | 5% | 19 AWG | Choke Coil

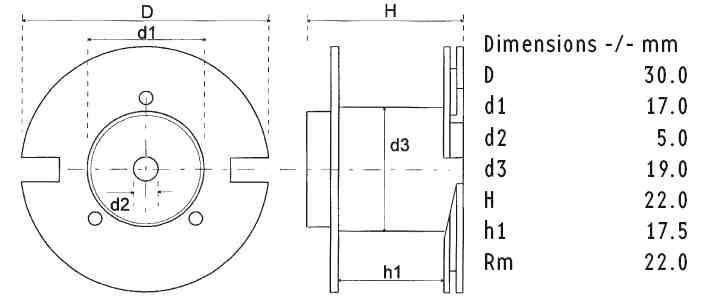

This is the I.T. Intertechnik CO30/015/090 Choke Coil with an inductance value of 0.15mH and a resistance of 0.12Ω. It is perfect for use in crossover components and comes with a capacitance tolerance of 5%. The coil features superior copper purity of over 99.99%, ensuring optimal performance. The choke coil comes with a 50mm wire connection length and a 9mm tinning length. The coil body is made of durable polycarbonate which can withstand temperatures ranging from -90 to 135 degrees Celsius. The inductance measurement value is nominal at 25 degrees Celsius and 1kHz. It is marked by a 19 AWG wire size and offers a low inductance tolerance of -3%, ensuring precise and reliable performance.

I.T. Intertechnik Artikelnummer: 1500092
