Name: Intertechnik CO30/039/090 | 0,39 mH | 0,20 Ω | 5% | 19 AWG | Choke Spule
Brand: Intertechnik
SKU: CO30/039/090
Price: 22.45 EUR
Availability: InStock

CO30/039/090 | 0,39 mH | 0,20 Ω | 5% | 19 AWG | Choke Spule

18,55 €22,45 € 2 Auf Lager

Wir versenden nach
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik CO30/039/090 | 0,39 mH | 0,20 Ω | 5% | 19 AWG

The I.T. Intertechnik CO30/039/090 is a high-quality Choke Coil designed for superior performance.

Highlights

Offers a nominal inductance of 0.39 mH
Features a resistance of 0.20 Ω
5% capacitance tolerance for accurate performance
Manufactured with 19 AWG copper wire for improved conductivity

Product details

I.T. Intertechnik CO30/039/090 | 0,39 mH | 0,20 Ω | 5% | 19 AWG | Choke Coil

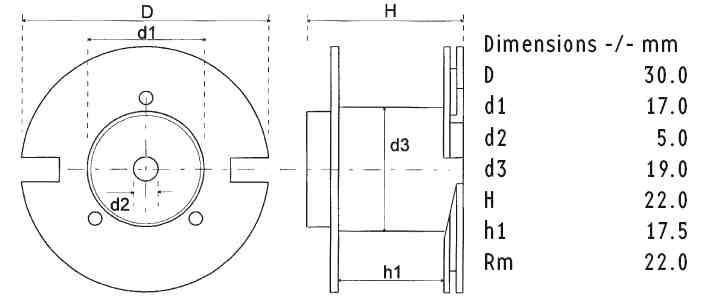

The I.T. Intertechnik CO30/039/090 Choke Coil is a state-of-the-art component ideal for crossover circuitry. Boasting an inductance of 0.39 mH and a resistance of 0.20 Ω, it guarantees an accurate performance owing to its 5% capacitance tolerance. The coil is made with 19 AWG copper wire, ensuring superior conductivity. The product also features a wire connection length of 50 mm and a tin-plating length of 9 mm. Its coil body material is Polycarbonate, resilient in temperatures ranging from -90 to 135 degrees Celsius. With a copper purity greater than 99.99%, this coil promises exceptional performance in any application.

I.T. Intertechnik Artikelnummer: 1500098
