Name: Intertechnik LU25/015/050 | 0,15 mH | 0,49 Ω | 3% | 24 AWG | Choke Spule
Brand: Intertechnik
SKU: LU25/015/050
Price: 5.45 EUR
Availability: InStock

LU25/015/050 | 0,15 mH | 0,49 Ω | 3% | 24 AWG | Choke Spule

4,50 €5,45 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU25/015/050 | 0,15 mH | 0,49 Ω | 3% | 24 AWG

The I.T. Intertechnik LU25/015/050 is a top-quality choke coil designed for superior performance in crossover components.

Highlights

Inductance: 0.15 mH
Resistance: 0.49 Ω
Capacitance Tolerance: 3%
Wire Gauge: 24 AWG

Product details

I.T. Intertechnik LU25/015/050 | 0,15 mH | 0,49 Ω | 3% | 24 AWG | Choke Coil

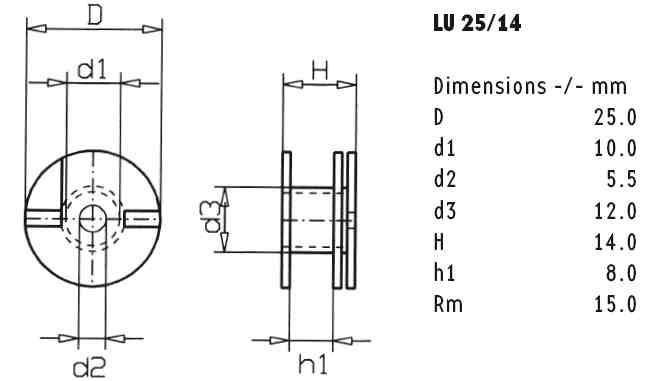

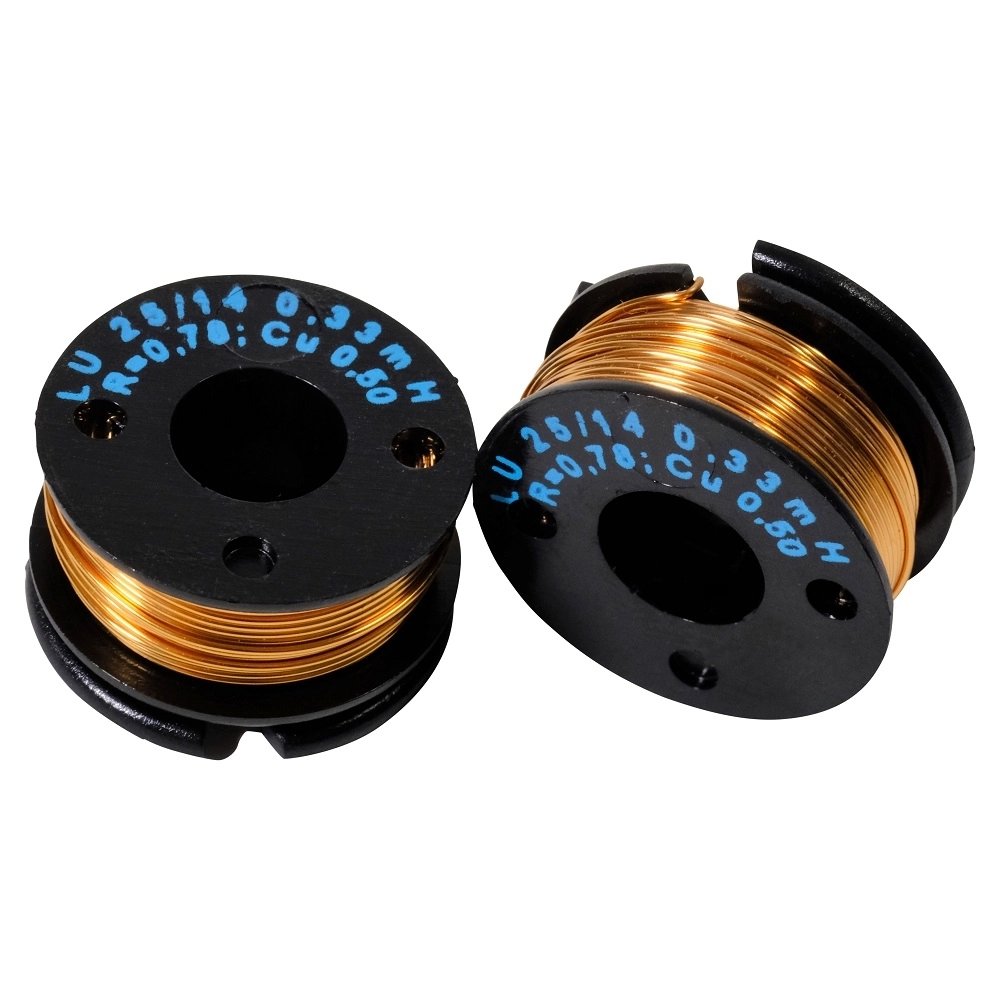

The I.T. Intertechnik LU25/015/050 Choke Coil is an air core coil designed with precision, making it an excellent choice for crossover components. It features a high-quality copper wire with a diameter between 0.90 and 1.32 mm, insulated with Thermoplastic. The coil offers excellent purity with more than 99.99% copper. The coil extends 50 mm in wire length and 9 mm in tinning length, providing extended reach and flexibility. The coil body is made of Polycarbonate, capable of withstanding temperatures between -90 and 135 degrees Celsius. The inductance tolerance is within - 3%, and the nominal measurement value is at 25 degrees Celsius at 1 kHz, ensuring accurate and consistent performance.

I.T. Intertechnik Artikelnummer: 1500056
