Name: Intertechnik LU44/015/100 | 0,15 mH | 0,17 Ω | 3% | 18 AWG | Luftkernspule
Brand: Intertechnik
SKU: LU44/015/100
Price: 11.45 EUR
Availability: InStock

LU44/015/100 | 0,15 mH | 0,17 Ω | 3% | 18 AWG | Luftkernspule

9,46 €11,45 € 10 Auf Lager

Wir versenden nach
Jetzt bestellt, morgen versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU44/015/100 | 0,15 mH | 0,17 Ω | 3% | 18 AWG

The I.T. Intertechnik LU44/015/100 is a high-quality air coil in the crossover components category.

Highlights

Specific inductance of 0.15 mH
Resistance of 0.17 Ω
Inductance tolerance of 3%
Constructed with 18 AWG wire

Product details

I.T. Intertechnik LU44/015/100 | 0,15 mH | 0,17 Ω | 3% | 18 AWG |Air Coil

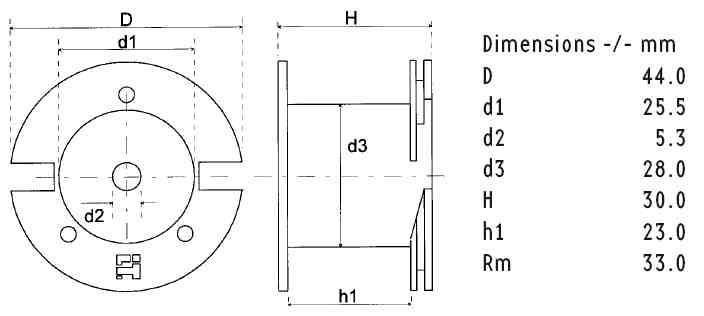

The I.T. Intertechnik LU44/015/100 is a superior air coil, designed for use in crossover components. This coil features a specific inductance of 0.15 mH and a resistance of 0.17 Ω. It is constructed with 18 AWG wire, ensuring high-quality performance and durability. The inductance tolerance is 3%, which is ideal for precision applications. This coil is designed with a wire connection length of 10 mm and a tinning length of 9 mm. The coil body material is ABS, which is known for its strength and durability. The inductance value is measured at a nominal temperature of 25 degrees C at 1 KHz, ensuring reliable and consistent performance. Choose the I.T. Intertechnik LU44/015/100 for your crossover component needs.

I.T. Intertechnik Artikelnummer: 1340006
