Name: Intertechnik LU44/039/100 | 0,39 mH | 0,33 Ω | 3% | 18 AWG | Luftkernspule
Brand: Intertechnik
SKU: LU44/039/100
Price: 13.95 EUR
Availability: InStock

LU44/039/100 | 0,39 mH | 0,33 Ω | 3% | 18 AWG | Luftkernspule

11,53 €13,95 € 6 Auf Lager

Wir versenden nach
Jetzt bestellt, morgen versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU44/039/100 | 0,39 mH | 0,33 Ω | 3% | 18 AWG

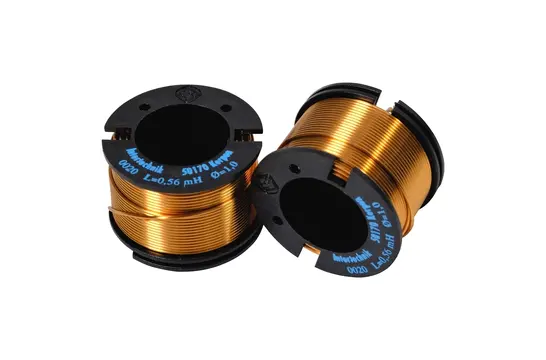

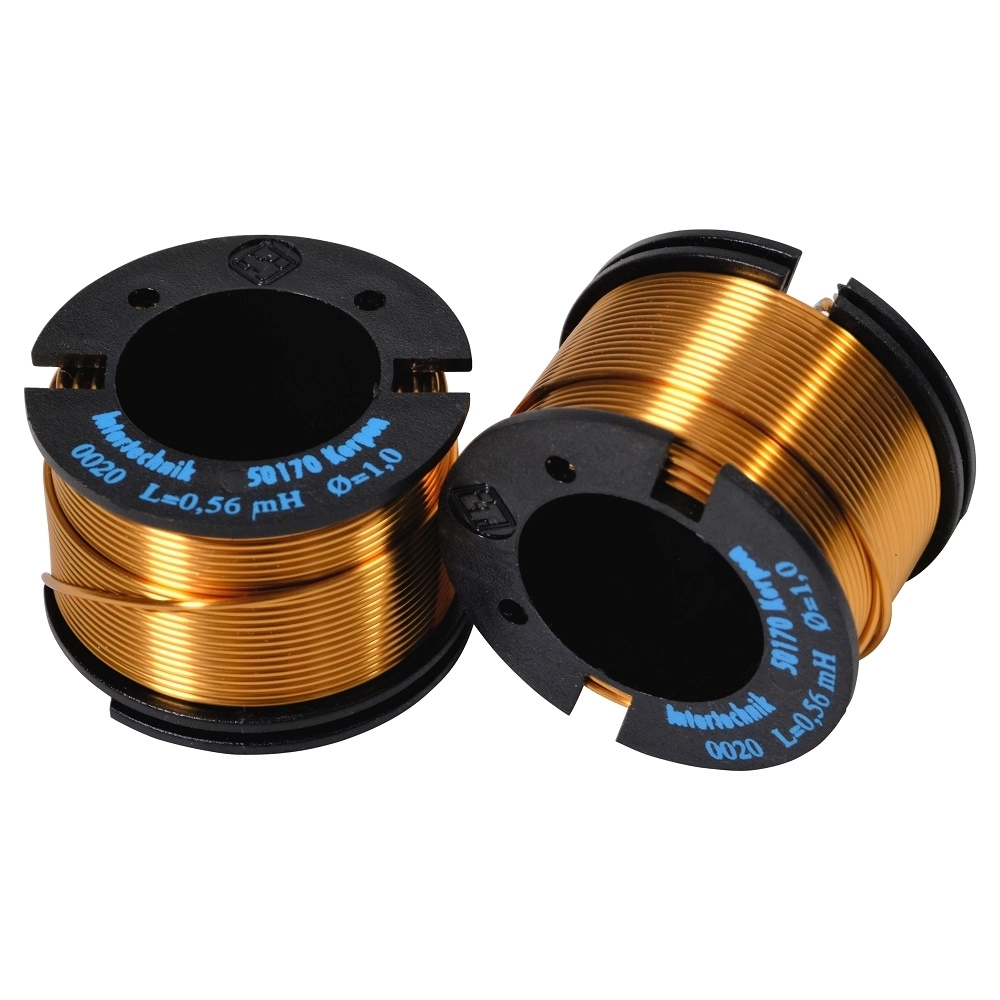

The I.T. Intertechnik LU44/039/100 is an air coil offering precise inductance and resistance values.

Highlights

Inductance value of 0.39mH
Resistance of 0.33Ω
3% tolerance for precise applications
Constructed with 18 AWG wire for efficient performance

Product details

I.T. Intertechnik LU44/039/100 | 0,39 mH | 0,33 Ω | 3% | 18 AWG |Air Coil

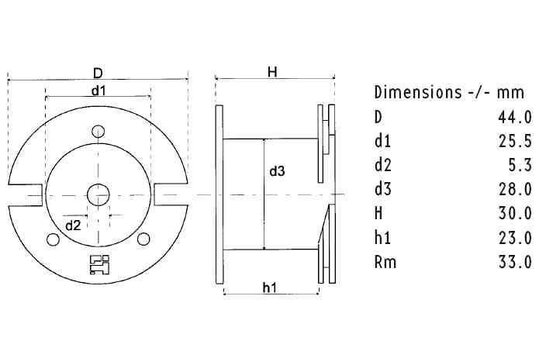

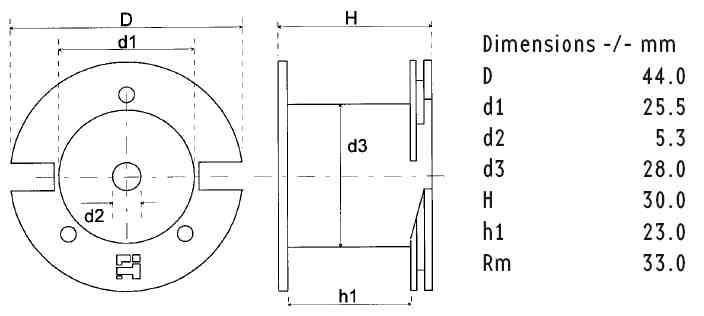

The I.T. Intertechnik LU44/039/100 is an air coil designed for crossover components in audio applications. It offers an inductance value of 0.39mH and a resistance of 0.33Ω, ensuring optimal performance for your audio devices. The coil boasts a tolerance of 3%, providing precision for your applications. It is made with 18 AWG wire, guaranteeing efficient performance and durability. This coil also features a wire connection length of 10mm and a tinning length of 9mm. It is built with ABS coil body material to ensure a robust and reliable structure. With a measurement value of nominal 25 degrees C at 1KHz, this air coil is a reliable choice for your crossover component needs.

I.T. Intertechnik Artikelnummer: 1340016
