      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule

      Intertechnik LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule

      €14,95

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Intertechnik LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule

      1 reviews
      4 von 5
      1 reviews
      5 Sterne
      0%
      4 Sterne
      100%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Intertechnik
      Zeige alle Luftkernspulen
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      14,95 € Nicht auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule
      LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG | Luftkernspule

      Produktbeschreibung Intertechnik LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG

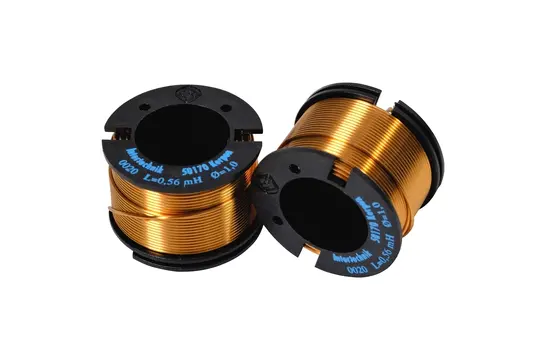

      The I.T. Intertechnik LU44/056/100 Air Coil is a high-quality crossover component offering precision and performance.



      Highlights

      • High-precision inductance of 0.56mH
      • Resistance of 0.42Ω for efficient operation
      • 3% tolerance for assured accuracy
      • Constructed with 18 AWG wire for durability



      Product details

      I.T. Intertechnik LU44/056/100 | 0,56 mH | 0,42 Ω | 3% | 18 AWG |Air Coil



      This I.T. Intertechnik LU44/056/100 Air Coil is a top-of-the-line component for crossovers in stereo systems and home theaters. With an inductance of 0.56mH and a resistance of 0.42Ω, it delivers superior performance and optimal efficiency. The coil is built with 18 AWG wire, ensuring its durability and longevity. The 3% tolerance ensures the accuracy of the coil's performance, providing a reliable and precise operation. It features a 99.99% wire connection length of 10mm and a tinning length of 9mm, offering excellent conductivity and overall performance. The coil is constructed with an ABS bobbin material, offering good heat resistance and mechanical strength. It is tested at a nominal 25 degrees C at 1KHz, ensuring its reliability and consistency in different operating conditions.



      I.T. Intertechnik Artikelnummer: 1340020

      Eigenschaften

      Artikelnummer:
      LU44/056/100
      EAN
      8785256848881
      Spulen-Typ
      Air core coils
      Induktion
      0.56 mH
      Gleichstromwiderstand
      0.42 ohms
      Toleranz
      3%
      Kabeldurchmesser
      18 AWG

      Mehr anzeigen

      Bewertungen

      1 reviews
      Produkt bewerten
      4 von 5
      Gut gewickelt
      Durch Otto on 2 Januar 2025
