Name: Intertechnik LU55/015/140 | 0,15 mH | 0,10 Ω | 3% | 15 AWG | Luftkernspule
Brand: Intertechnik
SKU: LU55/015/140
Price: 12.45 EUR
Availability: InStock

LU55/015/140 | 0,15 mH | 0,10 Ω | 3% | 15 AWG | Luftkernspule

10,29 €12,45 € 3 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU55/015/140 | 0,15 mH | 0,10 Ω | 3% | 15 AWG

This I.T. Intertechnik LU55/015/140 Air Coil offers 0.15mH inductance with a low 0.10Ω resistance, perfect for crossover components.

Highlights

Inductance of 0.15mH
Low resistance of 0.10Ω
3% inductance tolerance
15 AWG wire size

Product details

I.T. Intertechnik LU55/015/140 | 0,15 mH | 0,10 Ω | 3% | 15 AWG |Air Coil

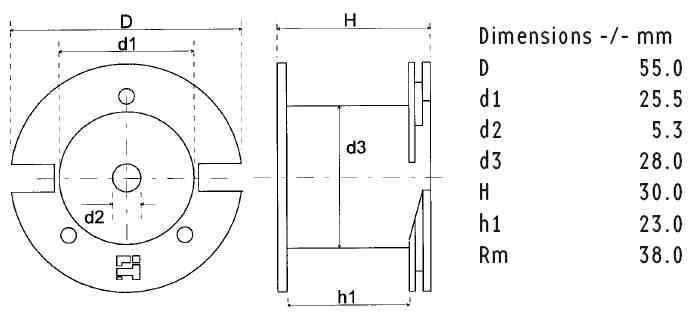

This high-quality air coil from I.T. Intertechnik, the LU55/015/140, is an excellent choice for your crossover components. With an inductance of 0.15mH and a remarkably low resistance of 0.10Ω, it offers exceptional audio signal transmission. The coil is designed with a 3% inductance tolerance, ensuring consistency and precision in performance. Manufactured with 15 AWG wire size, it ensures optimum conductivity and durability. Its wire connection length is 10mm, and it features a tinning length of 9mm. The coil body material is ABS, known for its strength and resistance to wear and tear. The inductance measurement is taken at nominal 25 degrees Celsius at 1KHz, providing an accurate and reliable performance measurement.

I.T. Intertechnik Artikelnummer: 1340048
