Name: Intertechnik LU55/018/140 | 0,18 mH | 0,11 Ω | 3% | 15 AWG | Luftkernspule
Brand: Intertechnik
SKU: LU55/018/140
Price: 13.95 EUR
Availability: InStock

LU55/018/140 | 0,18 mH | 0,11 Ω | 3% | 15 AWG | Luftkernspule

11,53 €13,95 € 2 Auf Lager

Wir versenden nach
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU55/018/140 | 0,18 mH | 0,11 Ω | 3% | 15 AWG

An air core coil from I.T. Intertechnik with a 0.18mH inductance and 0.11Ω resistance.

Highlights

0.18mH inductance and 0.11Ω resistance
3% inductance tolerance
15 AWG wire gauge
ABS coil body material

Product details

I.T. Intertechnik LU55/018/140 | 0,18 mH | 0,11 Ω | 3% | 15 AWG |Air Coil

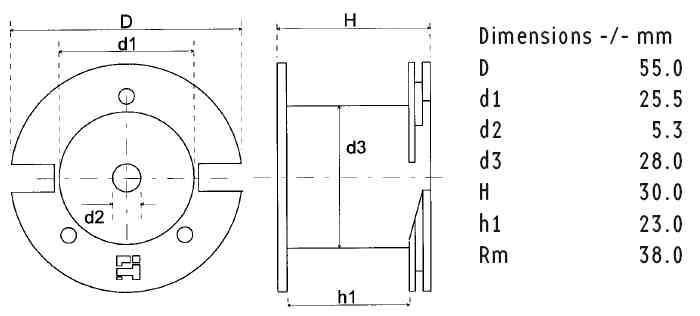

This I.T. Intertechnik Air Coil, part of the LU55/018/140 series, is a high-quality crossover component designed for precision audio applications. With a specific inductance of 0.18mH and resistance of 0.11Ω, it ensures optimal signal transmission. The coil comes with a 3% inductance tolerance, ensuring accurate performance under varying conditions. The coil is made of a 15 AWG wire, ensuring robust performance and durability. The coil body is made of ABS material, which is resistant to heat and impact, ensuring longevity of the component. It's designed with a wire connection length of 10mm and tinning length of 9mm, making it easy to install in various setups. The inductance measurement is nominal at 25 degrees C at 1kHz, ensuring reliable performance.

I.T. Intertechnik Artikelnummer: 1340049
