Name: Intertechnik LU92/6.8/140 | 6,8 mH | 0,93 Ω | 3% | 15 AWG | Luftkernspule
Brand: Intertechnik
SKU: LU92/6.8/140
Price: 68.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

LU92/6.8/140 | 6,8 mH | 0,93 Ω | 3% | 15 AWG | Luftkernspule

56,98 €68,95 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LU92/6.8/140 | 6,8 mH | 0,93 Ω | 3% | 15 AWG

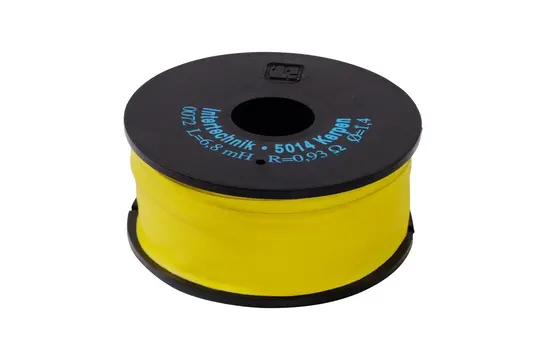

The I.T. Intertechnik LU92/6.8/140 is a high-quality air coil offering 6.8mH inductance and 0.93Ω resistance.

Highlights

Provides 6.8mH inductance
Offers 0.93Ω resistance
Constructed with 15 AWG wire
3% inductance tolerance

Product details

I.T. Intertechnik LU92/6.8/140 | 6,8 mH | 0,93 Ω | 3% | 15 AWG |Air Coil

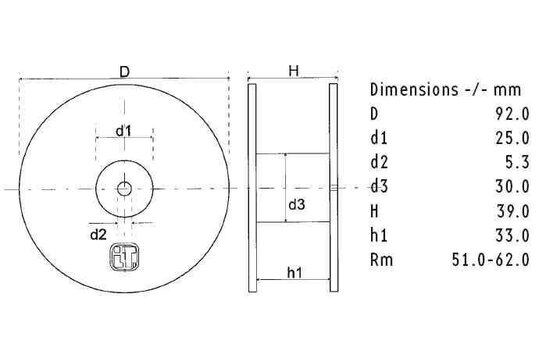

Belonging to the category of Crossover components Air core coils, the I.T. Intertechnik LU92/6.8/140 is a top-of-the-line product designed with the highest standards in mind. Its key features include a high inductance of 6.8mH and a low resistance of 0.93Ω, which are achieved using a 15 AWG wire. The coil also boasts a 3% inductance tolerance, assuring you of its precision and reliability. The spool body is made of ABS, ensuring its durability and longevity. The wire connection length of 10mm and tinning length of 9mm make installation and soldering a breeze. The inductance measurement is nominal at 25 degrees Celsius at 1KHz, ensuring consistent performance across a wide range of temperatures. Choose the I.T. Intertechnik LU92/6.8/140 for unmatched quality and performance.

I.T. Intertechnik Artikelnummer: 1340072
