Name: Intertechnik LUT32/012/10 | 0,12 mH | 0,19 Ω | 3% | 18 AWG | Air Therm Inductor
Brand: Intertechnik
SKU: LUT32/012/10
Price: 8.95 EUR
Availability: InStock

LUT32/012/10 | 0,12 mH | 0,19 Ω | 3% | 18 AWG | Air Therm Inductor

7,40 €8,95 € 4 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik LUT32/012/10 | 0,12 mH | 0,19 Ω | 3% | 18 AWG

High-quality air therm inductor by Intertechnik designed for crossover components.

Highlights

0.12 mH inductance
0.19 ohms resistance
3% capacitance tolerance
18 AWG wire size

Product details

I.T. Intertechnik LUT32/012/10 | 0,12 mH | 0,19 Ω | 3% | 18 AWG | Air Therm Inductor

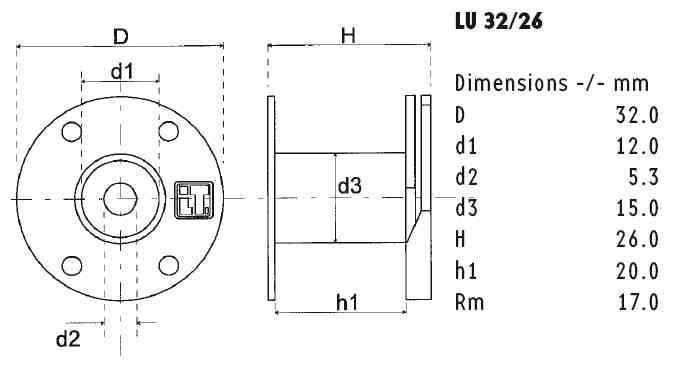

The I.T. Intertechnik LUT32/012/10 is a high-quality air therm inductor designed specifically for crossover components and air core coils. It offers a precise inductance of 0.12 mH and a resistance of 0.19 ohms. The product has a capacitance tolerance of 3% and is built with an 18 AWG wire. The product is made with high-purity copper wire (>99.99%) with thermoplastic insulation. It operates optimally at a nominal temperature of 25 degrees Celsius. The wire has a connection length of 50 mm and a tinning length of 9 mm. The coil body material is polycarbonate, which can withstand temperatures from -90 to 135 degrees Celsius. The inductor has a tolerance of -3% for the inductance measured value.

I.T. Intertechnik Artikelnummer: 1340602
