    TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 7 x 23 AWG | Tritec Spule

    Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 7 x 23 AWG | Tritec Spule

    €284,95

    Nicht auf Lager

    Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 7 x 23 AWG | Tritec Spule

    0 reviews
    0 von 5
    0 reviews
    5 Sterne
    0%
    4 Sterne
    0%
    3 Sterne
    0%
    2 Sterne
    0%
    1 Stern
    0%
    Alle Bewertungen anzeigen
    284,95 Nicht auf Lager
    • Kostenloser Versand (DE & A)
    • Bald wieder auf Lager
    • Mindestens zwei Jahre Garantie
    • 45 Tage Widerrufsrecht
    • Kundenbewertung:
    Angebot anfordern

    Produktbeschreibung Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 7 x 23 AWG

    This is a high-end, 10mH air core coil with 1.09Ω resistance, 1% tolerance, and 23 AWG from I.T. Intertechnik's Tritec series.



    Highlights

    • Uses "Septem Coxid" technology for superior performance
    • Offers low ohmic resistances and skin effect
    • Constant inductance during voltage and load changes
    • Excellent sound properties with noise reduction



    Product details

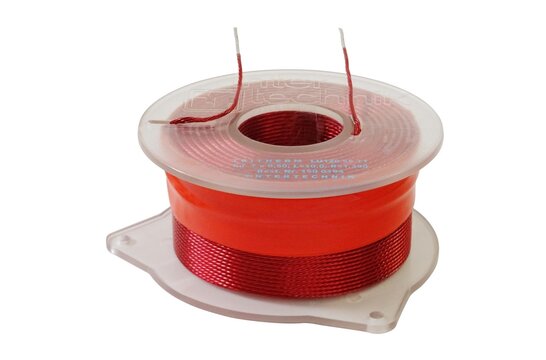

    I.T. Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil



    This I.T. Intertechnik Tritec Coil is an exceptional crossover component that combines all the positive effects of an inductor. This coil boasts of "Septem Coxid" technology with a concentric stranded construction of seven individual strands. The coil is baked and impregnated with thermoplastic enamel wire, ensuring very low ohmic resistances and skin effect. There is no saturation distortion and hysteresis distortion, maintaining a constant inductance with voltage and load changes. It also has a low self-capacity, excellent sound properties, and a copper purity of more than 99.99%. The coil's wire connection length is 100mm, with a tin plating of 10mm. It has an L-tolerance of -1% and an L-measured value of Nom. 25 degrees C Cu. 1 kHz. The coil can withstand an insulation temperature of 150 degrees C and a heat deformation resistance of -90 degrees C to 135 degrees C. The temperature coefficient is 0.000394 per degree C. Its unique 7-wire twisted design offers higher flexibility, increased current carrying capacity, reduced skin effect, and noise reduction, making it a preferred choice in audio cabling.



    I.T. Intertechnik Artikelnummer: 1500246

    Eigenschaften

    Artikelnummer:
    TRI120/10.0/0.60
    EAN
    9508291541222
    Spulen-Typ
    Air core coils
    Induktion
    10 mH
    Gleichstromwiderstand
    1.09 ohms
    Toleranz
    1%
    Kabeldurchmesser
    23 AWG

    Mehr anzeigen
