      Produktbeschreibung Intertechnik TRI120/3.00/0.80 | 3,0 mH | 0,35 Ω | 1% | 7 x 20 AWG

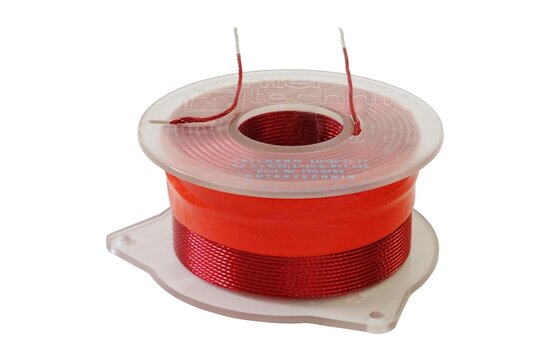

      The I.T. Intertechnik TRI120/3.00/0.80 is a high-end Tritec Coil with a 3.0 mH inductance and 0.35 ohm resistance.



      Highlights

      • Crafted with "Septem Coxid" Technology
      • Low ohmic resistance and skin effect
      • Thermoplastic enamel wire, baked and soaked
      • Superior sound characteristics



      Product details

      I.T. Intertechnik TRI120/3.00/0.80 | 3,0 mH | 0,35 Ω | 1% | 20 AWG | Tritec Coil



      The I.T. Intertechnik TRI120/3.00/0.80 Tritec Coil is a high-end air core coil, part of Crossover components. This coil combines all the desirable positive effects of an inductor. It is made with "Septem Coxid" technology and has concentric stranded construction with 7 single wires. It is equipped with thermoplastic enamel wire, which is baked and soaked. The coil comes with low ohmic resistance and a very low skin effect. There are no saturation distortions or hysteresis distortions. The inductance remains constant with voltage and load changes, and it has a low self-capacity. The Tritec wire with 7 twisted conductors offers several advantages such as flexibility, increased current carrying capacity, reduction in skin effect, and noise reduction. This makes the Intertechnik Tritec coils with 7 twisted wire conductor a preferred choice in audio cabling.



      I.T. Intertechnik Artikelnummer: 1500299

      Eigenschaften

      Artikelnummer:
      TRI120/3.00/0.80
      EAN
      8785256854745
      Spulen-Typ
      Air core coils
      Induktion
      3 mH
      Gleichstromwiderstand
      0.35 ohms
      Toleranz
      1%
      Kabeldurchmesser
      20 AWG
