Name: Intertechnik TRI55/022/0.50 | 0,22 mH | 0,147 Ω | 1% | 24 AWG | Tritec Spule
Brand: Intertechnik
SKU: TRI55/022/0.50
Price: 26.95 EUR
Availability: InStock

TRI55/022/0.50 | 0,22 mH | 0,147 Ω | 1% | 24 AWG | Tritec Spule

22,27 €26,95 € 4 Auf Lager

Wir versenden nach
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Intertechnik TRI55/022/0.50 | 0,22 mH | 0,147 Ω | 1% | 24 AWG

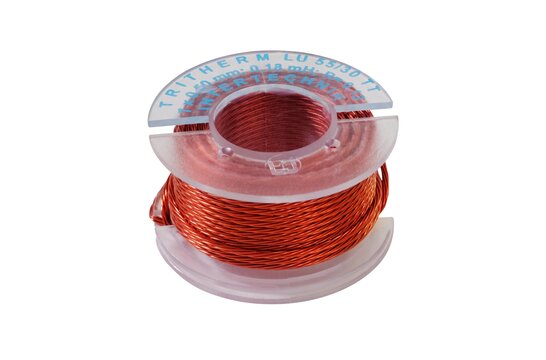

The I.T. Intertechnik TRI55/022/0.50 is a high-end air core coil with exceptional audio performance.

Highlights

State-of-the-art "Septem Coxid" technology for inductance stability.
High flexibility and bendability offered by Tritec 7-wire twisted conductors.
Reduced Skin Effect and increased current carrying capability.
Excellent audio properties with noise reduction.

Product details

I.T. Intertechnik TRI55/022/0.50 | 0,22 mH | 0,147 Ω | 1% | 24 AWG | Tritec Coil

The I.T. Intertechnik TRI55/022/0.50 Tritec Coil is a top-of-the-line crossover component. It benefits from the latest "Septem Coxid" technology, which ensures a constant inductance even under voltage and load fluctuations. The Tritec wire with 7 twisted conductors offers increased flexibility, reduced skin effect, and greater current-carrying capacity. This design also aids in the reduction of electromagnetic interference and high-frequency noise. The coil features a low ohmic resistance, negligible saturation and hysteresis distortion, and has a copper purity of more than 99.99%. It is dipped and baked with thermoplastic enameled wire, ensuring superior sound quality. With an inductance tolerance of -1%, a nominal temperature of 25 degrees Celsius, and an insulation temperature of 150 degrees Celsius, this coil is an excellent choice for high-end audio cabling.

I.T. Intertechnik Artikelnummer: 1500174
