      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule

      Intertechnik TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule

      €78,25

      2 Auf Lager

      Zum Warenkorb hinzufügen

      Intertechnik TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Intertechnik
      Zeige alle Luftkernspulen
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      78,25 € 2 Auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule
      TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG | Tritec Spule

      Produktbeschreibung Intertechnik TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 7 x 20 AWG

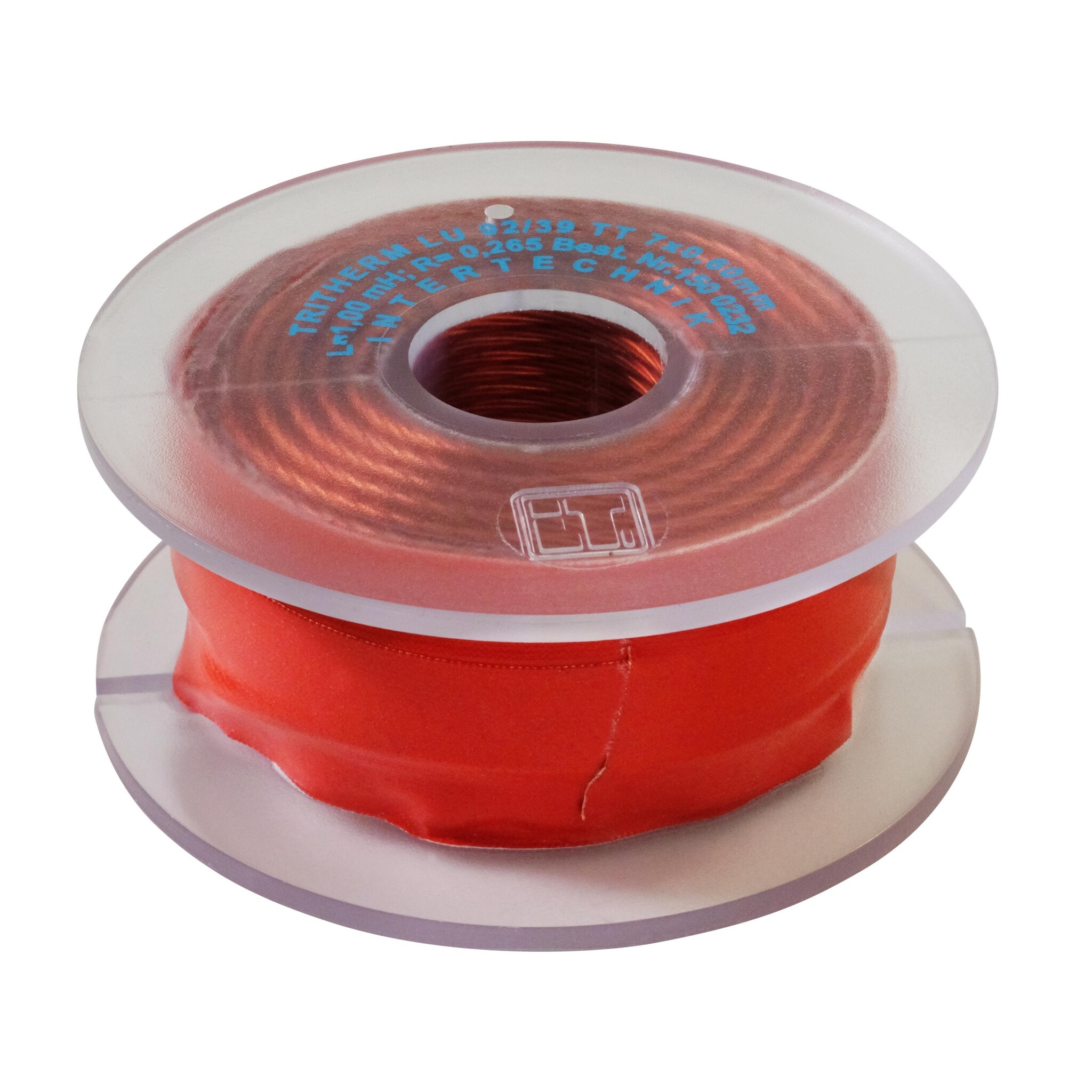

      The I.T. Intertechnik TRI92/0.56/0.80 Tritec Coil, a state-of-the-art air core coil designed for high-end audio applications.



      Highlights

      • Exceptional sound properties due to Tritec technology
      • Low ohmic resistance and skin effect
      • 7-strand twisted conductors for enhanced current capacity
      • Constructed with > 99.99% pure copper for optimal performance



      Product details

      I.T. Intertechnik TRI92/0.56/0.80 | 0,56 mH | 0,12 Ω | 1% | 20 AWG | Tritec Coil



      The I.T. Intertechnik TRI92/0.56/0.80 Tritec Coil is a premium air core coil specifically designed for superior audio performance. Utilizing Intertechnik's proprietary "Septem Coxid" technology, it features a concentric stranded construction with 7 individual strands. This unique design offers a host of benefits including improved flexibility and bendability, increased current carrying capacity, reduced skin effect, and noise reduction. The coil is constructed with thermoplastic enameled wire, ensuring low ohmic resistances and minimal saturation distortions. It maintains constant inductance under varying voltage and load conditions, with an impressively low self-capacitance. Its copper purity exceeds 99.99%, ensuring optimal performance. The coil's inductance tolerance is -1% at nominal 25°C, with an insulation temperature of 150°C and heat deformation resistance from -90°C to 135°C. The temperature coefficient is 0.000394 per degree C. This coil is a preferred choice in high-end audio cabling, delivering exceptional sound properties.



      I.T. Intertechnik Artikelnummer: 1500284

      Eigenschaften

      Artikelnummer:
      TRI92/0.56/0.80
      EAN
      8785256854653
      Spulen-Typ
      Air core coils
      Induktion
      0.56 mH
      Gleichstromwiderstand
      0.12 ohms
      Toleranz
      1%
      Kabeldurchmesser
      20 AWG
