High-purity, distortion-free 0,47mH air core coil for audio applications.
Highlights
- Made with high-purity copper wire.
- Distinct "baked" design for distortion-free sound.
- Modern self-supporting design, no need for plastic bobbins.
- Low inductance tolerance of +/-3%.
Product details

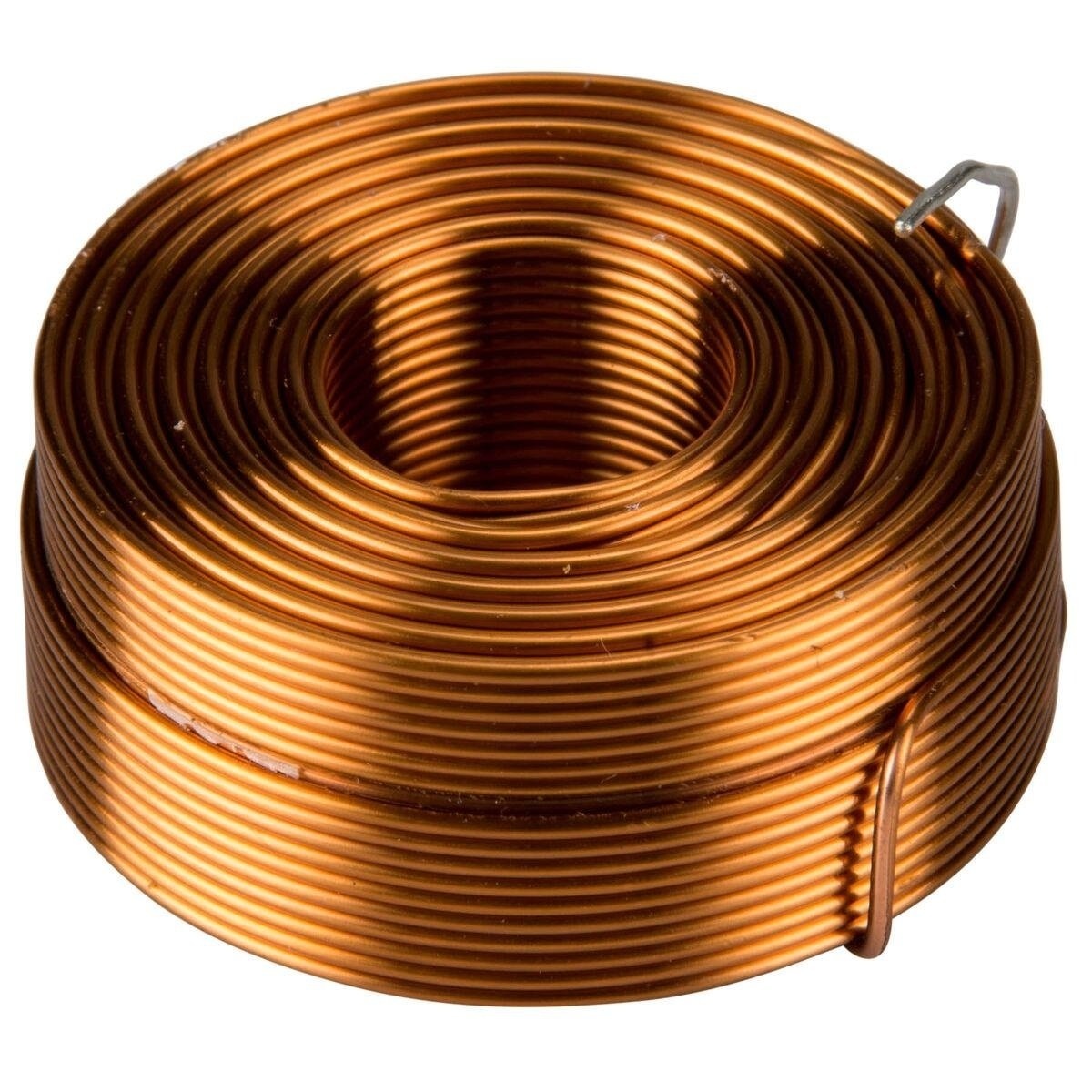

Jantzen Audio 000-1294 | 0,47 mH | 0,64 Ω | 3% | 22 AWG | Air Core Coil
The Jantzen Audio 000-1294 is a high-quality air core coil designed specifically for use in crossover components. This coil is made with high-purity copper wire that has been "baked" into a perfect shape, ensuring a distortion-free audio experience. It features a modern, self-supporting design that eliminates the need for plastic bobbins. The coil's wire is enameled and solderable, with a self-bonding topcoat, class 155, according to IEC 60317-35 and DIN EN 60317-35. The inductance of this coil is 0,47mH, with a low tolerance of +/-3%. The resistance of the coil is 0,64Ω, and it uses 22 AWG wire. The coil has been made with a Grade 1B copper wire and is coated with polyurethane with an aliphatic polyamide bond coat. This product is a perfect choice for those seeking high-quality, reliable sound performance.
