      000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG | Luftkernspulen

      Jantzen Audio 000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG | Luftkernspulen

      €14,45

      4 Auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG | Luftkernspulen

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Luftkernspulen
      000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG | Luftkernspulen
      14,45 € 4 Auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG | Luftkernspulen

      Produktbeschreibung Jantzen Audio 000-1509 | 0,55 mH | 0,3 Ω | 3% | 17 AWG

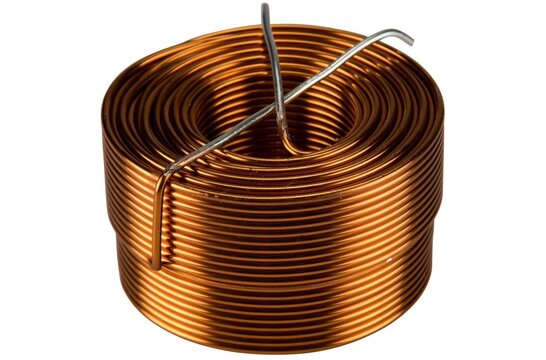

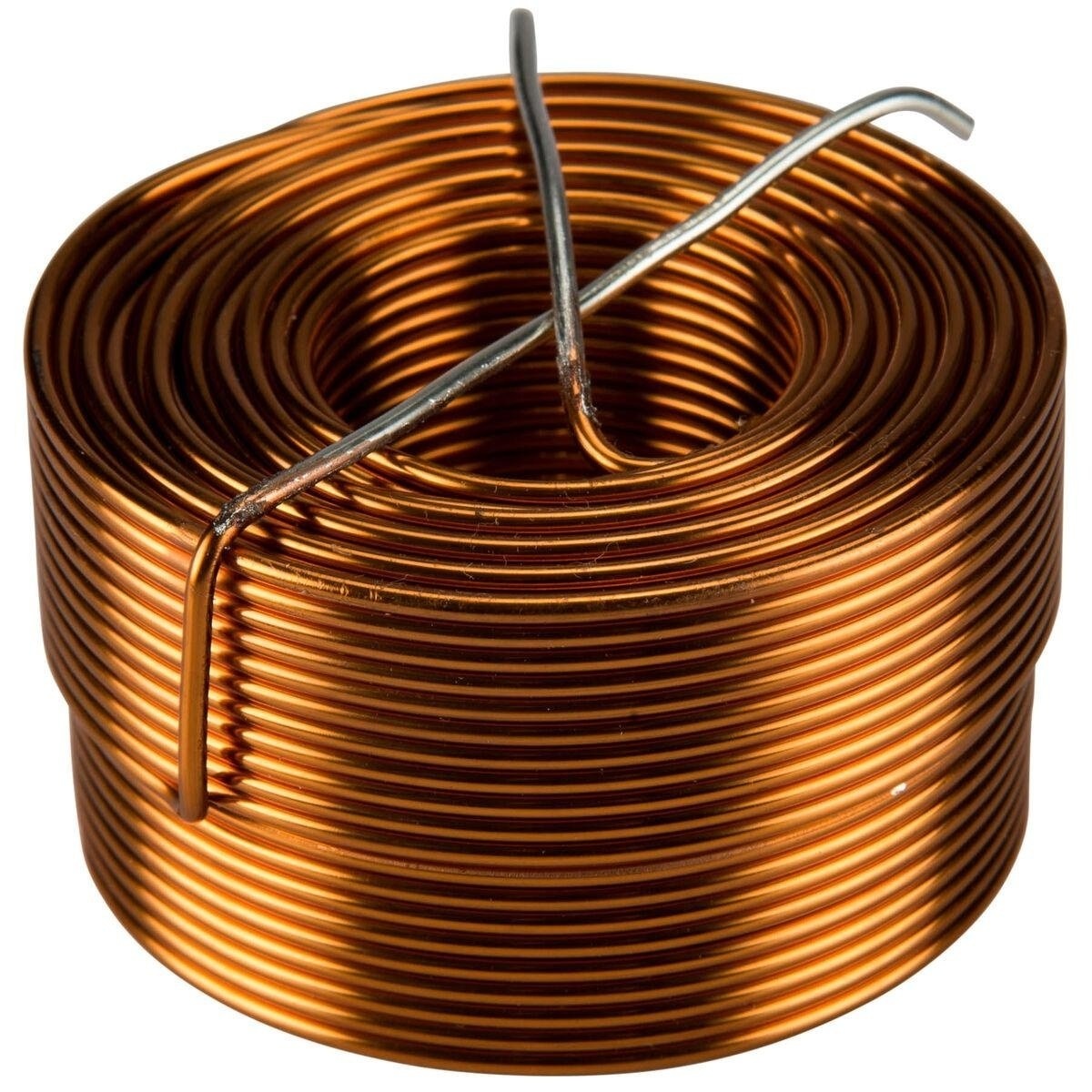

      High-fidelity 0.55 mH air core coil by Jantzen Audio, perfect for premium audio crossovers.

      Highlights

      • Grade 1B copper wire ensures excellent signal integrity
      • Self-supporting design without the need for plastic bobbins
      • Low inductance tolerance of +/-3% for accurate sound reproduction
      • Enameled copper wire with class 155 insulation for durability

      Product details

      Jantzen Audio 000-1509 | 0,55 mH | 0,27 Ω | 3% | 17 AWG | Air Core Coil

      The Jantzen Audio 000-1509 air core coil is a state-of-the-art component designed for use in high-quality audio crossover systems. Utilizing Grade 1B high-purity copper wire, this coil is "baked" into its perfect shape to ensure a distortion-free inductor that meets the demands of audiophiles. With a low inductance value of 0.55 mH and a resistance of 0.27 ohms, it provides precise crossover functionality with a low tolerance of +/-3%, guaranteeing consistency in performance. The modern, self-supporting design of the coil eliminates the need for plastic bobbins, which can resonate and color the sound, thus preserving audio purity. The enameled copper wire is easily solderable thanks to a self-bonding topcoat, and the coating is classified as class 155 according to IEC 60317-35 and DIN EN 60317-35 standards, which means it can withstand thermal stress and has a high resistance to chemicals. The polyurethane with an aliphatic polyamide bond coat further reinforces the coil's durability. These features make the Jantzen Audio 000-1509 air core coil an exceptional choice for audiophiles looking to build or upgrade their speaker crossovers with components that do not compromise on clarity or detail.

      Eigenschaften

      Artikelnummer:
      000-1509
      EAN
      9507294877864
      Spulen-Typ
      Air core coils
      Induktion
      0.55 mH
      Gleichstromwiderstand
      0.3 ohms
      Toleranz
      3%
      Kabeldurchmesser
      17 AWG

      Mehr anzeigen
