Compact 1.4mH air core coil for crystal-clear audio crossover applications.
Highlights
- High-purity Grade 1B copper wire for superior conductivity
- Self-supporting structure, eliminating the need for plastic bobbins
- Low inductance tolerance of +/-3% for precise audio control
- 20 AWG enameled copper wire with solderable self-bonding topcoat
Product details

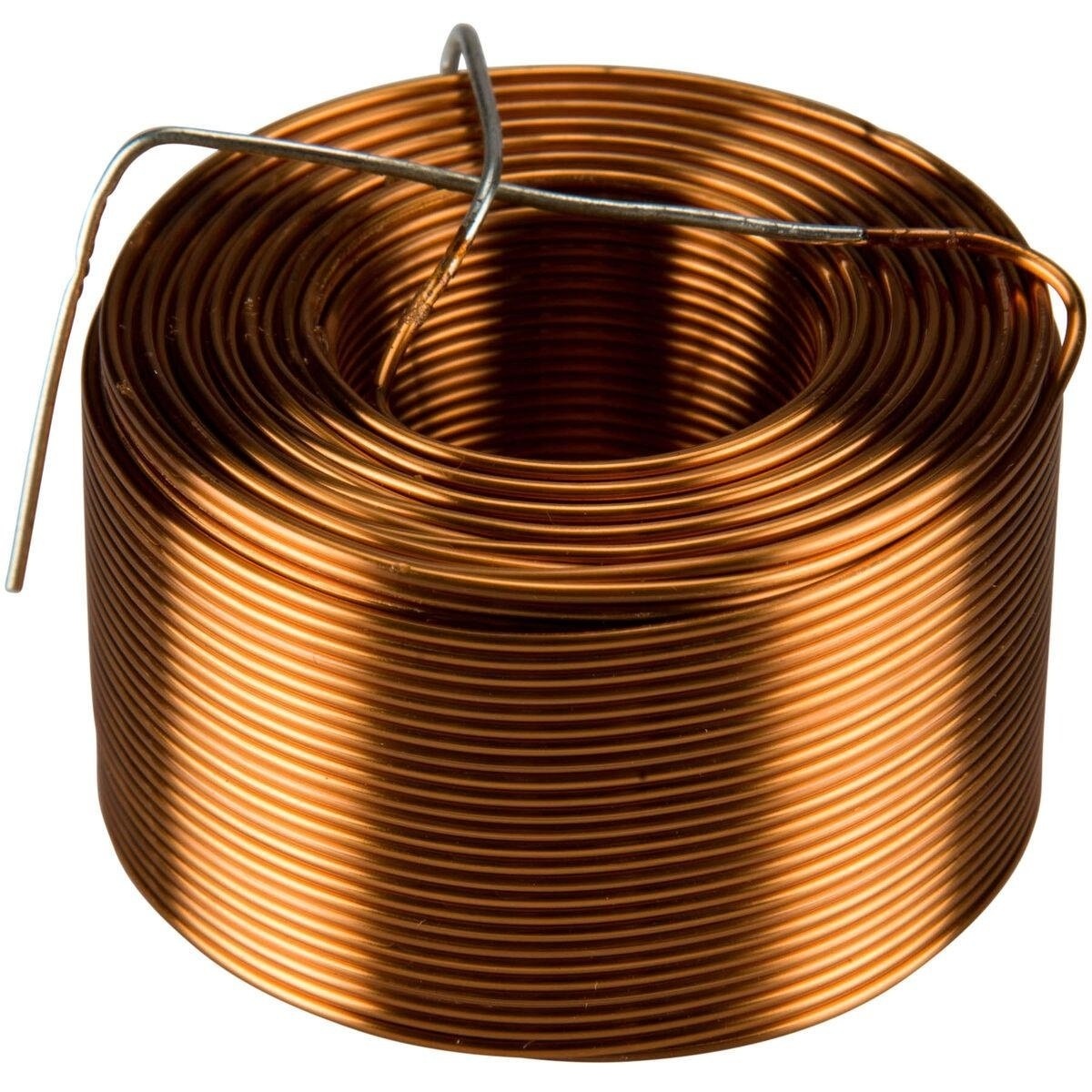

Jantzen Audio 000-1524 | 1,4 mH | 0,86 Ω | 3% | 20 AWG | Air Core Coil
The Jantzen Audio 000-1524 air core coil is an essential component for audiophiles looking to achieve the highest fidelity in their crossover networks. Crafted with high-purity Grade 1B copper wire, this coil ensures minimal signal distortion and maximum electrical conductivity. Its modern self-supporting design removes the need for plastic bobbins, promoting superior signal integrity and durability. With a resistance of 0.86 ohms and an inductance of 1.4 mH, it is designed to function flawlessly in all audio applications. The low inductance tolerance of +/-3% provides unmatched precision for the most discerning audio systems. The 20 AWG wire is coated with polyurethane and an aliphatic polyamide bond coat, compliant with IEC 60317-35 and DIN EN 60317-35 standards, making it easily solderable for seamless integration. Whether you're a professional sound engineer or an audiophile, the Jantzen Audio 000-1524 coil is the perfect choice for creating a distortion-free audio experience.
