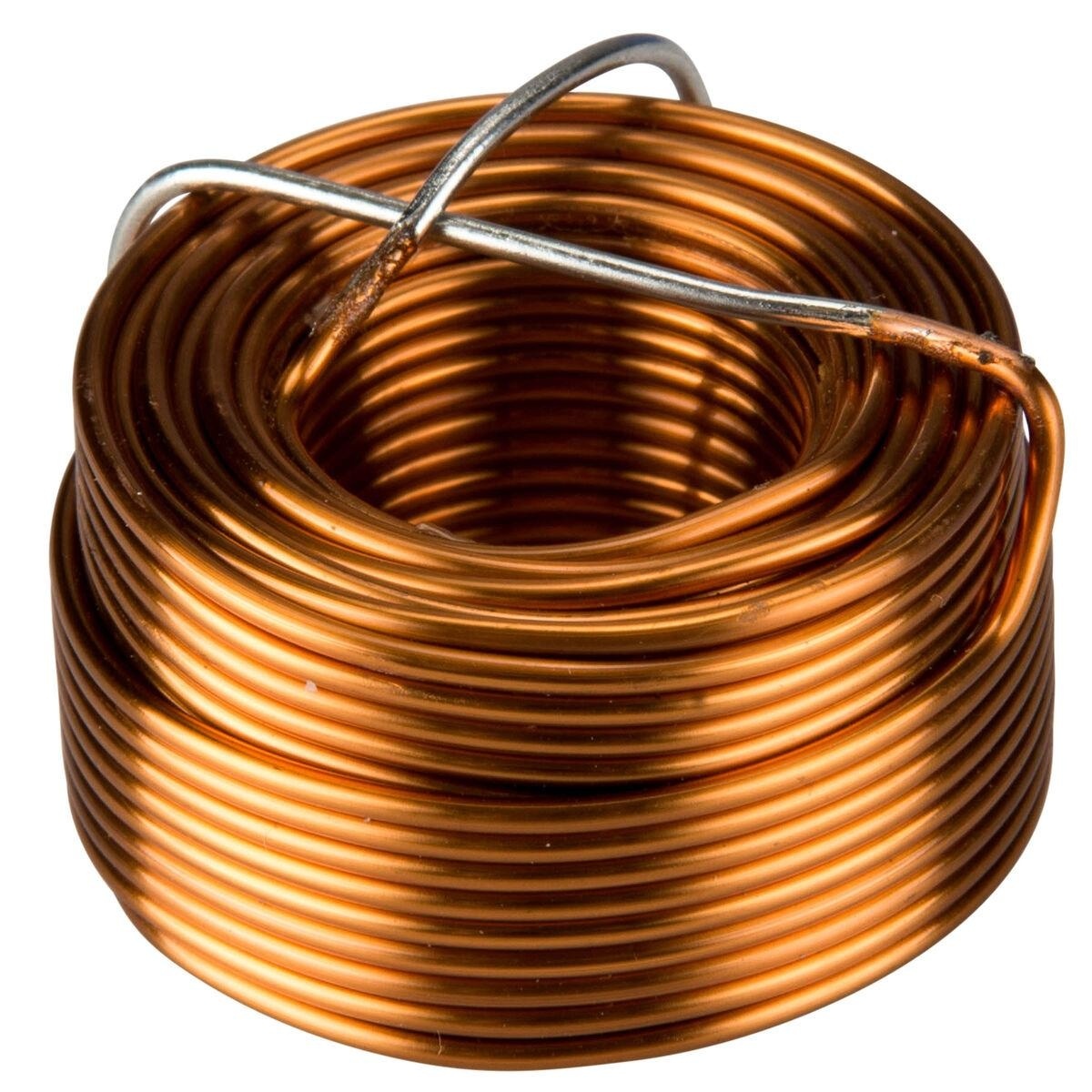

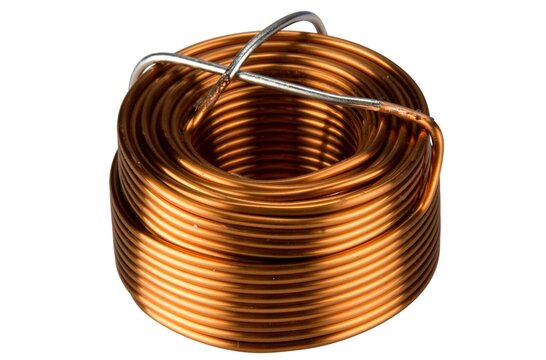

Name: Jantzen Audio 000-1534 | 0,08 mH | 0,06 Ω | 3% | 15 AWG | Luftkernspulen
Brand: Jantzen Audio
SKU: 000-1534
Price: 7.45 EUR
Availability: InStock

000-1534 | 0,08 mH | 0,06 Ω | 3% | 15 AWG | Luftkernspulen

7,⁴⁵ € 1 Auf Lager10 erwartet auf 21-03-2025

Wir versenden nach United States of America
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Produktbeschreibung Jantzen Audio 000-1534 | 0,08 mH | 0,06 Ω | 3% | 15 AWG

Compact 0.08mH air core coil for high-fidelity audio crossover networks.

Highlights

Precision-engineered 0.08 mH inductance
Low 0.06 Ω resistance for minimal signal loss
Quality 15 AWG high-purity copper wire
Tight inductance tolerance of +/- 3%

Product details

Jantzen Audio 000-1534 | 0,08 mH | 0,06 Ω | 3% | 15 AWG | Air Core Coil

The Jantzen Audio 000-1534 is a meticulously crafted air core coil designed for use in audio crossover components. Engineered with a specific 0.08 mH inductance and an impressively low resistance of 0.06 Ω, this coil ensures a superior signal path with minimal loss, making it ideal for high-end audio systems. Its use of 15 AWG high-purity copper wire guarantees a distortion-free experience, specially "baked" into shape to maintain a pristine inductor form. The modern self-supporting design eliminates the need for plastic bobbins, promoting better signal purity and reducing unwanted resonances. Coated with polyurethane and an aliphatic polyamide bond, the coil is robust and solderable, thanks to its self-bonding topcoat that adheres to class 155, in accordance with IEC 60317-35 and DIN EN 60317-35. This Grade 1B copper wire coil showcases a low inductance tolerance of +/- 3%, ensuring precision and consistency in performance, making it a reliable and essential component for audiophiles and professional sound engineers alike.
