A high-fidelity 0.32 mH air core coil perfect for premium audio crossovers.
Highlights
- Low 0.47 Ω resistance for unaltered signal flow
- Precision 0.32 mH inductance with +/-3% tolerance
- High-purity Grade 1B copper wire
- Enameled wire with self-bonding topcoat for easy soldering
Product details

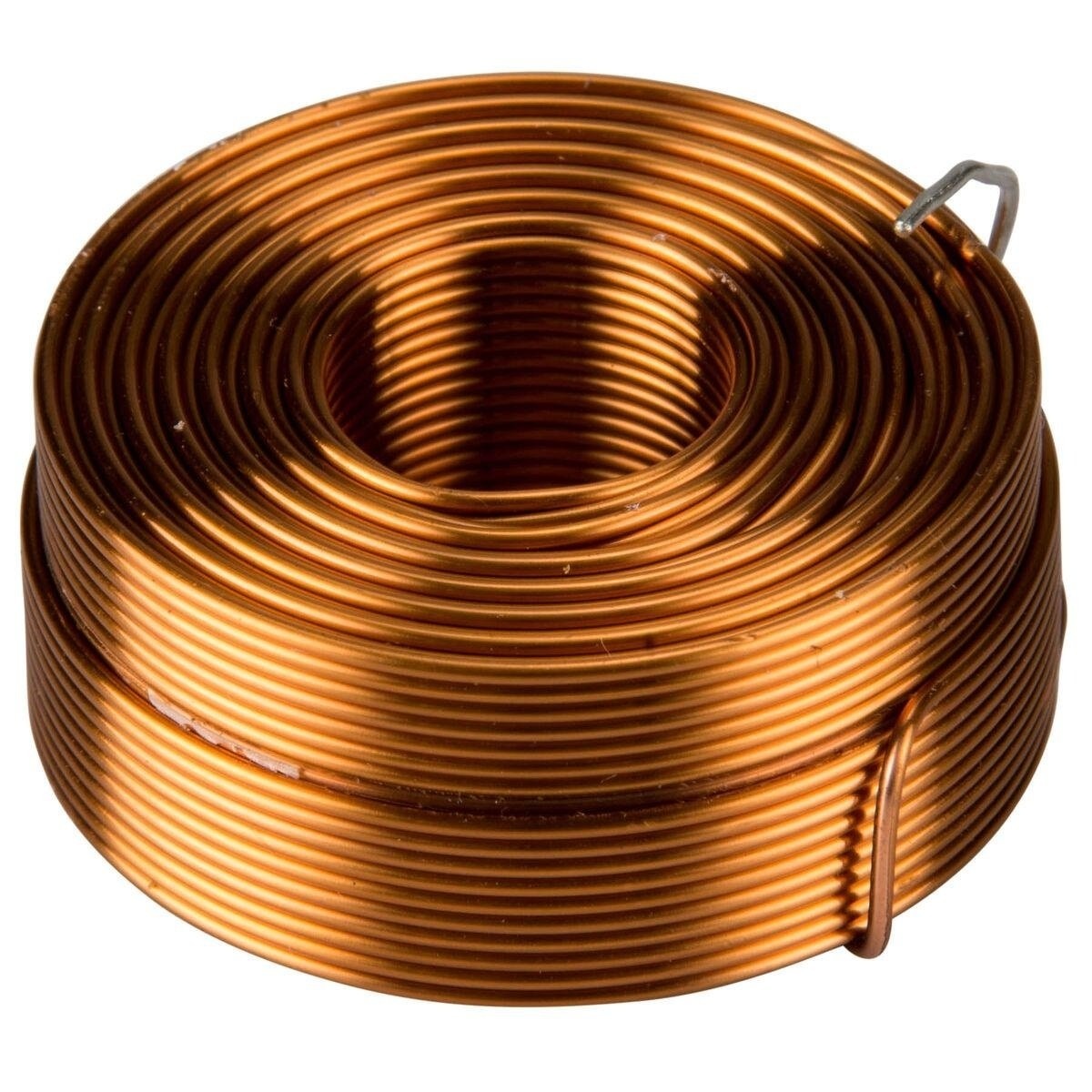

Jantzen Audio 000-1661 | 0,32 mH | 0,47 Ω | 3% | 21 AWG | Air Core Coil
The Jantzen Audio 000-1661 air core coil is a meticulously crafted component designed for high-end audio crossover systems. With a precise inductance of 0.32 mH and a low resistance of just 0.47 Ω, this coil ensures minimal signal distortion and a clear path for audio signals. Its +/-3% inductance tolerance is a testament to the quality and consistency of the product. The 21 AWG coil employs high-purity Grade 1B copper wire, revered for its superior conductivity and audio fidelity. The self-supporting design eliminates the need for plastic bobbins, further reducing signal loss and distortion. The enameled copper wire features a self-bonding topcoat, compliant with class 155 standards according to IEC 60317-35 and DIN EN 60317-35, making it solderable and durable. Whether you're a professional audio engineer or an audiophile, this Jantzen Audio air core coil is engineered to deliver flawless performance in any audio application.
