    Produktbeschreibung Jantzen Audio 000-1748 | 20 mH | 5,1 Ω | 3% | 20 AWG

    Premium 20 mH, 5.1 Ω air core coil for superior audio crossover applications.



    Highlights

    • High-purity grade 1B copper wire with self-bonding topcoat
    • Superior self-supporting design, eliminating plastic bobbins
    • Low inductance tolerance of +/-3% for accurate frequency response
    • Optimized for distortion-free signal in audio applications



    Product details

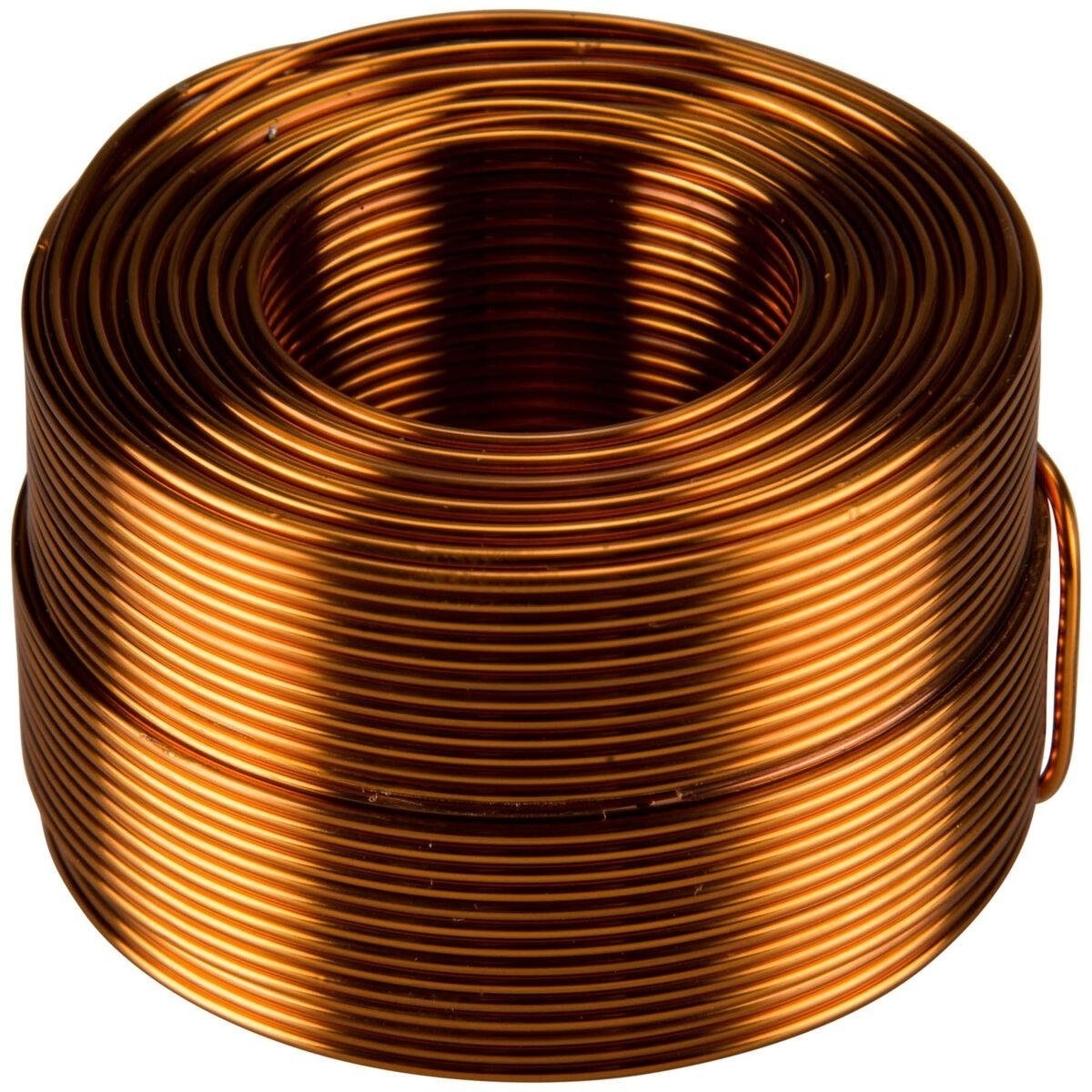

    Jantzen Audio 000-1748 | 20 mH | 5,1 Ω | 3% | 20 AWG | Air Core Coil



    Introducing the Jantzen Audio 000-1748, a meticulously engineered 20 mH air core coil crafted for high-end audio crossover components. Each coil is made from high-purity grade 1B copper wire, ensuring minimal signal distortion and maximum clarity. The wire is enameled and features a self-bonding topcoat, conforming to class 155 standards according to IEC 60317-35 and DIN EN 60317-35, which allows for easy soldering. The modern self-supporting coil design does away with the need for traditional plastic bobbins, enhancing the purity of the sound. With a resistance of 5.1 ohms and a tight inductance tolerance of +/-3%, this air core coil assures a precise and consistent audio experience. It's perfect for audiophiles seeking to build or upgrade their speakers with components that deliver a clean, distortion-free signal across a wide range of frequencies.

    Eigenschaften

    Artikelnummer:
    000-1748
    EAN
    9503333111968
    Spulen-Typ
    Air core coils
    Induktion
    20 mH
    Gleichstromwiderstand
    5.1 ohms
    Toleranz
    3%
    Kabeldurchmesser
    20 AWG
