      000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG | Iron Core Spule mit Disks

      Jantzen Audio 000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG | Iron Core Spule mit Disks

      €32,95

      2 Auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG | Iron Core Spule mit Disks

      1 reviews
      5 von 5
      1 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Eisenkernspulen
      000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG | Iron Core Spule mit Disks
      32,95 € 2 Auf Lager
      • -5% Bestelle 4 für nur 31,30 € je Stück
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG | Iron Core Spule mit Disks

      Produktbeschreibung Jantzen Audio 000-5387 | 10 mH | 0,4 Ω | 3% | 15 AWG

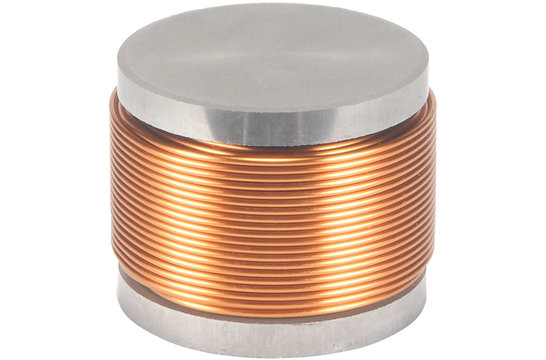

      High-purity copper wire wound around a Permite core with discs.



      Highlights

      • Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
      • Grade 1B copper wire
      • Polyurethane with aliphatic polyamide bond coat
      • Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
      • High power handling



      Product details

      Jantzen Audio 000-5387 | 10 mH | 0,39 Ω | 3% | 15 AWG | Iron Core Coil With Disks



      Extremely low DCR which does not alter driver damping factor and add to loss of efficiency. The non-ferrite core/disc material provides significant lower hysteresis compared to coils with ferrite cores, at the same time delivering higher power handling. Generally only recommended for bass & mid-section on crossover. Power handling capability is determined by core/disc size and wire thickness.



      All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



      Specifications: Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • 15 AWG • Wire diameter 1.4mm • Inductance 0.22mH to 15mH.

      Eigenschaften

      Artikelnummer:
      000-5387
      EAN
      8785256839391
      Spulen-Typ
      Iron core coil
      Induktion
      10 mH
      Gleichstromwiderstand
      0.4 ohms
      Toleranz
      3%
      Kabeldurchmesser
      15 AWG

      Mehr anzeigen

      Bewertungen

      1 reviews
      Produkt bewerten
      5 von 5
      snel en precies als beschreven
      Durch george on 20 Juli 2024
