Name: Jantzen Audio 000-6085 | 2,2 mH | 0,06 Ω | 5% | 14 AWG | C-Spule
Brand: Jantzen Audio
SKU: 000-6085
Price: 47.95 EUR
Availability: InStock

000-6085 | 2,2 mH | 0,06 Ω | 5% | 14 AWG | C-Spule

39,63 €47,95 € 4 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Jantzen Audio 000-6085 | 2,2 mH | 0,06 Ω | 5% | 14 AWG

The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed for the bass section of crossovers and for passive Sub-Woofers.

Highlights

Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
Toroidal (sandwich) core made from epoxy laminated steel plates
All C-Coils are measured after being wound, using a professional CLIO system @ AC 1V 1kHz
Not suitable for crossovers with an XO point above 1.20 kHz

Product details

Jantzen Audio 000-6085 | 2,2 mH | 0,06 Ω | 5% | 14 AWG | C-Coil

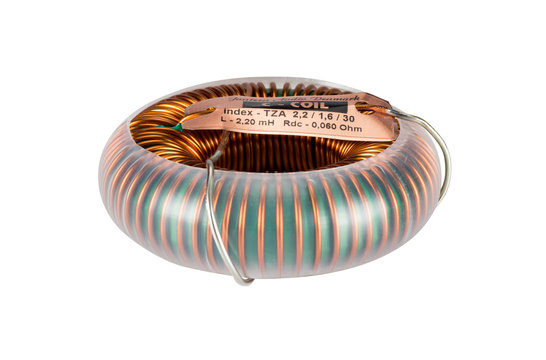

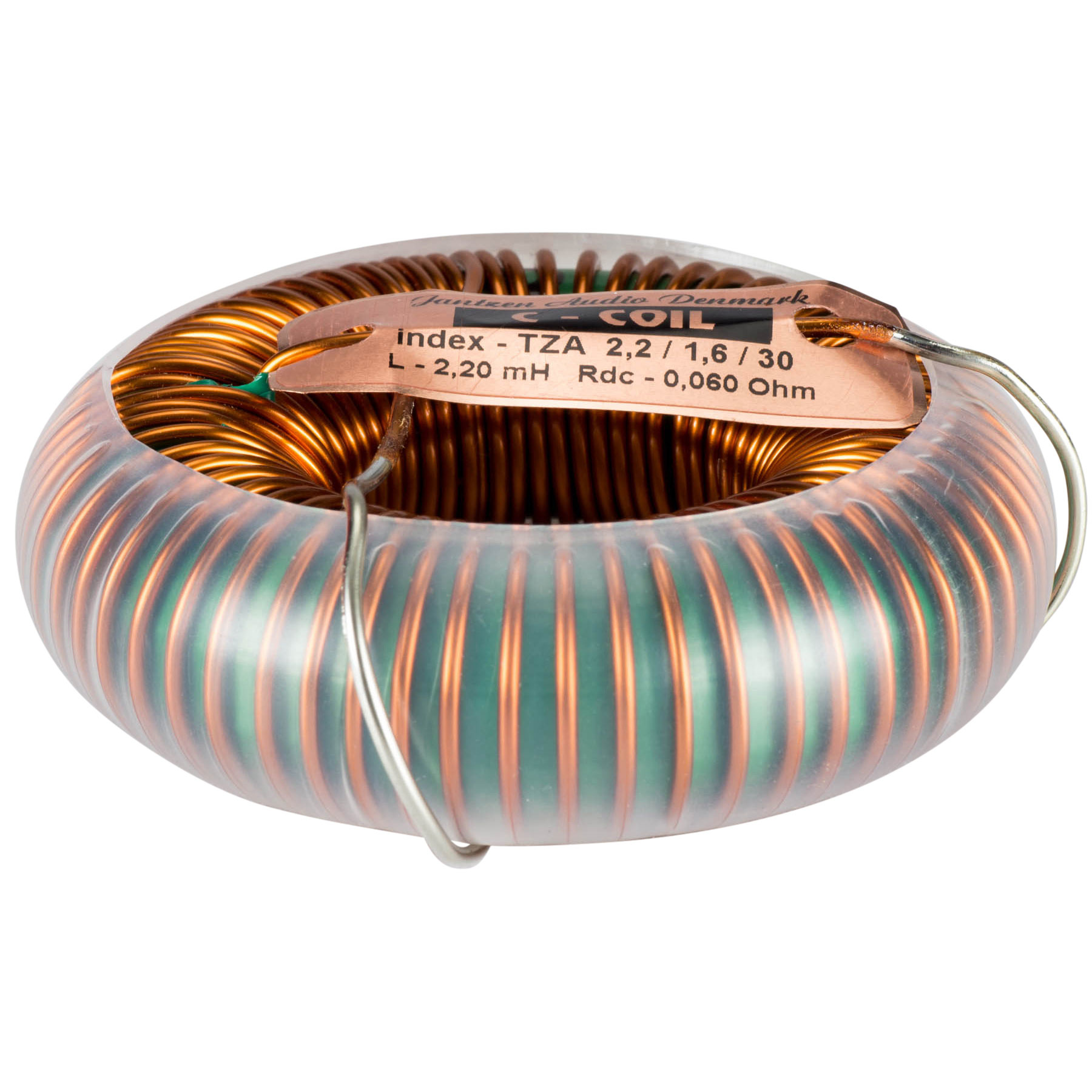

The C-Coil is an audio inductor, unique to Jantzen Audio. It is a toroidal core audio inductor with a very high-power handling and extremely low resistance (RDC). The extremely high-power handling makes it the ultimate inductor for the bass section for certain crossover design. Wound on a toroidal sandwiched steel core and using shrink foil to reduce microphonic effect. The C-Coil is specifically designed for the bass section for crossovers and is not recommended for the mid-range or tweeter section.

All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.

Specifications: Power handling: 1500 Watt RMS • Inductance tolerance: +/- 5% • Resistance (RDC) tolerance: +/- 10%.
