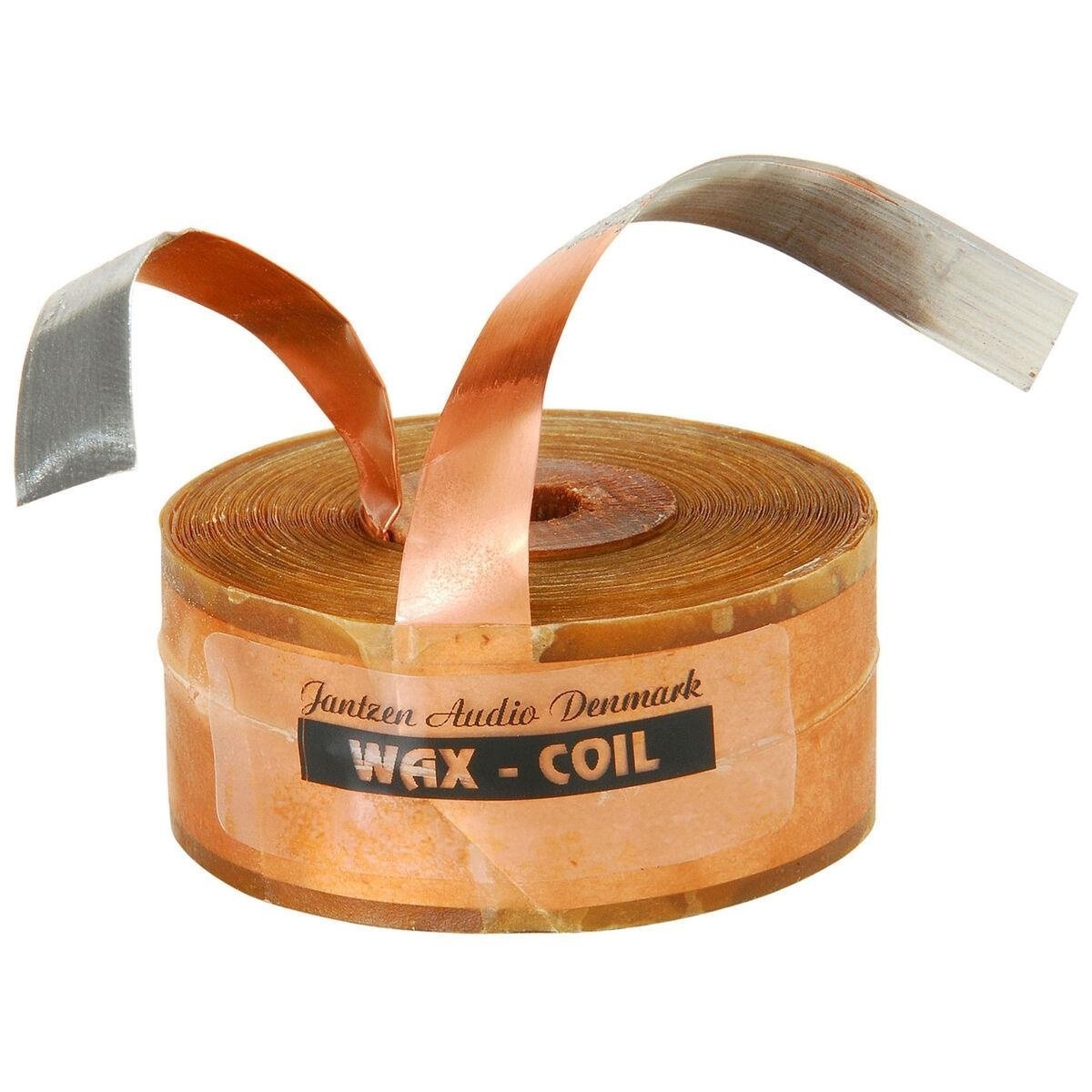

      000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Spule

      Jantzen Audio 000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Spule

      €189,95

      2 Auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Spule
      189,95 € 2 Auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG

      High-quality 5.6 mH wax impregnated copper foil inductor for crossover networks.



      Highlights

      • ETP copper foil ensures superior electron flow and reduced distortion.
      • Special paraffin wax impregnation for longevity and temperature tolerance.
      • Precise inductance of 5.6 mH with a tolerance of +/- 2%.
      • Low DCR of 0.52 Ω, offering excellent power handling.



      Product details

      Jantzen Audio 000-8225 | 5,6 mH | 0,52 Ω | 2% | 12 AWG | Wax Coil



      The Jantzen Audio 000-8225 Wax Coil is a meticulously engineered component designed for crossover networks in high-end audio systems. Made from high-purity ETP copper foil (C11000 / IACS certified), this coil delivers an inductance of 5.6 mH with a tight tolerance of +/- 2%, ensuring precise crossover points and improved sound clarity. The coil's resistance is a low 0.52 Ω, with a tolerance of +/- 5%, providing enhanced power handling and dynamic headroom. Impregnated with a special paraffin wax, the coil is safeguarded against environmental factors, and the wax's high temperature tolerance ensures stability and performance longevity. The insulation consists of a uniquely produced paper, eliminating the risk of air pockets and maintaining the integrity of the windings. This technology results in a coil that not only outperforms single wire-based inductors but also multi-strand wire litz inductors in terms of power handling and dynamic capacity. With its 12 AWG size, the Wax Coil guarantees a larger surface for electron travel, significantly reducing unwanted distortion and preserving the purity of audio signals. The choice of such high-grade materials and the meticulous construction process make the Jantzen Audio 000-8225 an indispensable component for audiophiles seeking to elevate their sound system's performance.

      Eigenschaften

      Artikelnummer:
      000-8225
      EAN
      9509817839298
      Spulen-Typ
      Copper foil coils
      Induktion
      5.6 mH
      Gleichstromwiderstand
      0.52 ohms
      Toleranz
      2%
      Kabeldurchmesser
      12 AWG

      Mehr anzeigen
