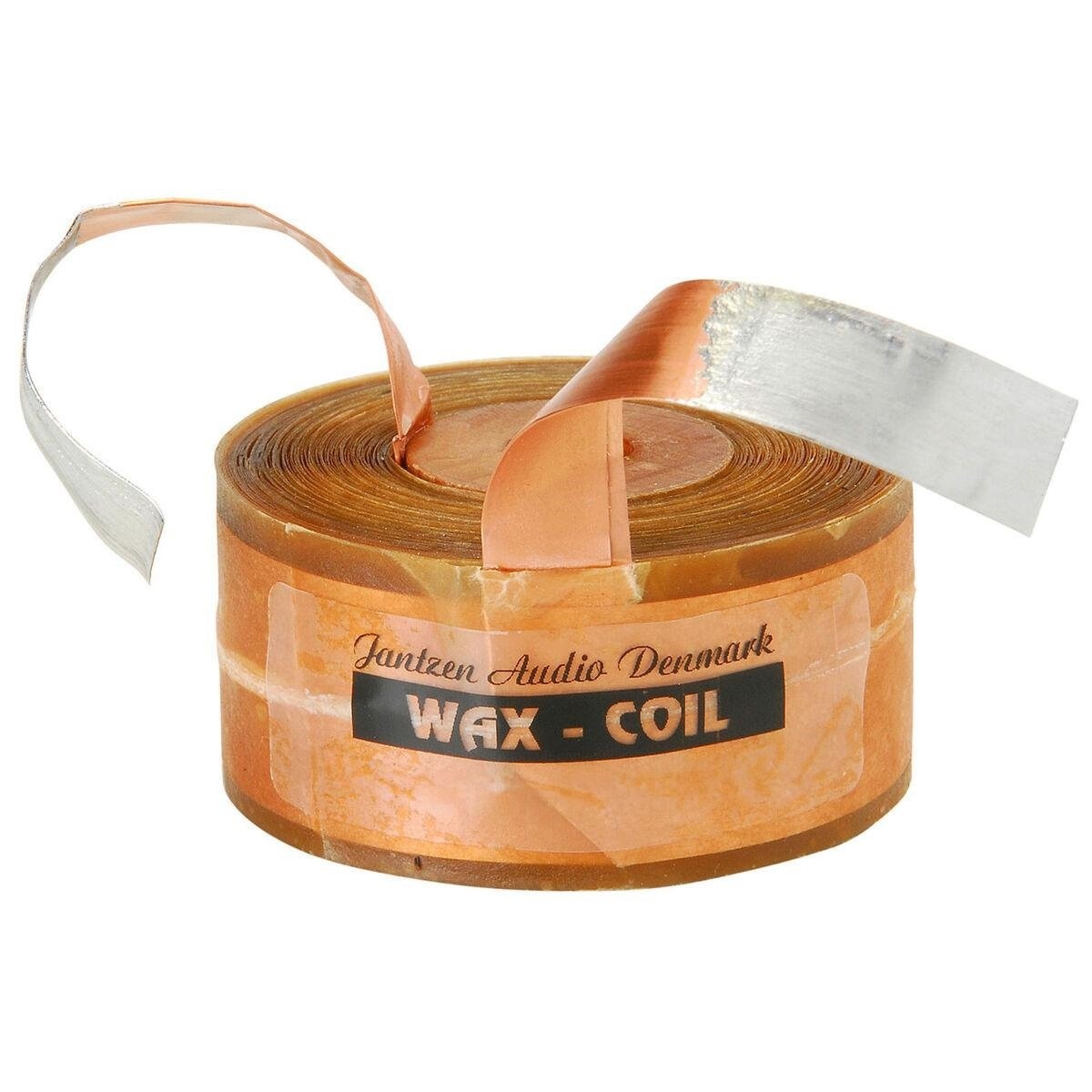

      000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Spule

      Jantzen Audio 000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Spule

      €38,95

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Spule
      38,95 € Nicht auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG

      High-performance 0.42 mH Jantzen Audio Wax Coil with precise 2% inductance tolerance.



      Highlights

      • ETP copper foil for superior electron flow
      • Special paraffin wax impregnation for durability
      • Low DCR at 0.16 Ω for minimal resistance
      • Precision-crafted with +/- 2% inductance tolerance



      Product details

      Jantzen Audio 000-8315 | 0,42 mH | 0,16 Ω | 2% | 14 AWG | Wax Coil



      The Jantzen Audio 000-8315 Wax Coil is a meticulously designed crossover component that stands apart in the realm of copper foil coils. Made with ETP (Electrolytic-Tough-Pitch) copper foil, this coil boasts impeccable purity and conductivity, assuring an unimpeded electron flow. Each coil is crafted to a precision of +/- 2% inductance tolerance, ensuring consistency and reliability in every unit. The DCR (coil resistance) is kept exceptionally low at 0.16 Ω, within a 5% tolerance range, which minimizes power loss and enhances efficiency. One of the most distinctive features of this coil is the special paraffin wax impregnation. This unique method not only protects the copper foil but also maintains the integrity of the windings, guaranteeing decades of high-quality performance. The use of wax also eliminates air pockets, enabling the coil to withstand higher temperatures without compromising its structure. The insulation is a specially produced paper type, carefully selected to complement the wax impregnation process. By choosing the Jantzen Audio 000-8315 Wax Coil, you're opting for a component that delivers on the promise of dynamic headroom, power handling, and reduced distortion, making it an indispensable part of a high-fidelity crossover network.

      Eigenschaften

      Artikelnummer:
      000-8315
      EAN
      9507751121912
      Spulen-Typ
      Copper foil coils
      Induktion
      0.42 mH
      Gleichstromwiderstand
      0.16 ohms
      Toleranz
      2%
      Kabeldurchmesser
      14 AWG

      Mehr anzeigen
