      000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Spule

      Jantzen Audio 000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Spule

      €41,95

      2 Auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Spule
      41,95 € 2 Auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG

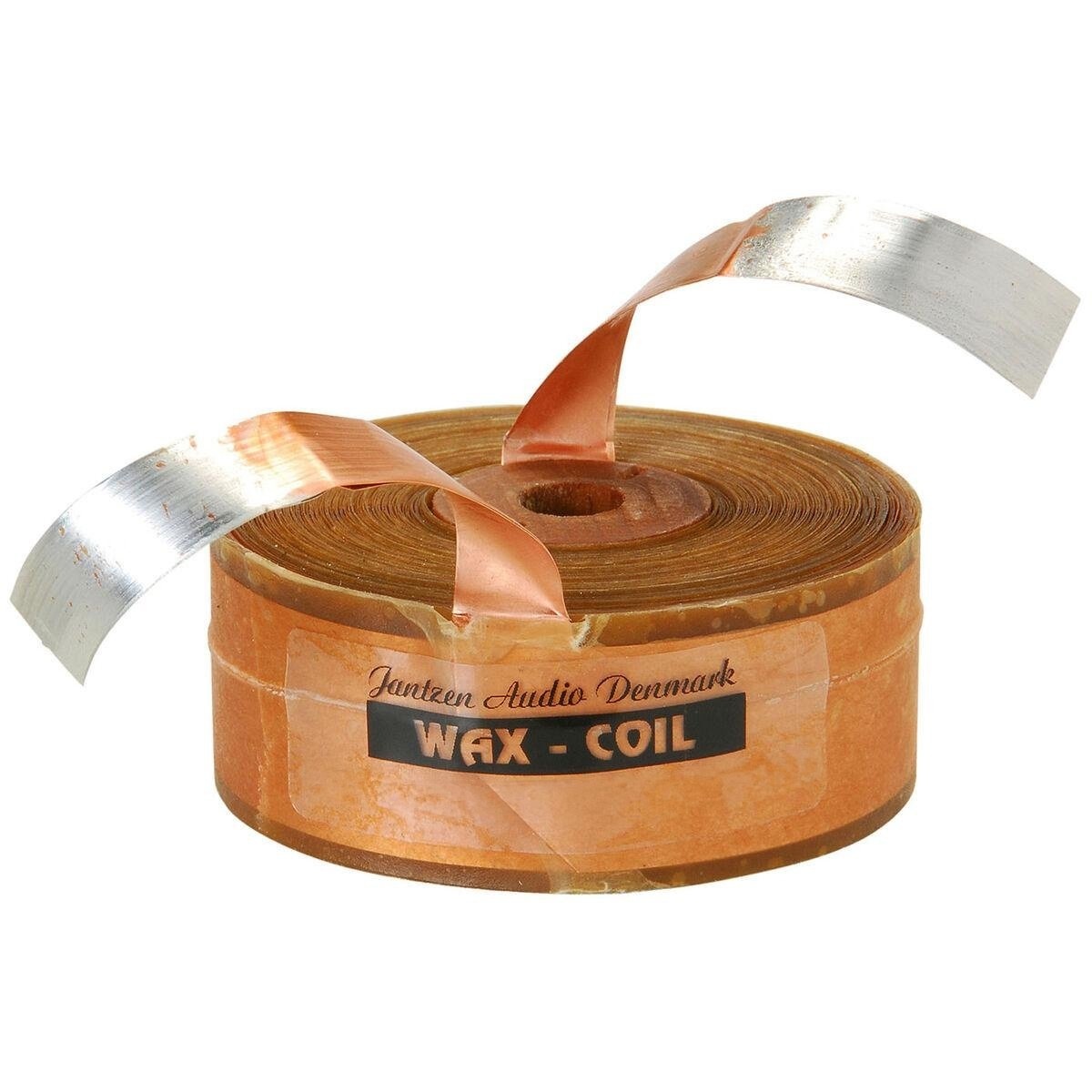

      The Jantzen Audio 000-8320 Wax Coil: precise, powerful inductance for audiophile-grade crossovers.



      Highlights

      • ETP copper foil for superior electron flow and reduced distortion
      • Special paraffin wax impregnation for lasting performance
      • Inductance of 0.47 mH with a tolerance of +/- 2%
      • Low DCR of 0.17 Ω with a tolerance of +/- 5%



      Product details

      Jantzen Audio 000-8320 | 0,47 mH | 0,17 Ω | 2% | 14 AWG | Wax Coil



      The Jantzen Audio 000-8320 Wax Coil is the epitome of excellence in crossover components, designed for those who demand the highest quality in sound. Made with ETP (Electrolytic-Tough-Pitch) copper foil, this coil boasts an IACS certified conductive core, ensuring minimal resistance and maximum efficiency. The coil features an exact inductance of 0.47 mH with an impressively tight tolerance of +/- 2%, providing a precise crossover frequency control. The DCR measures at a low 0.17 Ω, with a tolerance of +/- 5%, delivering a clear and powerful signal. Encased in a special paper insulation and immersed in Jantzen Audio's unique paraffin wax, the 000-8320 is protected against environmental factors and ensures the integrity of the windings over time. This special wax not only eliminates air pockets but also withstands higher temperatures, outperforming natural waxes. The 14 AWG Wax Coil is a significant advancement from the Cross Coil, using wax impregnation to improve on an already exceptional design. With these features, the Jantzen Audio Wax Coil ensures an unyielding, high-fidelity performance for any audiophile's speaker system.

      Eigenschaften

      Artikelnummer:
      000-8320
      EAN
      9501878767275
      Spulen-Typ
      Copper foil coils
      Induktion
      0.47 mH
      Gleichstromwiderstand
      0.17 ohms
      Toleranz
      2%
      Kabeldurchmesser
      14 AWG

      Mehr anzeigen
