      000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Spule

      Jantzen Audio 000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Spule

      €22,45

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Spule
      22,45 € Nicht auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG

      High-precision 0.18mH 16 AWG Wax Coil with excellent temperature tolerance and power handling.



      Highlights

      • Impregnated with specialized paraffin wax for durability
      • Precision-wound ETP copper foil for superior conductivity
      • Optimized for dynamic headroom and low distortion
      • Inductance tolerance of +/- 2% for high fidelity crossover design



      Product details

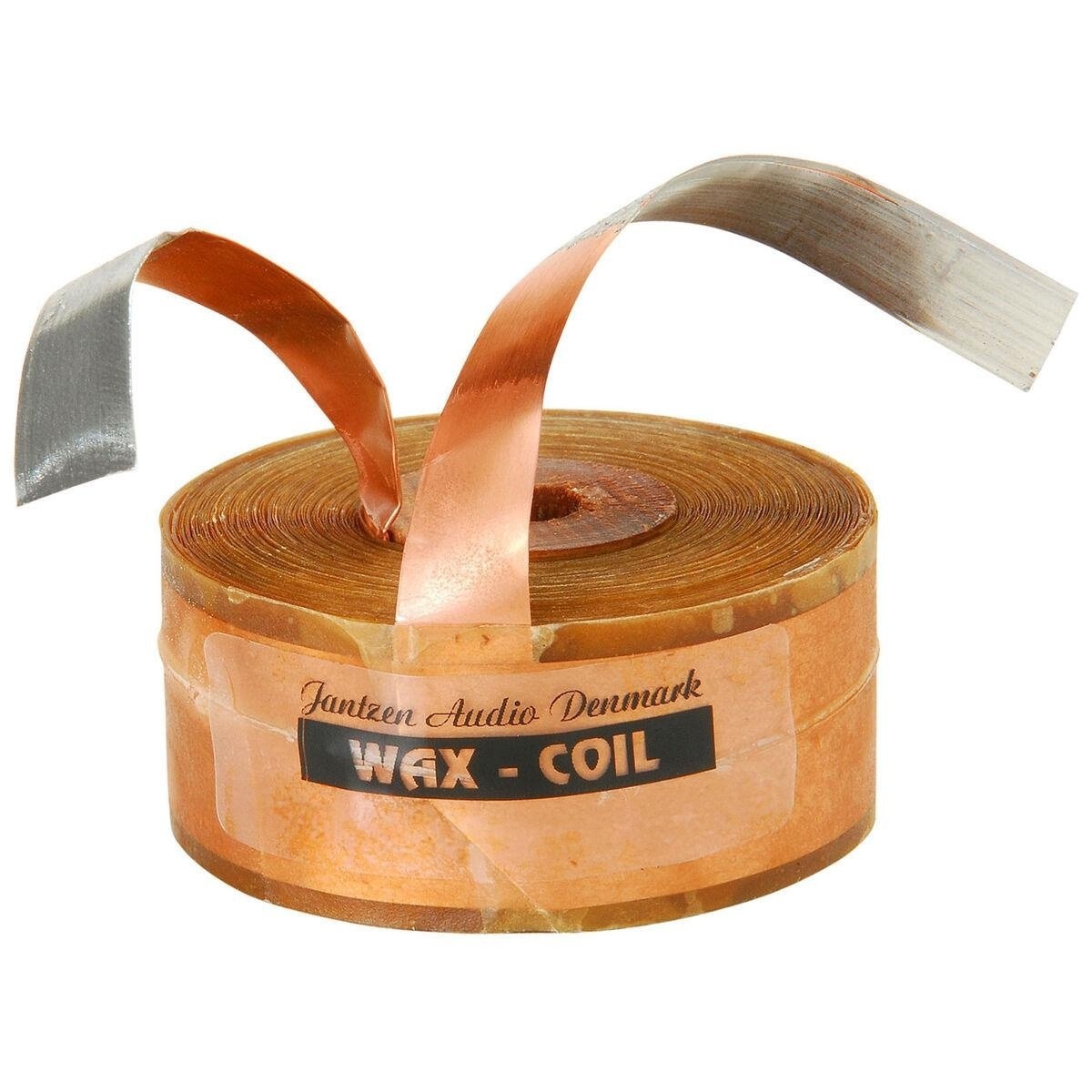

      Jantzen Audio 000-8535 | 0,18 mH | 0,14 Ω | 2% | 16 AWG | Wax Coil



      Introducing the Jantzen Audio 000-8535 Wax Coil, a testament to cutting-edge audio technology and craftsmanship. This 0.18 mH copper foil coil is meticulously designed for high-end crossover components, ensuring the utmost precision in performance. Created with Electrolytic-Tough-Pitch (ETP) copper foil, this coil features exceptional conductivity, certified by the IACS standards and wrapped in a specialized paper insulation. The entire structure is then impregnated with a unique paraffin wax, developed exclusively by Jantzen Audio. This not only protects the coil but eliminates air pockets and increases temperature resilience, outperforming natural waxes like beeswax. The 0.14 ohm resistance and 16 AWG gauge are carefully calibrated within a +/- 5% DCR tolerance, complementing the inductance tolerance of +/- 2%. With the Wax Coil, experience a new echelon of power handling and dynamic range, significantly reducing distortion for a pure and unadulterated audio experience. It's more than a component; it's the heart of your high-fidelity audio system, promising decades of consistent, high-quality sound.

      Eigenschaften

      Artikelnummer:
      000-8535
      EAN
      9509394163182
      Spulen-Typ
      Copper foil coils
      Induktion
      0.18 mH
      Gleichstromwiderstand
      0.14 ohms
      Toleranz
      2%
      Kabeldurchmesser
      16 AWG
