      000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Spule

      Jantzen Audio 000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Spule

      €36,45

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Spule

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Spule
      36,45 € Nicht auf Lager
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG

      High-performance 0.82 mH Jantzen Audio Wax Coil with precise inductance and low resistance.



      Highlights

      • ETP copper foil for superior electron travel
      • Special paraffin wax impregnation for durability
      • Low 0.33 Ω resistance for efficient signal transmission
      • Inductance tolerance of +/- 2% for accurate crossover construction



      Product details

      Jantzen Audio 000-8620 | 0,82 mH | 0,33 Ω | 2% | 16 AWG | Wax Coil

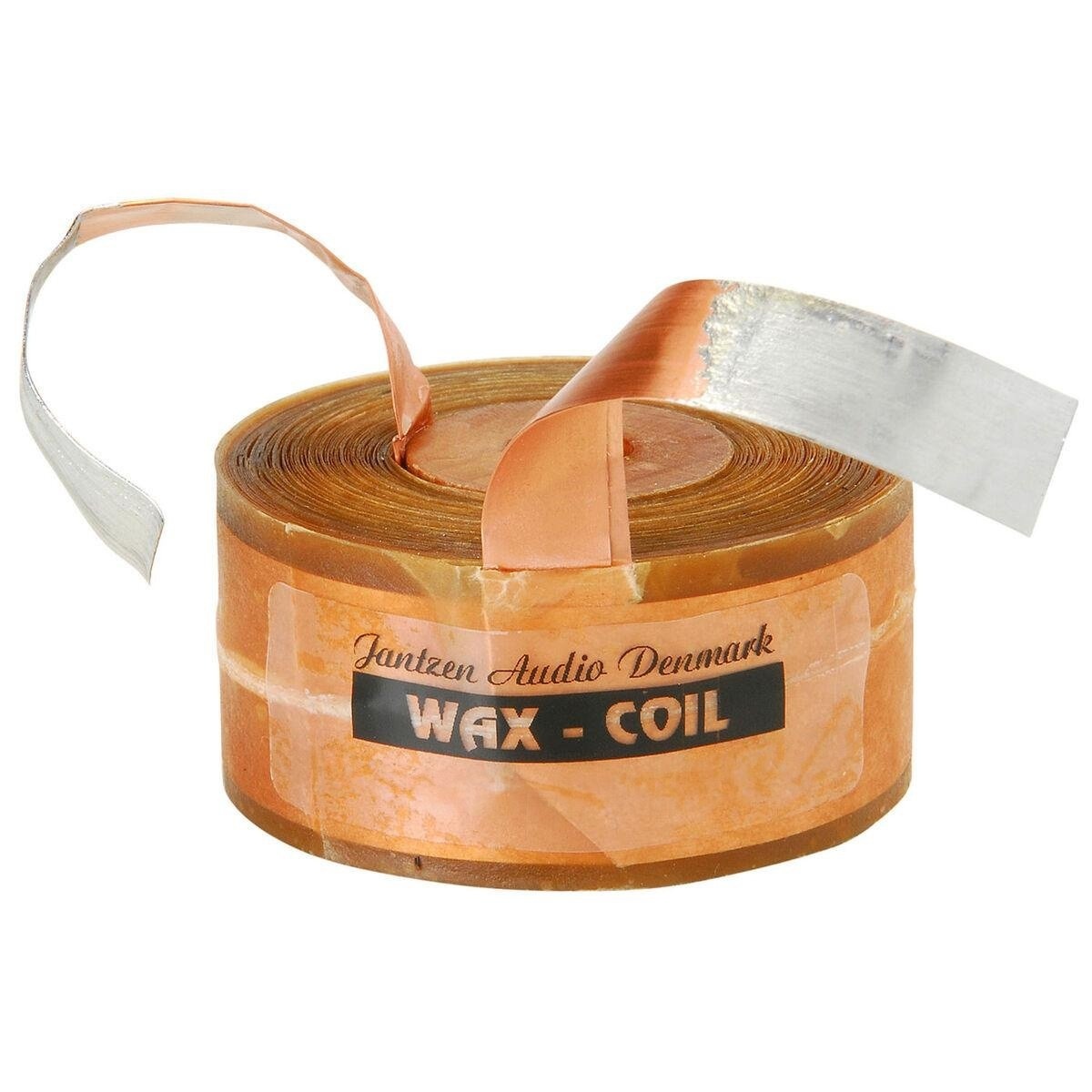

      The Jantzen Audio 000-8620 Wax Coil is a pinnacle of crossover component engineering, designed to provide audiophiles and audio system builders with a high-grade inductor option. This 0.82 mH coil, constructed with Electrolytic-Tough-Pitch (ETP) copper foil, is crafted to ensure optimal electron flow and minimal distortion, enhancing the audio signal purity. The coil's C11000 / IACS certification attests to the quality and conductivity of the copper used. A special paraffin wax impregnation sets this coil apart by protecting the copper foil and ensuring the stability of windings under various conditions, offering a higher temperature tolerance than natural waxes. The precise inductance tolerance of +/- 2% and a DCR tolerance of +/- 5% guarantee accurate performance in the critical crossover network of high-fidelity speakers. Paper insulation further maintains the integrity of the coil. This Wax Coil is not only a testament to Jantzen Audio's commitment to innovation but also an essential component for anyone looking to construct or upgrade their speaker crossovers with minimal signal loss and maximal audio clarity.

      Eigenschaften

      Artikelnummer:
      000-8620
      EAN
      9501377631886
      Spulen-Typ
      Copper foil coils
      Induktion
      0.82 mH
      Gleichstromwiderstand
      0.33 ohms
      Toleranz
      2%
      Kabeldurchmesser
      16 AWG

      Mehr anzeigen
