      000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule

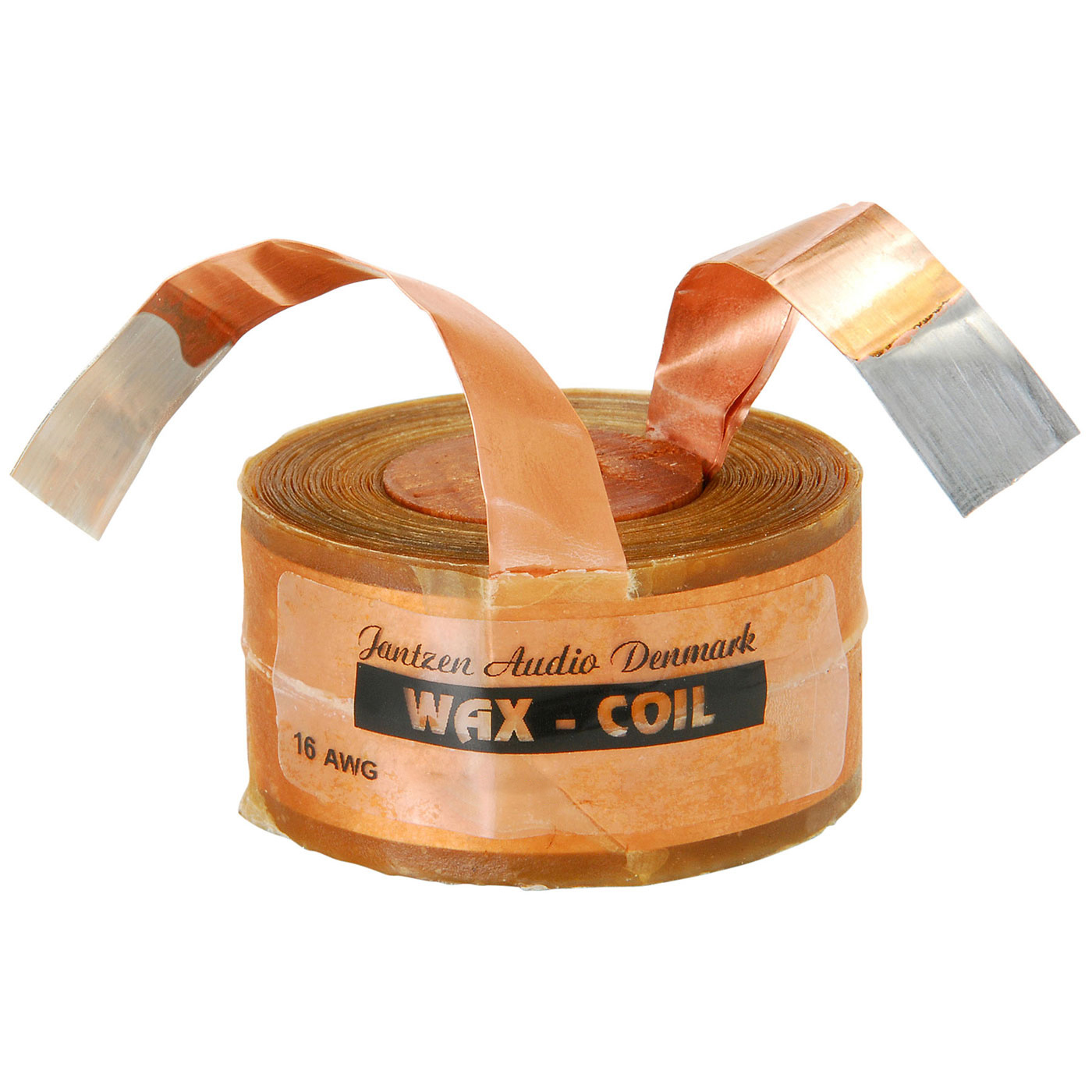

      Jantzen Audio 000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule

      €39,95

      3 Auf Lager

      Zum Warenkorb hinzufügen

      Jantzen Audio 000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule

      1 reviews
      5 von 5
      1 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Jantzen Audio
      Zeige alle Kupferfolienspulen
      000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule
      33,02 €39,95 € 3 Auf Lager
      • -5% Bestelle 4 für nur 37,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule

      Produktbeschreibung Jantzen Audio 000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Coil

      The insulation used for Wax Coils consist of a specially produced paper type and then the whole coil is impregnated with a unique paraffin wax, especially developed for Jantzen Audio. Superior to natural waxes, this special paraffin wax ensures that there are no air-pockets trapped in the wax and has a higher temperature tolerance, compared to i.e. beeswax.



      Highlights

      • Made from ETP (Electrolytic-Tough-Pitch) copper foil
      • The copper foil is C11000 / IACS certified
      • The coil is impregnated with a special parafine wax
      • Each Wax Coil is tested with the Clio system as part of quality control
      • Insulation: Special paper



      Product details

      Jantzen Audio 000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Coil



      The Wax Coil is the innovation level for foil based audio-grade inductors. It is a high performance foil inductor offering improved power handling and dynamic head room. The wax impregnation insures the copper foil and winding integrity for decades of high performance. Using pure copper foil we have insured a better surface for electron travel and a better distortion reduction compared to single-wire based inductors. The Wax Coil is a further development of the Cross Coil, using the wax impregnation to further secure the tightness of windings.



      All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



      Specifications: Power handling: 16 AWG – approx. 350 watts RMS • RDC tolerance: +/- 5% • Resistance Inductance tolerance: +/- 2%.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      000-8625
      EAN
      8785256839094
      Spulen-Typ
      Copper foil coil
      Induktion
      0.9 mH
      Gleichstromwiderstand
      0.36 ohms
      Toleranz
      2%
      Kabeldurchmesser
      16 AWG
      Belastbarkeit
      350 watts
      Abmessungen Ø * H (mm)
      71 x 25

      Mehr anzeigen

      Bewertungen

      1 reviews
      Produkt bewerten
      5 von 5
      It’s exactly like the advertisement on the website.
      Durch Pablo on 19 Januar 2023
      000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule
      33,02 €
      39,95 €
      000-8625 | 0,90 mH | 0,36 Ω | 2% | 16 AWG | Wax Spule
      3 Auf Lager
      Zum Warenkorb hinzufügen
