Name: Mundorf P50-3,9 | 3,9 mH | 1,81 Ω | 3% | 24 AWG | MCoil Ferrite PipeCore Spule
Brand: Mundorf
SKU: P50-3,9
Price: 10.45 EUR
Availability: InStock

P50-3,9 | 3,9 mH | 1,81 Ω | 3% | 24 AWG | MCoil Ferrite PipeCore Spule

8,64 €10,45 € 10+ Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Mundorf P50-3,9 | 3,9 mH | 1,81 Ω | 3% | 24 AWG

MCoil Foil coils are wound layer by layer and are of particularly low-capacitive, even though their similarity to our foil wound capacitors would suggest otherwise. Ferrite Cores are sintered from a metal-plastic-powder.

Highlights

Solid core copper wire coil core
Made in Germany
Compact dimensions and a reasonable price/performance-ratio

Product details

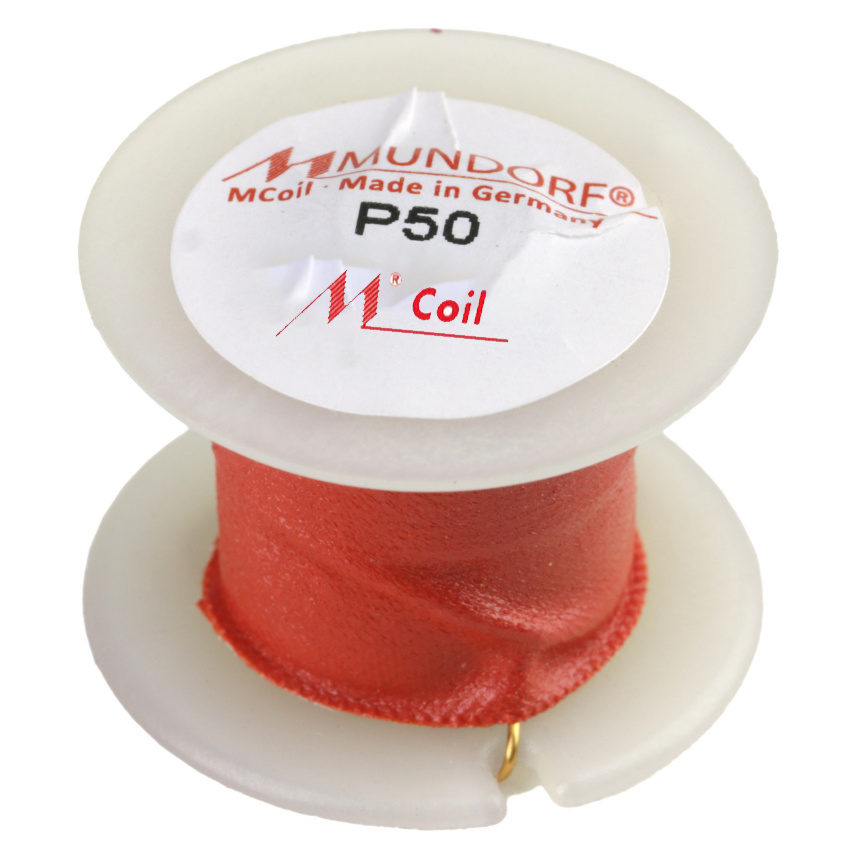

Mundorf P50-3,9 | 3,9 mH | 1,81 Ω | 3% | 24 AWG | MCoil Ferrite PipeCore crossover coil

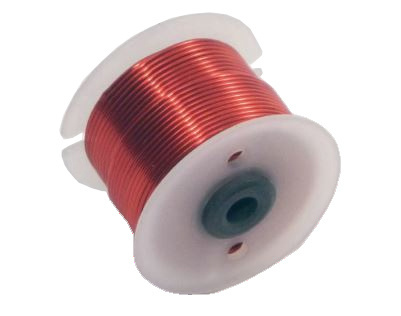

The smaller MCoil FERRITE PipeCore Coils made from solid core copper wire, have been specially developed for mid, low and parallel applications, for which compact dimensions and a reasonable price/performance-ratio are of essential importance as given for, e.g., adjustment devices or car audio crossovers.

The tonal qualities of the F series and its much satisfying music performance can yet be enhanced by Baked Wire Treatment as shown for the BF series.

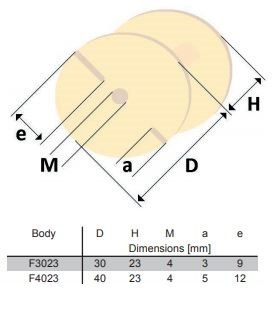

Specifications: OFC-Copper 99.99% • Coil form: PA, fibre-glass reinforced • Coil body heat resistant up to max. 230°C/446°F Ø 0,50 mm • Body: F3023
