      SB16PFCR25-4 Paper Tiefmitteltöner

      SB Acoustics SB16PFCR25-4 Paper Tiefmitteltöner

      €36,45

      Nicht auf Lager

      Zum Warenkorb hinzufügen

      SB Acoustics SB16PFCR25-4 Paper Tiefmitteltöner

      1 reviews
      5 von 5
      1 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: SB Acoustics
      Zeige alle Neue Produkte
      6" | 4 Ω
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner+2
      36,45 € Nicht auf Lager
      • -5% Bestelle 4 für nur 34,63 € je Stück
      +-
      Zum Warenkorb hinzufügen
      • Wir versenden nach United States of America
      • Bald wieder auf Lager
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner
      SB16PFCR25-4 Paper Tiefmitteltöner

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Vented coil former for low compression and Soft low damping rubber surround for improved transient response

      Produktbeschreibung SB Acoustics SB16PFCR25-4 Tiefmitteltöner

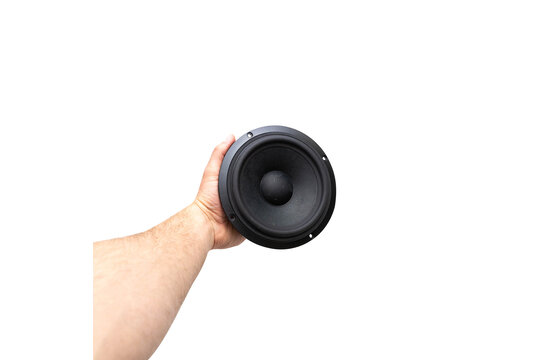

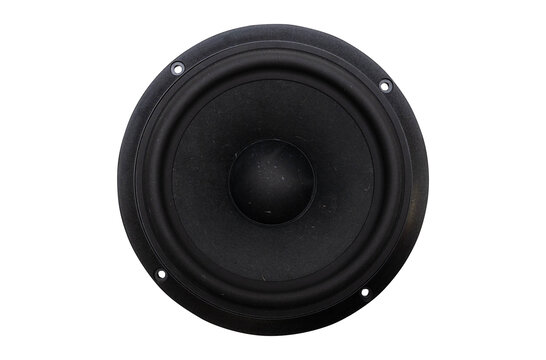

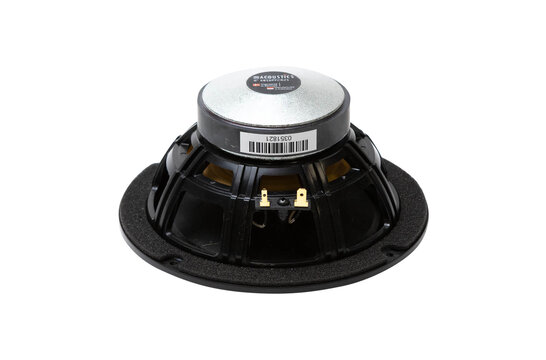

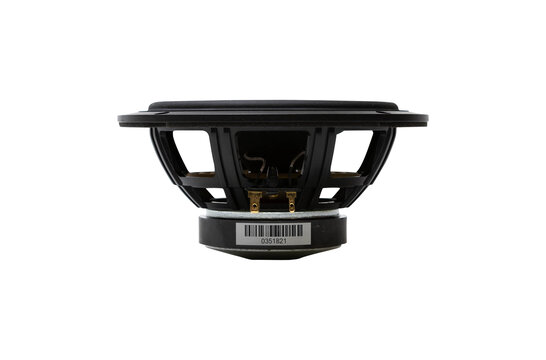

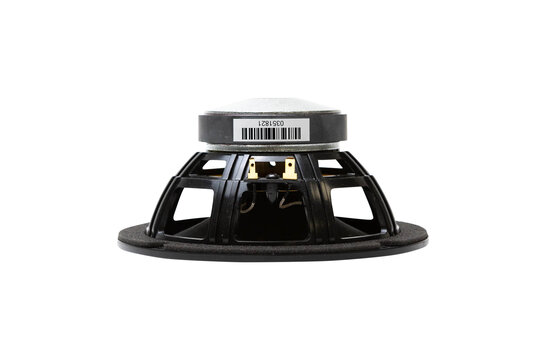

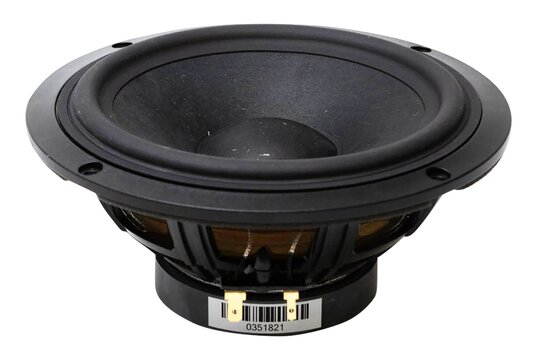

      The SB Acoustics SB16PFCR25-4 is a 6" mid-woofer with a 25mm voice coil and a vented reinforced plastic chassis. It features a proprietary cone material with natural fibers made in-house and a soft low damping rubber surround for improved transient response. The optimized motor system and vented coil former for low compression are also noteworthy features of this mid-woofer.



      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Optimized motor system
      • Vented coil former for low compression
      • Non-resonant long life lead wires



      Product details

      SB Acoustics SB16PFCR25-4 Paper Bass-midwoofer



      The SB Acoustics SB16PFCR25-4 is a mid-woofer that is designed to reproduce frequencies in the range of 35 Hz to 4 kHz. It is suitable for use in a two-way speaker system or as a mid-woofer in a three-way system. The vented reinforced plastic chassis helps to reduce unwanted resonances and the proprietary cone material with natural fibers made in-house provides a good balance between stiffness and damping. The soft low damping rubber surround helps to improve the transient response of the driver. The optimized motor system and vented coil former for low compression help to reduce distortion and improve power handling.



      The SB Acoustics SB16PFCR25-4 is a 6-inch paper cone woofer with a 4-ohm nominal impedance. It has a free-air resonance of 35 Hz and a sensitivity of 89.5 dB. This is a versatile woofer that can be used in a variety of applications, including home audio, car audio, and professional audio. It is well-suited for use in sealed and ported enclosures, and it can handle up to 40 watts of continuous power.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SB16PFCR25-4
      EAN
      8785256848157
      Tieftöner-Serie
      SB Acoustics PFC Paper series
      Nenndurchmesser
      176 mm
      Belastbarkeit (QMW)
      40 Watt
      Impedanz (Z)
      4 Ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      89.5 dB

      Mehr anzeigen

      Bewertungen

      1 reviews
      Produkt bewerten
      5 von 5
      Great woofer for DIY projects, can be used as a midrange in a 3-way or as a mid-bass in a 2-way ported or sealed. very versatile
      Durch Hugo Mottet on 10 April 2025
