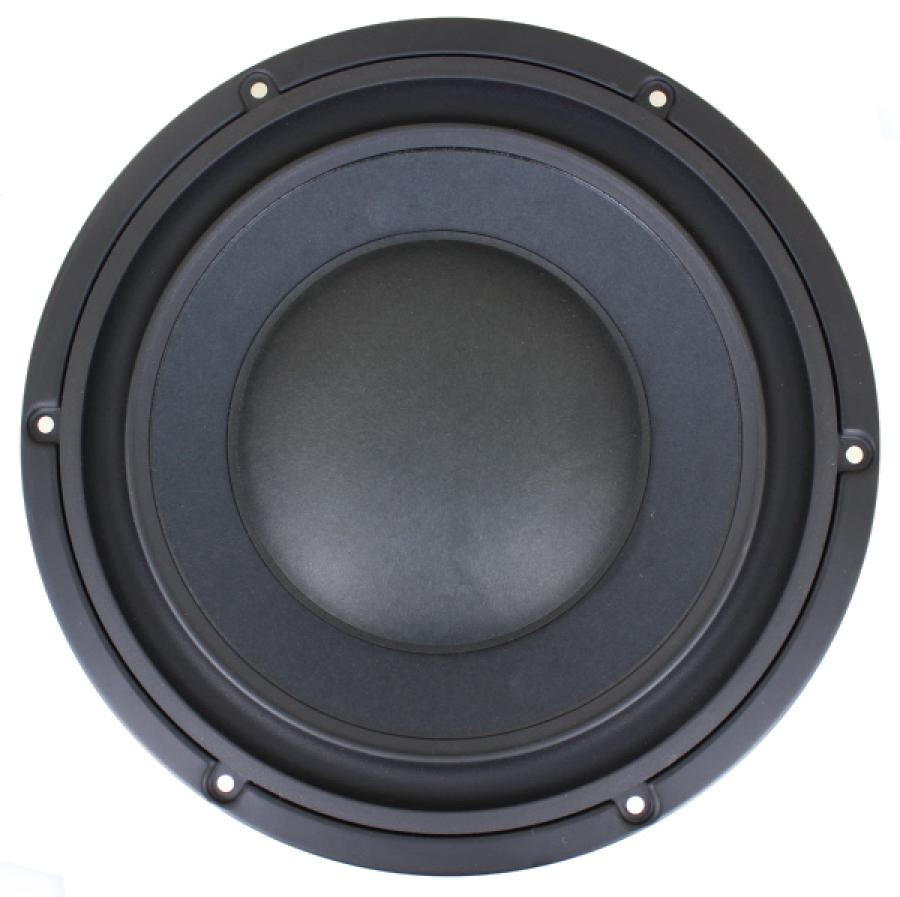

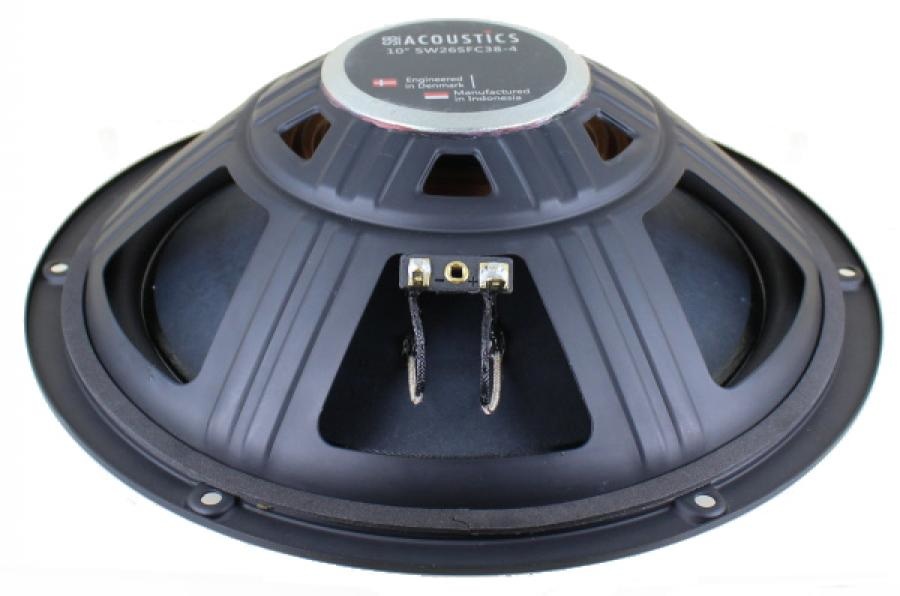

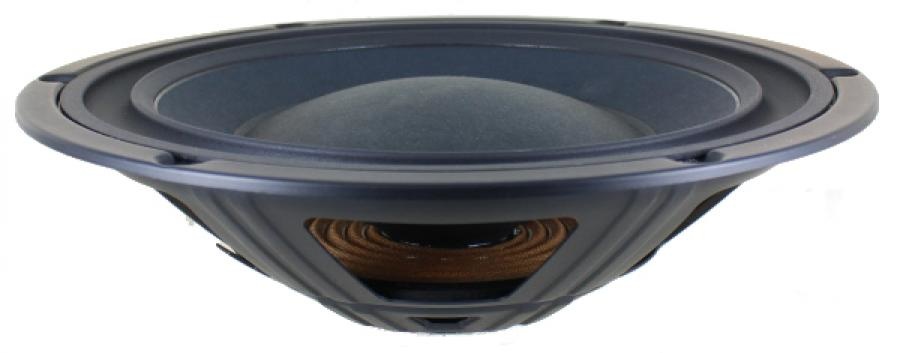

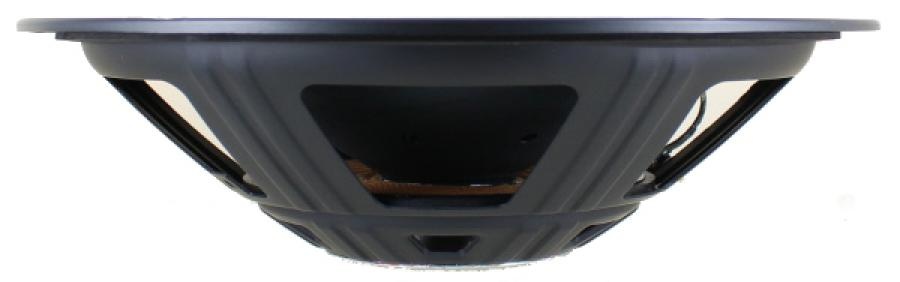

Name: SB Acoustics SW26SFC38-4 Paper Shallow Subwoofer Tieftöner
Brand: SB Acoustics
SKU: SW26SFC38-4
Price: 99.95 EUR
Availability: InStock

10'' | 4 Ω

SW26SFC38-4 Paper Shallow Subwoofer Tieftöner

82,60 €99,95 € 2 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung SB Acoustics SW26SFC38-4 Shallow Subwoofer

Highlights

Nominal impedance, 4 Ω
DC resistance, Re 3.5 Ω
Voice coil inductance, Le 1.27 mH
Effective piston area, Sd 340 cm²
Voice coil diameter 38.5 mm
Voice coil height 16 mm
Air gap height 9 mm
Linear coil travel (p-p) 7 mm
Magnetic flux density 0.72 T
Magnet weight 0.1 kg
Net weight 0.94 kg
Free air resonance, Fs 27 Hz
Sensitivity (2.83 V / 1 m) 91.5 dB
Mechanical Q-factor, Qms 4.94
Electrical Q-factor, Qes 0.30
Total Q-factor, Qts 0.29
Moving mass incl.air, Mms 64 g
Force factor, BI 11.2 Tm
Equivalent volume, Vas 88 liters
Compliance, Cms 0.54 mm/N
Mechanical loss, Rms 2.2 kg/s
Rated power handling* 80 W

Product details

SB Acoustics SW26SFC38-4 Shallow Subwoofer

Shallow light weight design. Hard pressed vented paper cone (made in-house). Inverted low damping rubber surround. Symmetric suspension. Stacked neodymium motor with built-in soft limiting. Non-conducting fiber glass coil former. long life lead wires.
