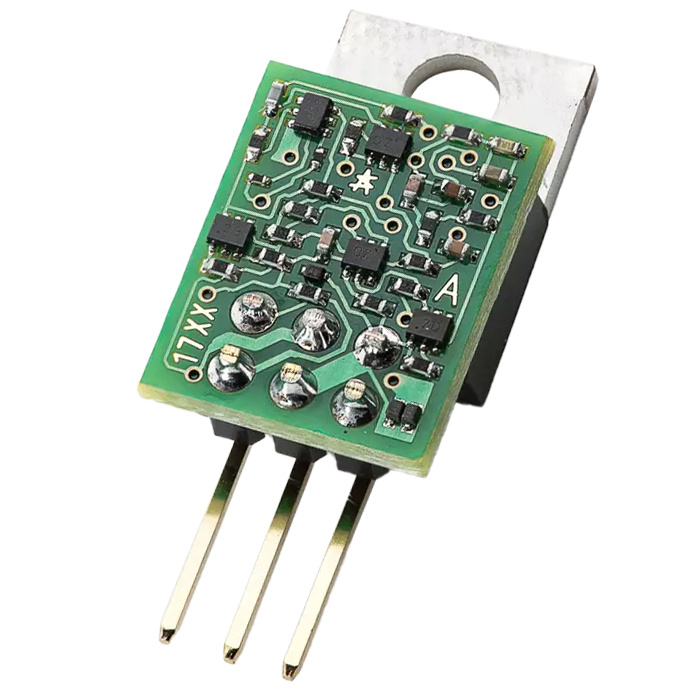

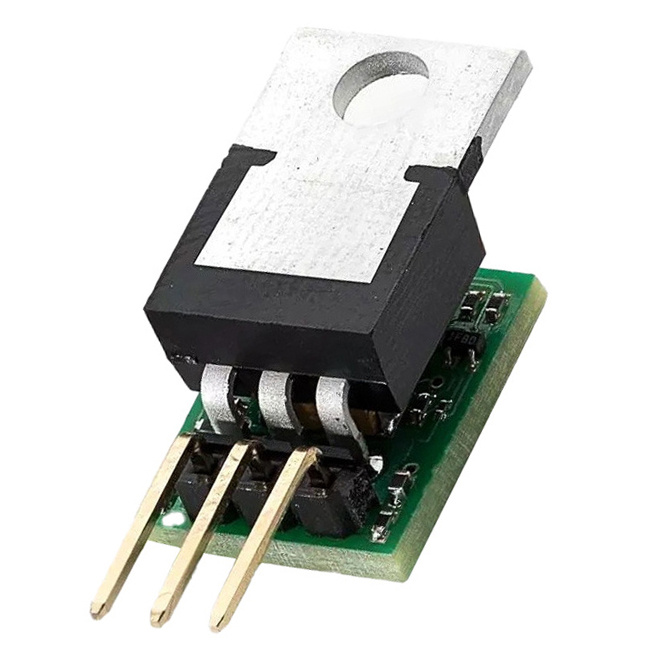

      SS1117-05 Discrete Voltage Regulator +5V

      SparkoS SS1117-05 Discrete Voltage Regulator +5V

      €44,95

      5 Auf Lager

      Zum Warenkorb hinzufügen

      SparkoS SS1117-05 Discrete Voltage Regulator +5V

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: SparkoS
      Zeige alle Voltage regulators
      +5V
      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V
      37,15 €44,95 € 5 Auf Lager
      • -5% Bestelle 4 für nur 42,70 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V
      SS1117-05 Discrete Voltage Regulator +5V

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Compatible with LM317 and LM1117
      • Output Current Of 1 Amp with proper heat sinking

      Produktbeschreibung SparkoS SS1117-05 Voltage Regulator +5V

      The SS1117-05 is a discrete voltage regulator, part of Sparkos Labs' SS1117XX series, designed to provide stable, low-noise +5V output in a TO-220-compatible package. This series emphasizes enhanced noise rejection, superior load regulation, and transient response, making it an ideal choice for high-performance applications where reliability and stability are critical.



      Highlights of the Sparkos Labs SS1117-05 Voltage Regulator

      • Exceptional Noise Rejection: Provides 125 dB of input rejection for clean, stable output.
      • Low Output Noise: Features an output noise level of 3.2µV RMS over a 20 kHz bandwidth.
      • High Load Capacity: Capable of 1A output current with appropriate heat sinking.
      • Robust Protection: Includes overcurrent protection and an onboard decoupling capacitor for improved stability.
      • LM317 LM1117-05 (and XX) is compatible with LM317 and LM1117



      Product Details for Sparkos Labs SS1117-05 Voltage Regulator

      The Sparkos Labs SS1117-05 is a high-quality discrete voltage regulator delivering a steady +5V output. It includes a fully discrete error amplifier, with an onboard ceramic-capacitor-compatible design to maintain stability across various conditions. Ideal for sensitive electronic applications, the SS1117-05 regulates output with a 2mV load variation and is fully protected against current overloads, ensuring longevity and robust performance.



      The SS1117-05 regulator is a preferred replacement for monolithic regulators, leveraging discrete design advantages such as reduced noise and superior transient response, making it particularly effective in audio and precision electronic applications.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SS1117-05
      EAN
      9509695284173
      Max Output Power
      5 Watts
      Output Voltage (V)
      5 Volt
      Output Current (A)
      1 Amp with proper heat sinking
      Ripple & noise (max.)
      3.2uV RMS Output oise, 2mV Load Regulation
      Mains voltage input
      40 Volt (max. Not recommended)
      Protection
      Over Current Protection
      Tye of cooling
      Heat sink is necessary

      Mehr anzeigen
