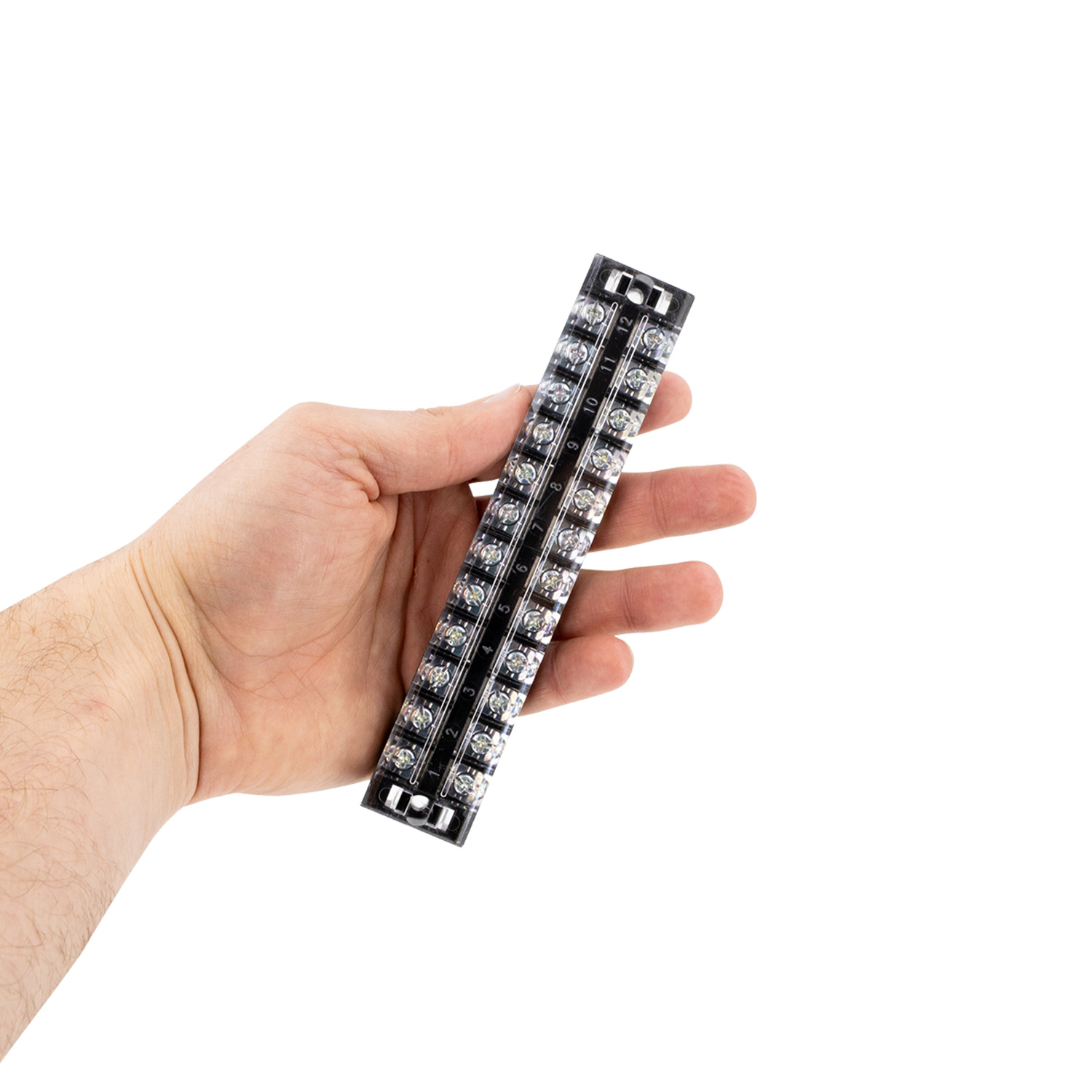

        12 Pole Barrier Terminal Strip with Plastic Cover

        12 Pole Barrier Terminal Strip with Plastic Cover

        €7,25

        2 In stock4 expected on 27-12-2024

        Add to cart

        12 Pole Barrier Terminal Strip with Plastic Cover

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Show all Screw terminals
        25A
        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover
        € 5,99€ 7,25 2 In stock4 expected on 27-12-2024
        • -10% Purchase 4 for only € 6,53 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover
        12 Pole Barrier Terminal Strip with Plastic Cover

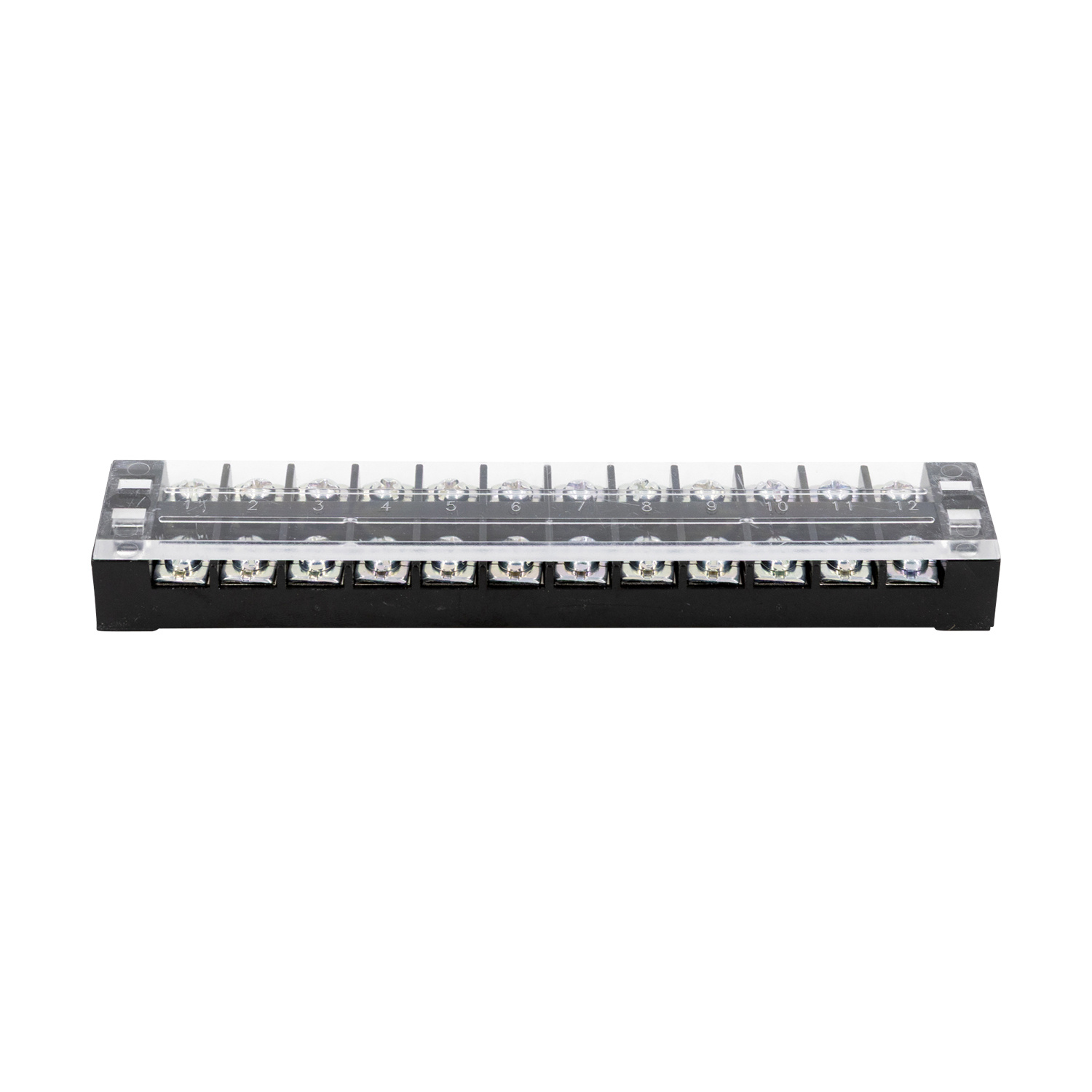

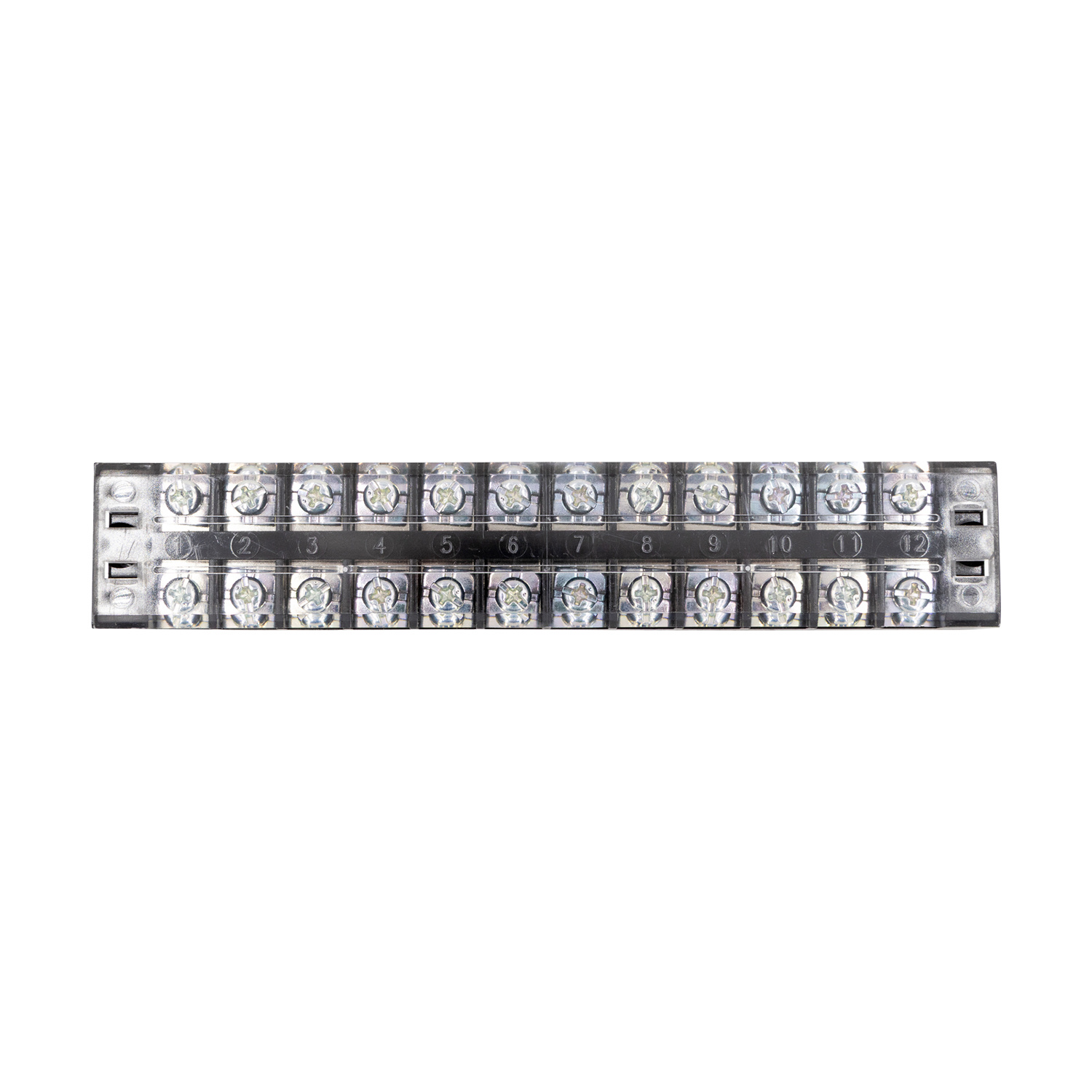

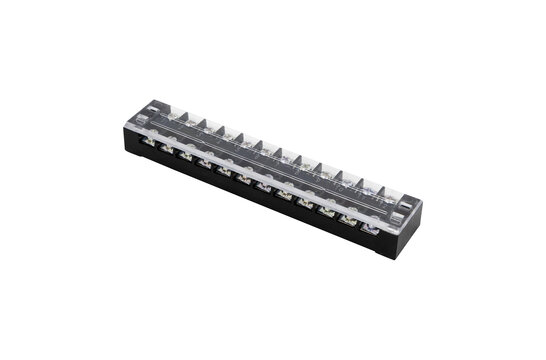

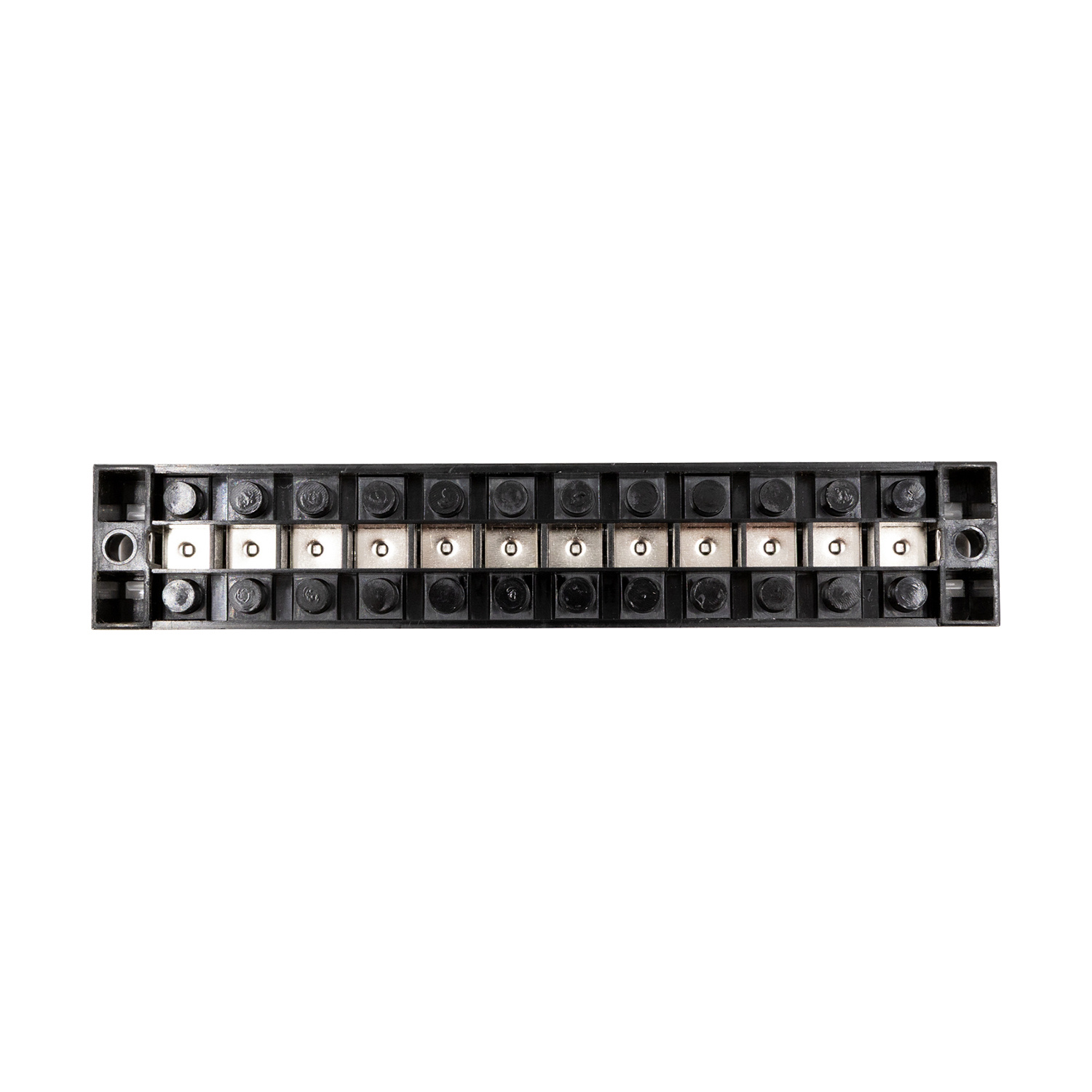

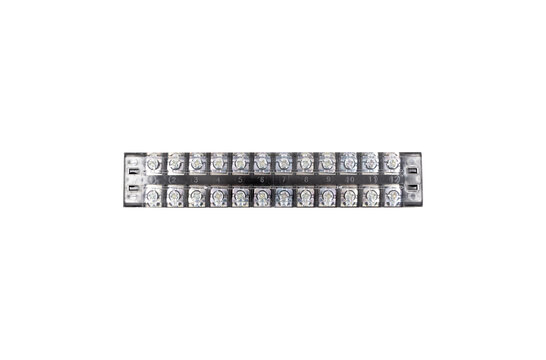

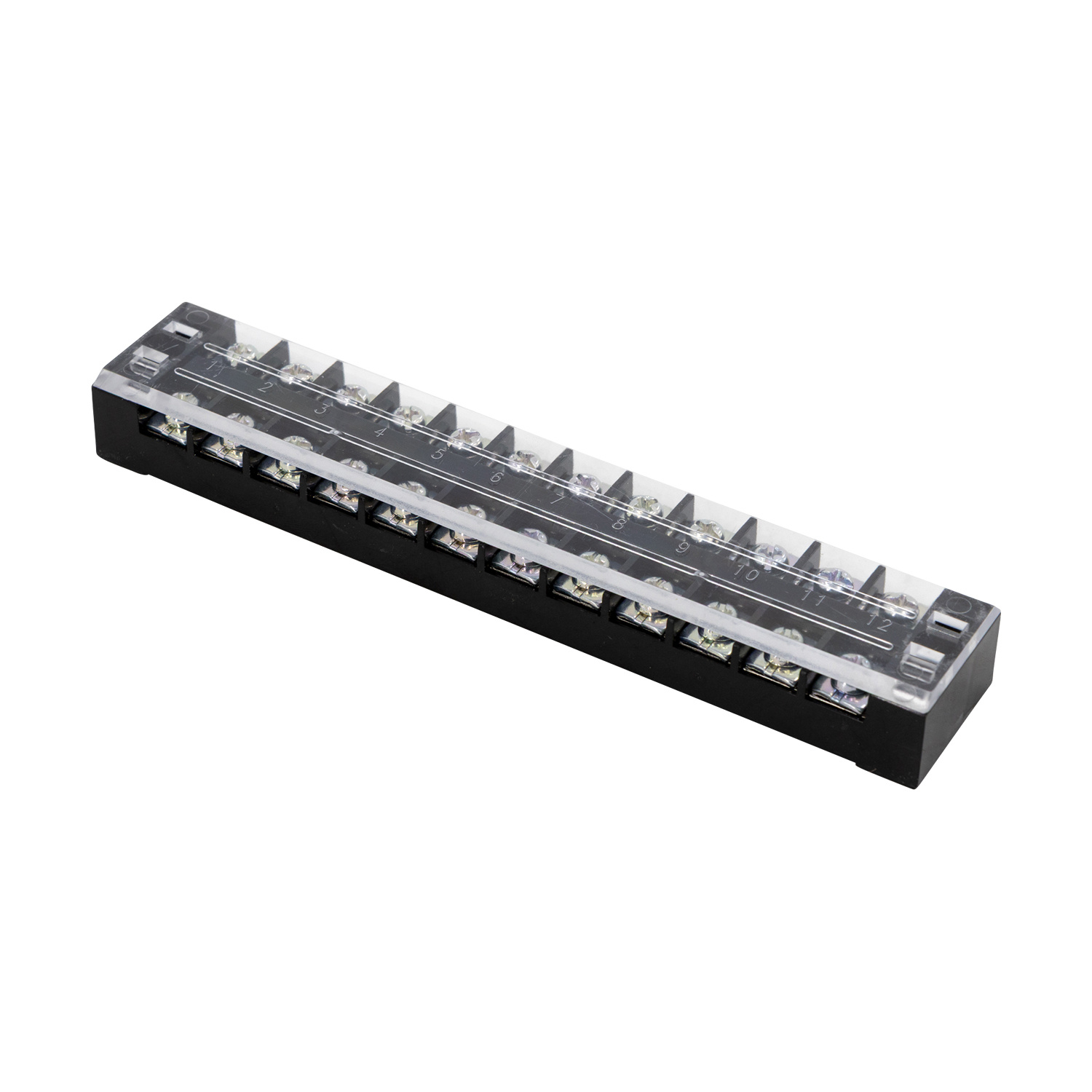

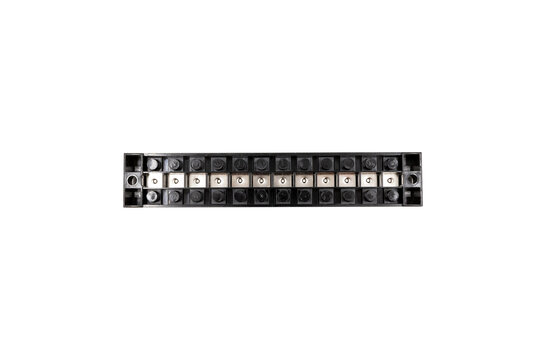

        Product description 12 Pole Barrier Terminal Strip with Plastic Cover

        Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 25 amp current rating make it great for automotive power distribution.



        Highlights

        • Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
        • Brass conductors provide great connectivity

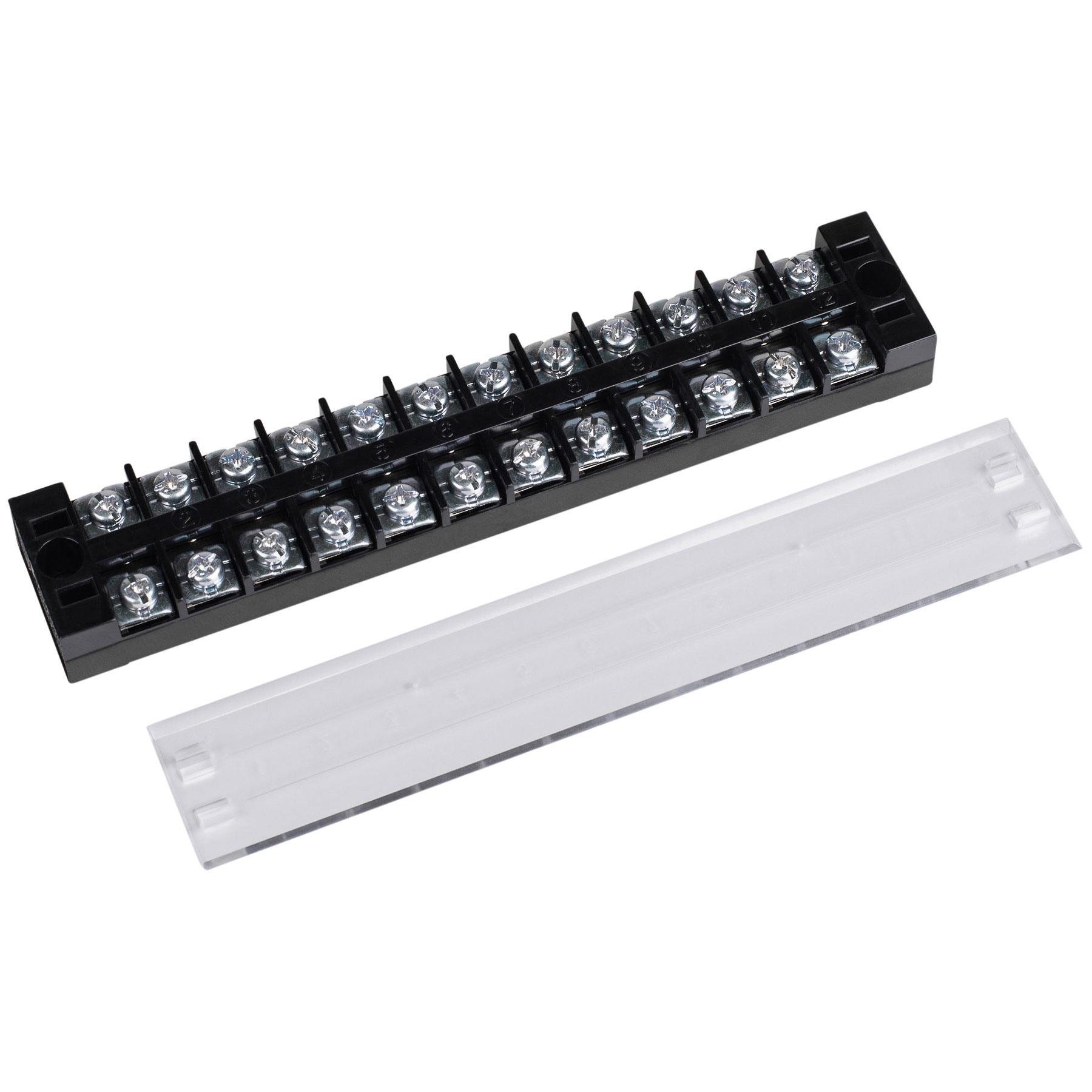

        • Snap-on clear plastic cover helps prevent accidental short circuits
        • One 5.1 mm mounting hole on each side for a secure hold



        Product Details

        12 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover



        This heavy-duty double row barrier strip is perfect for running multiple automotive accessories from one power source. On one side of the terminal strip, connect all twelve screws together with short jumper wires. From that same side run a hot wire to the fuse box or positive battery terminal. The other side of the strip now has twelve hot terminals to power twelve different accessories items as long as their amperage does not add up to over 25 amps. This eliminates running multiple wires to one terminal on the fuse box or battery. Ground the accessory item to a metal chassis screw closest to it and you're done. Snapping the clear plastic cover over the top of the terminal strip helps prevent accidental contact with metal materials. Recommend fusing the main hot wire.



        Specifications: • Dimensions: 164 mm L x 30 mm W x 19.5 mm • Gap: 10 mm • Pitch: 12 mm • Screws: M4 • Max voltage: 600 V • Max current: 25A • Max temperature: 110° C (230° F) • Poles: 12.

        Show more

        Specifications

        Article number
        090-849
        EAN
        0848864044064

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5

        Mooi product en snel verzonden.

        By de Beer on 9 February 2022
