- Article number
- C158-8-085
- EAN
- 8785256847389

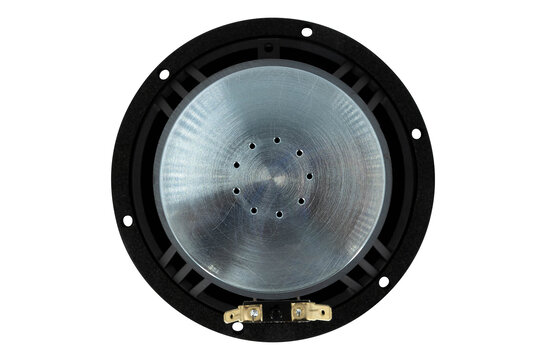

- Woofer Type
- Bass-midwoofer
- Nominal Diameter
- 6.25"
- Power Handling (RMS)
- 100 Watts
- Sensitivity (SPL at 1m / 2.83V)
- 87.5 dB
- Voice Coil Diameter
- 25 mm
- DC Resistance (Re)
- 8.1 OHM
- Voice Coil Inductance (Le)
- 0.54mH
- Resonant Frequency (Fs)
- 37 Hz
- Mechanical Q (Qms)
- 4.91
- Electromagnetic Q (Qes)
- 0.39
- Total Q (Qts)
- 0.36
- Diaphragm Mass Inc. Airload (Mms)
- 12.1 grams
- Mechanical Compliance of Suspension (Cms)
- 1.5 MM/N
- Surface Area of Cone (Sd)
- 113 Cm2
- BL Product (BL)
- 7.7 N/A
- Compliance Equivalent Volume (Vas)
- 27.3 L
- Maximum Linear Excursion (Xmax)
- 5 mm
- Driver's Mechanical Losses (Rms)
- 0.58 Kg's
- Voice Coil Former
- TI
- Overall Outside Diameter
- 158 MM
- Overall Depth
- 82 MM
- Baffle Cutout Diameter
- 137 MM
