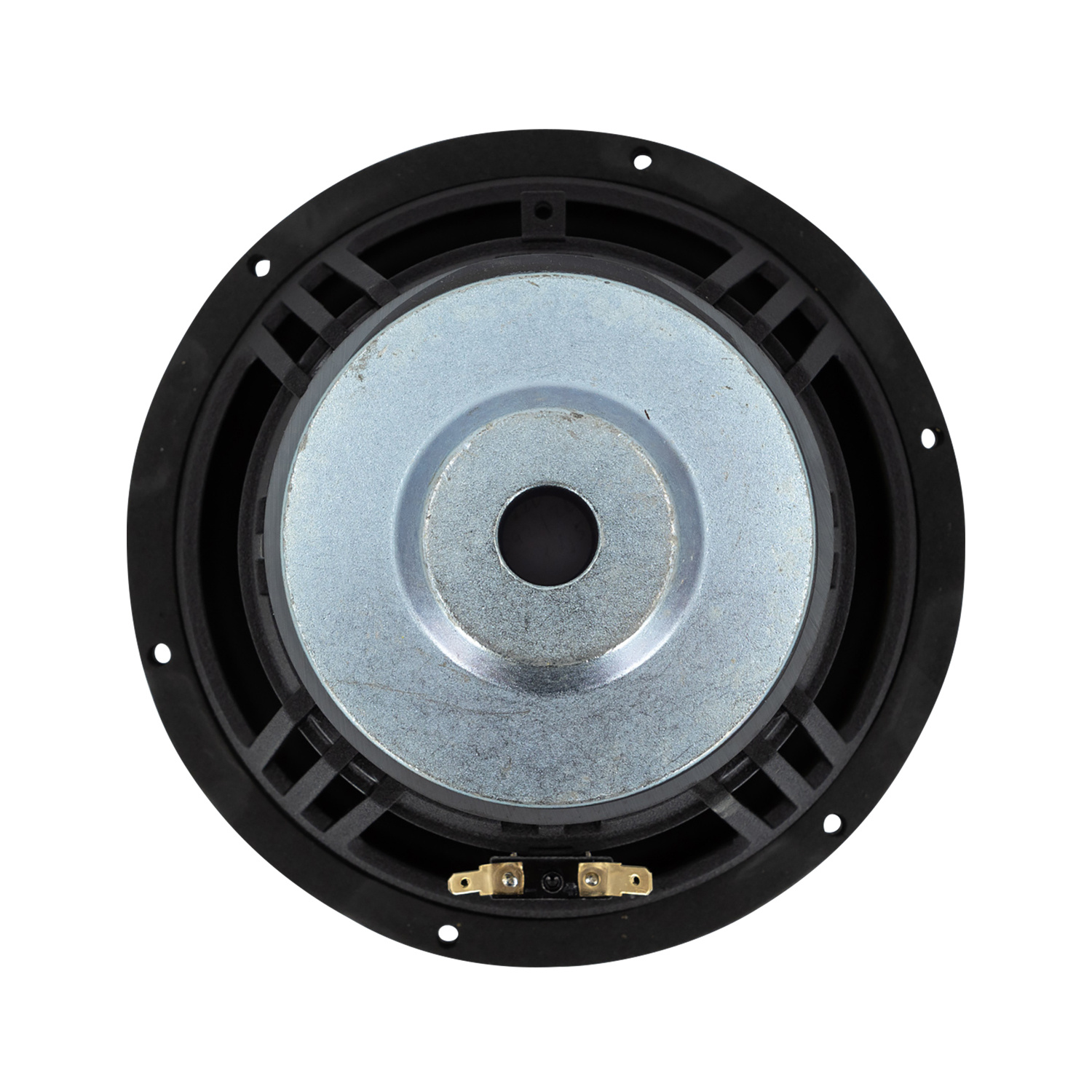

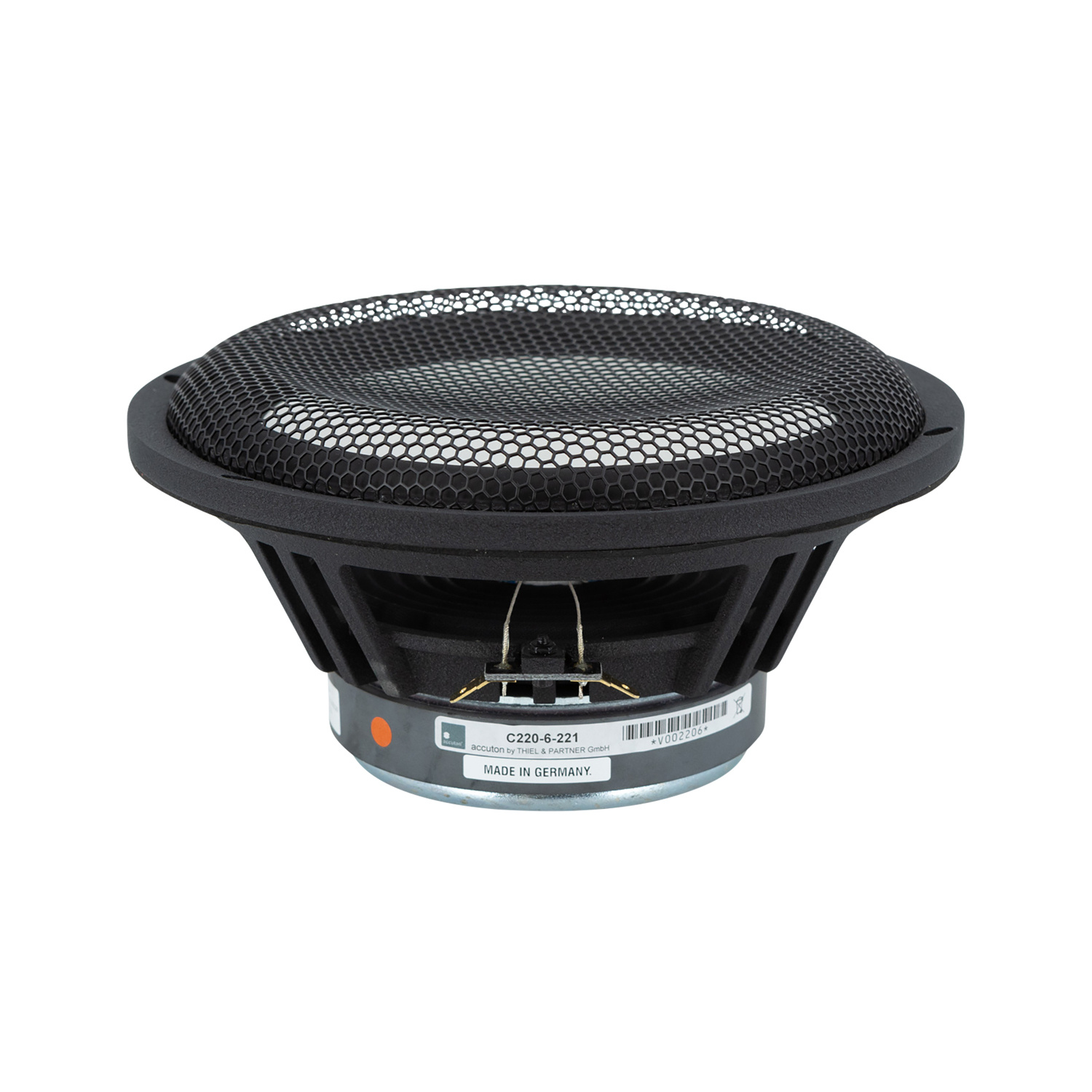

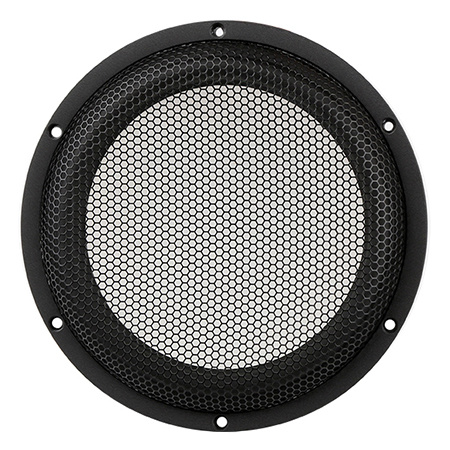

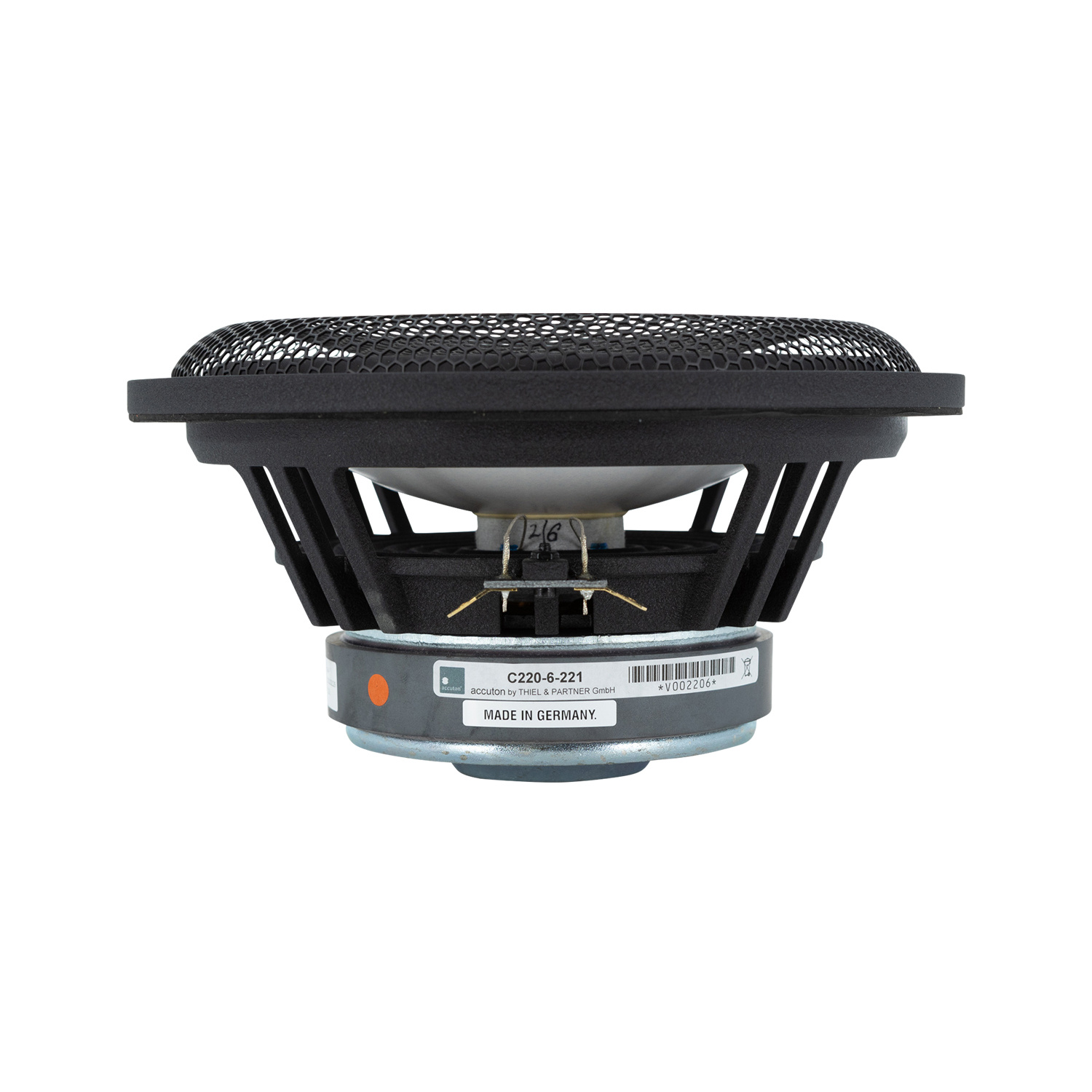

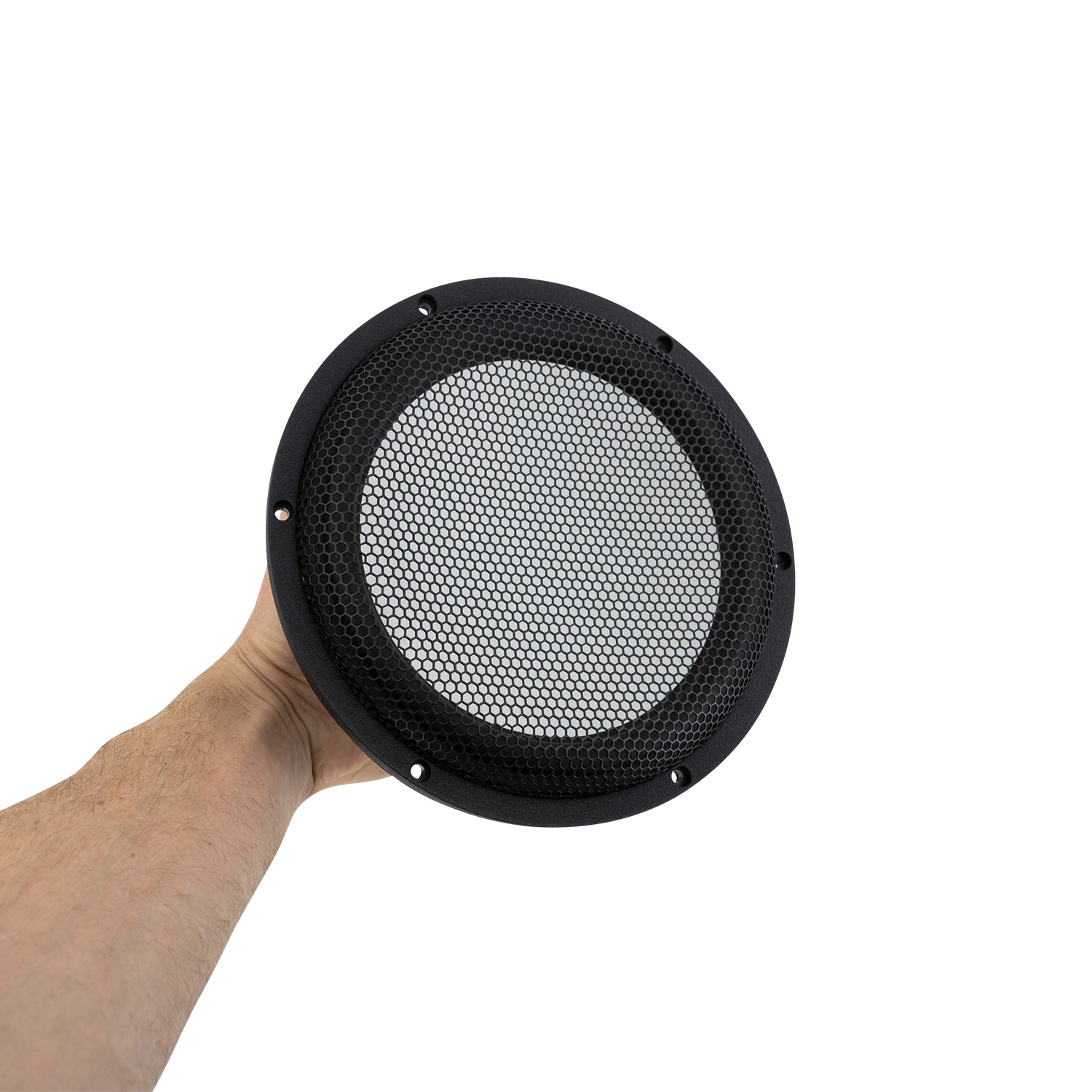

The Accuton C220-6-221 is an 8.5 inch bass-midrange driver with ultra-hard ceramic dome. It has a medium-sized voice coil with 38mm titanium voice coil former for high midrange resolution. The driver has an overhung motor design and a frequency range of 32 Hz - 2 kHz in vented box.
Highlights
- Application: Bass-Midrange
- Dome material: Ceramic
- Overall diameter: 220 MM
- Cutout Diameter/Square: 191 MM
- Overall depth: 105 MM
- Motor assembly depth: 42 mm
- Motor assembly diameter: 120 mm
- Sensitivity (2.83V / 1m) Spl: 88 dB
- DC-resistance Re: 6.3 Ohm
- Resonance frequency Fs: 26.3 Hz
- Equivalent volume of air Vas: 86.2 ltr
- Mechanical Q Qms: 7.1
- Electrical Q Qes: 0.42
- Total Q Qts: 0.40
- Effective piston area Sd: 224 Cm2
- Moving mass Mms: 30.4 g
- Suspension compliance CMs: 1.20 mm/n
- Mechanical resistance Rms: 0.71 Kg*s
- Power handling P: 150 W
- Linear excursion Xmax +/-5 mm
- Voice coil diameter: 38 mm
- Voice coil former material: Ti
- Voice coil material: Cu
- Voice coil inductance Le: 0.83 mH
- Force factor Bl: 8.7 N/A
- Motor type: Overhung
Product details
Accuton C220-6-221 Bass-midwoofer
The Accuton C220-6-221 is a high-quality bass-midrange driver with an ultra-hard ceramic dome. The driver has a medium-sized voice coil with 38mm titanium voice coil former for high midrange resolution. The driver has an overhung motor design which means that the voice coil is longer than the magnetic gap. This design allows for better control of the diaphragm movement and reduces distortion.
