        C25-6-158 1'' Ceramic Cell Tweeter

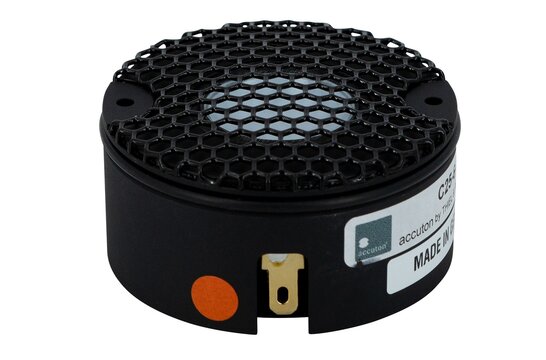

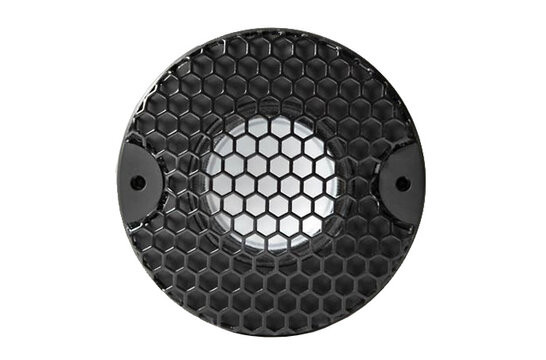

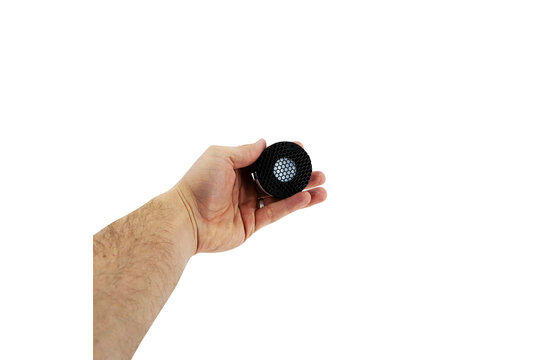

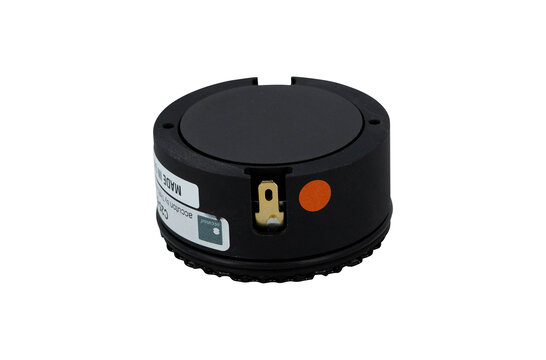

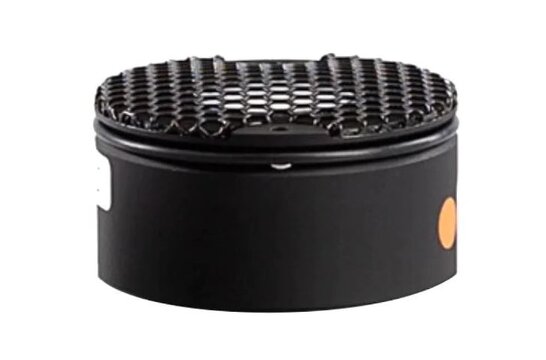

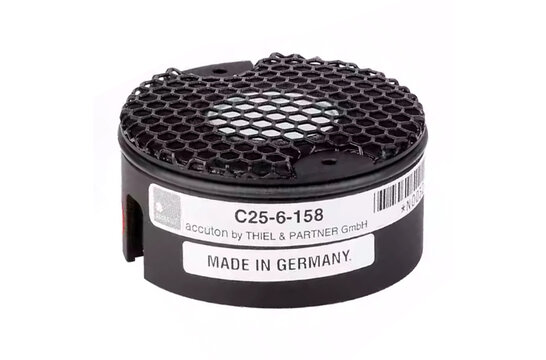

        Accuton C25-6-158 1'' Ceramic Cell Tweeter

        €469,95

        10+ In stock

        Accuton C25-6-158 1'' Ceramic Cell Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        € 388,39€ 469,95 10+ In stock
        • -5% Purchase 4 for only € 446,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Accuton C25-6-158 Cell Tweeter

        The C25-6-158 has an ultra-hard 25mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs.



        Highlights

        • full featured cell concept
        • underhung motor design
        • vented vc & pole piece
        • no ferrofluid filling
        • 2000 HZ - 25000 HZ



        Product details

        Accuton C25-6-158 1'' Ceramic Cell Tweeter



        The C25-6-158 is a 1 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.



        A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity.We recommend the C25-6-158 in an application above 2000 Hz.

        Show more

        Specifications

        Article number
        C25-6-158
        EAN
        8785256847488
        Power Handling (RMS)
        100 W
        Impedance (Z)
        6 Ω
        Resonant Frequency (Fs)
        905 Hz
        DC Resistance (Re)
        5.69 Ohm
        Mechanical Q (Qms)
        2.87
        Electromagnetic Q (Qes)
        0.97
        Total Q (Qts)
        0.73
        Overall Outside Diameter
        57.6 mm
        Cutout Diameter
        58 mm
