        C30-4-358 1,2'' Ceramic Cell Tweeter

        Accuton C30-4-358 1,2'' Ceramic Cell Tweeter

        €539,95

        Out of stock

        Accuton C30-4-358 1,2'' Ceramic Cell Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        € 446,24€ 539,95 Out of stock

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

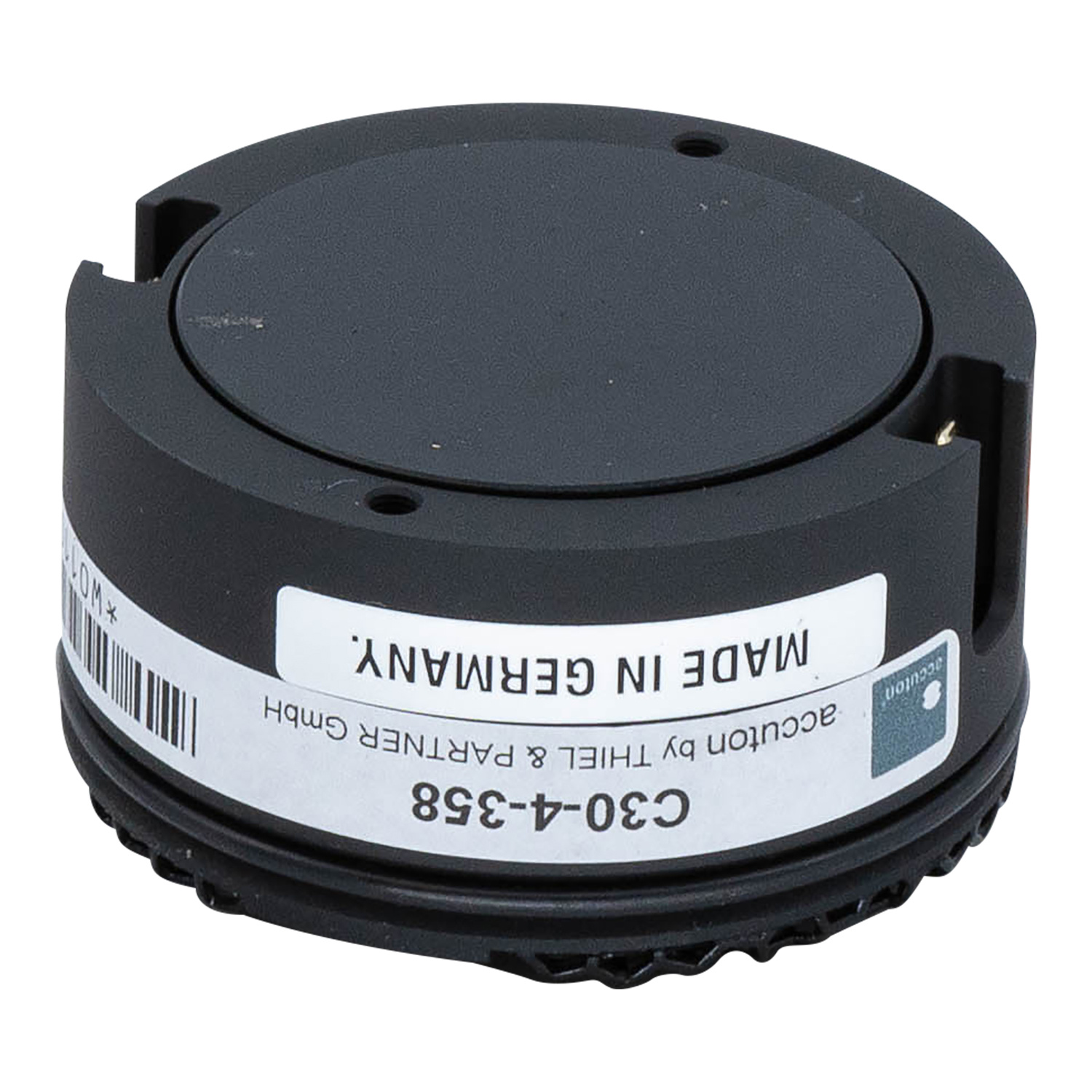

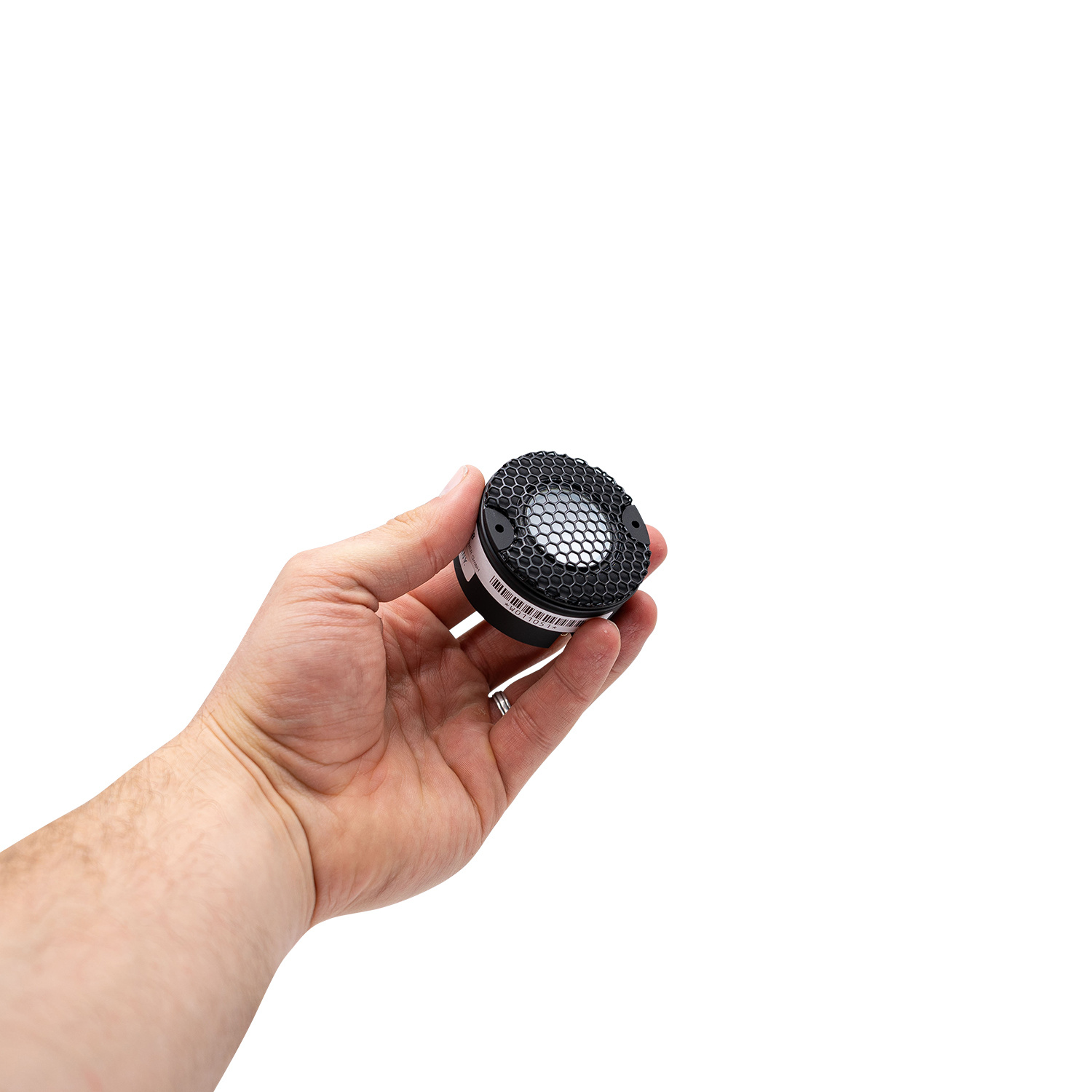

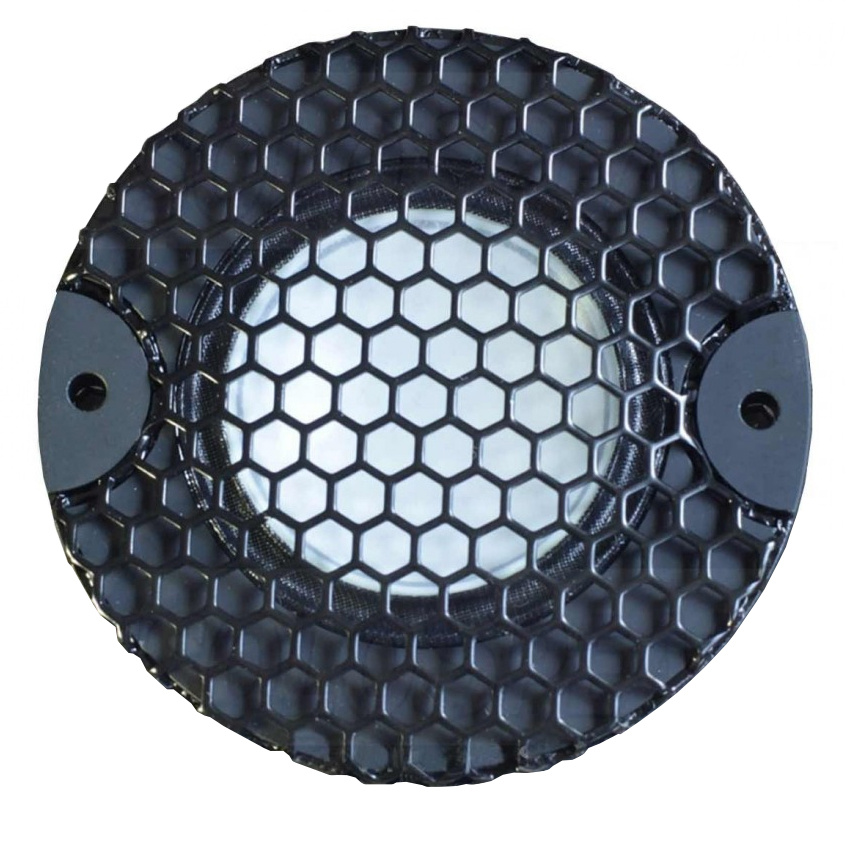

        Product description Accuton C30-4-358 Cell Tweeter

        The Accuton C30-4-358 is a tweeter with an ultra-hard 30mm ceramic cone in a 58mm aluminum enclosure. A proprietary clamping technique allows easy mounting and adaptation to various front panel designs. Since the diaphragm's breakup frequency is above the audible range and well damped, no diaphragm cutouts are required.



        Highlights

        • 1.2 inch tweeter with ultra-hard ceramic dome
        • Proprietary clamping technique for easy mounting
        • No dome cutouts required
        • Part of the Cell Concept series of drivers from Accuton
        • Dual neodymium magnet



        Product Details

        Accuton C30-4-358 1.2'' Cell Tweeter 4 Ohm



        A unique FEA-optimized underhang design with vented titanium voice coil former and dual neodymium magnet ensures low energy storage, excellent heat transfer and high excursion for low compression and extremely low distortion with values around 0.07% at 2.83 V and 0.5% max at 110 dB. The redesigned soft fabric surround centers the moving parts with improved linearity. We recommend the Accuton C30-4-358 in an application above 1800 Hz.



        The C30-4-358 is part of the Cell Concept series of drivers from Accuton. The Cell Concept is a unique approach to driver design that uses a series of small cells to create a large diaphragm area. This allows for greater control over the diaphragm movement and results in improved sound quality

        Show more

        Specifications

        Article number
        C30-4-358
        EAN
        8785256847518
        Tweeter Series
        Ceramic Cell Tweeter
        Cone / Dome Diameter
        30 mm
        Power Handling (RMS)
        120 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        93.5 dB
        Resonant Frequency (Fs)
        810 Hz
        DC Resistance (Re)
        5.8 Ohm
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        2.54
        Electromagnetic Q (Qes)
        0.81
        Total Q (Qts)
        0.62
        Overall Outside Diameter
        57.6 mm
        Cutout Diameter
        58 mm
        Depth
        28 mm

        Show more
