        C51-6-286 2'' Ceramic Cell Tweeter

        Accuton C51-6-286 2'' Ceramic Cell Tweeter

        €679,95

        6 In stock

        Add to cart

        Accuton C51-6-286 2'' Ceramic Cell Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        Show all Dome tweeter
        2" | 8 Ω
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        € 561,94€ 679,95 6 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter
        C51-6-286 2'' Ceramic Cell Tweeter

        Pros and cons

        According to our specialists
        • We recommend our C51-6-286 in an application above 800 Hz

        Product description Accuton C51-6-286 Cell Tweeter

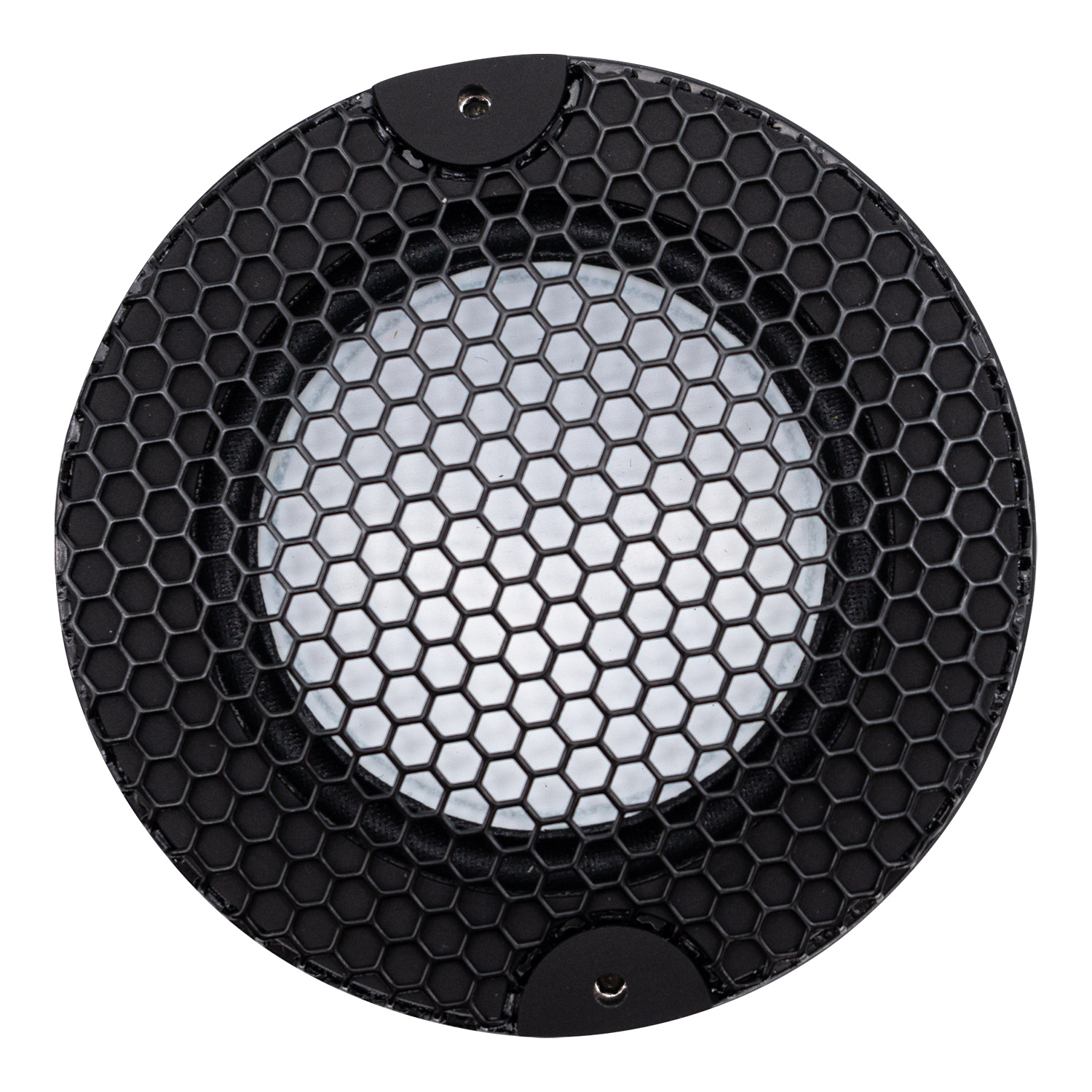

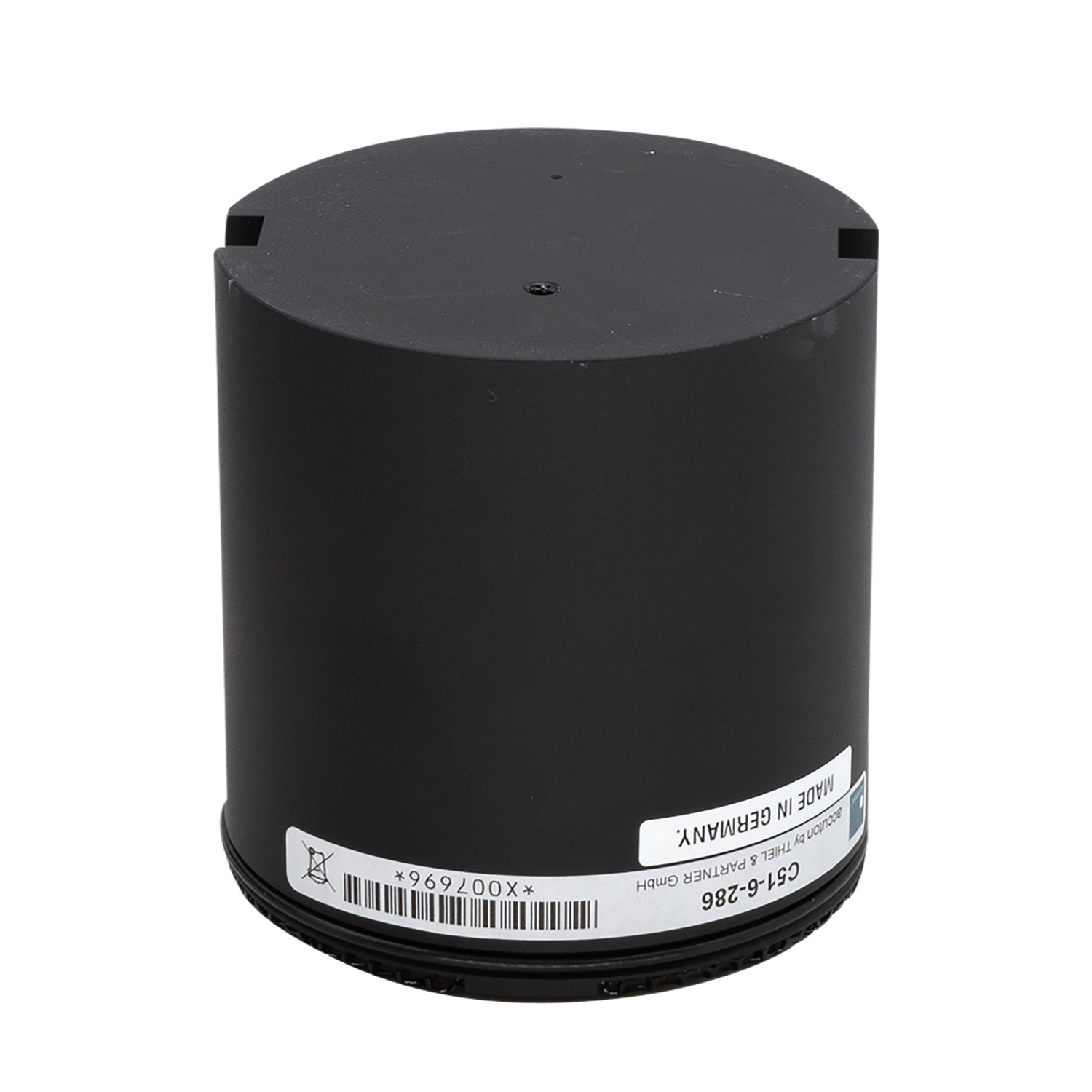

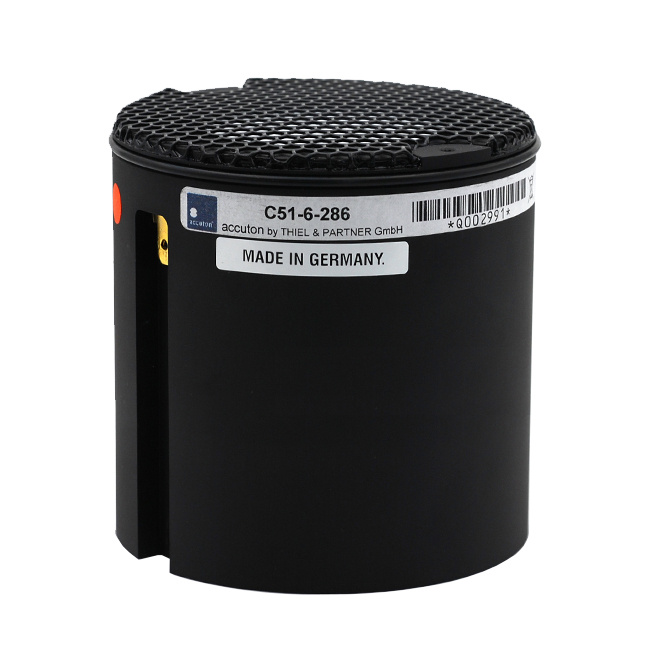

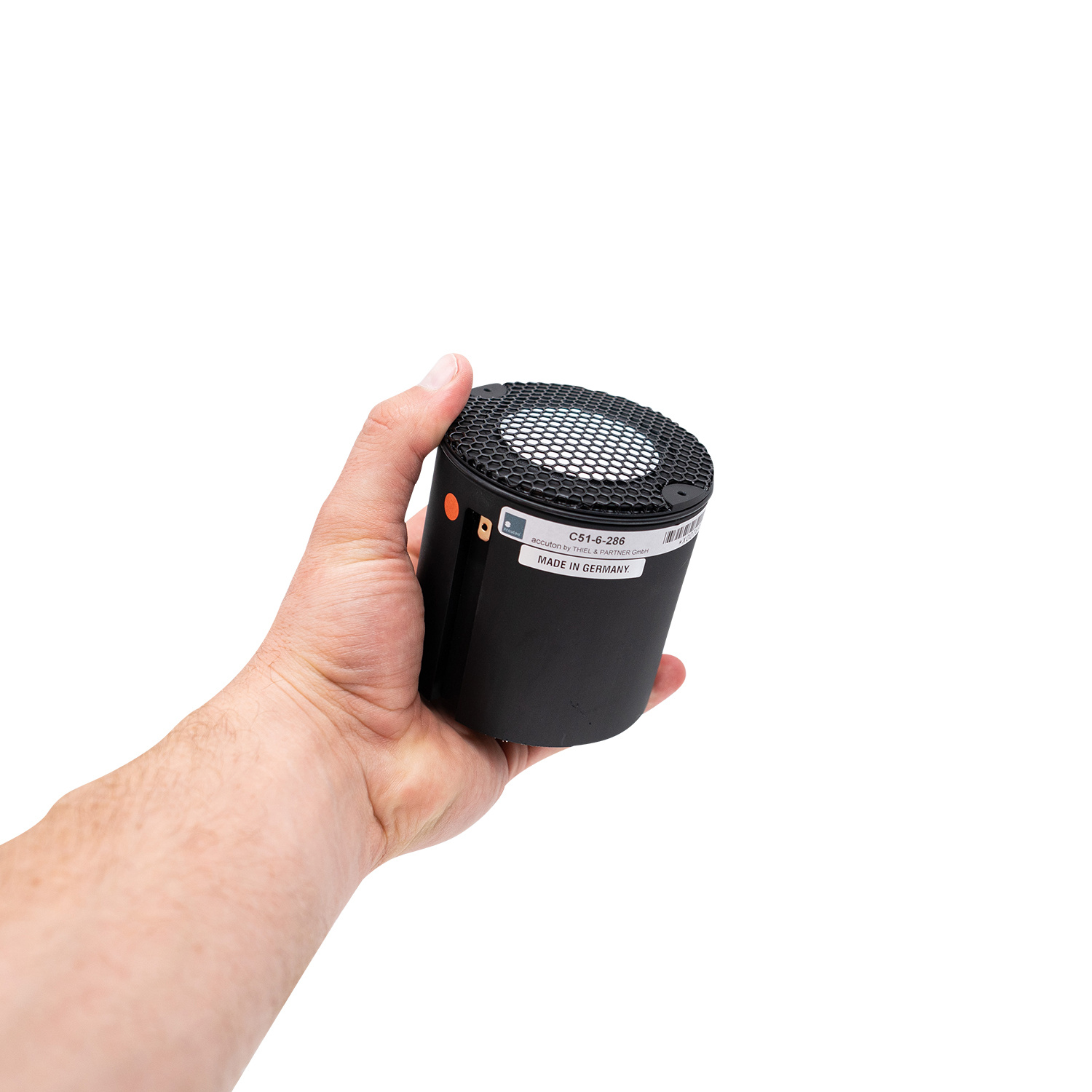

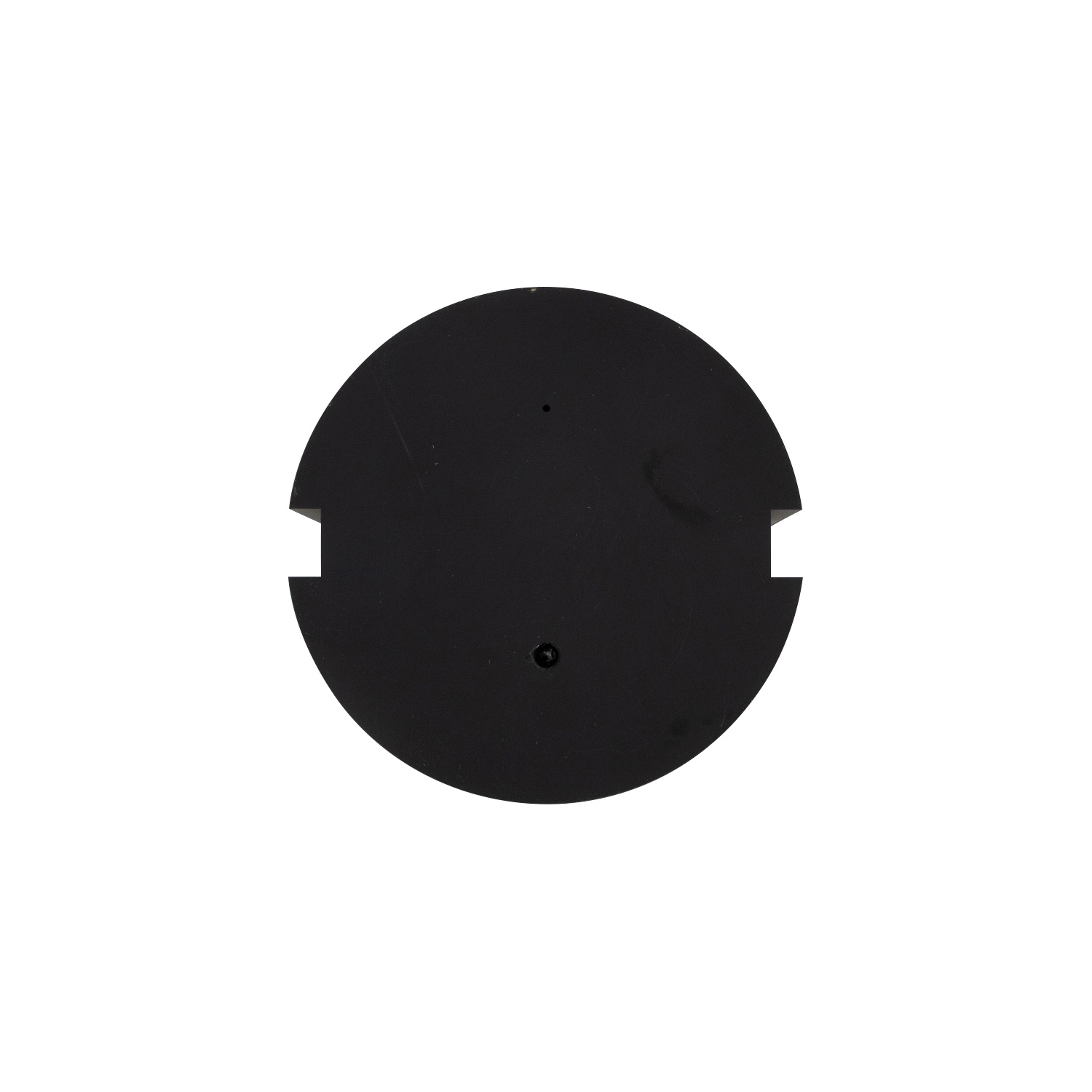

        The C51-6-286 is a 2 inch tweeter with ultra hard ceramic dome in a 86 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.



        Highlights

        • full featured cell concept
        • underhung motor design
        • vented vc & pole piece
        • no ferrofluid filling
        • 800 HZ - 10000 HZ



        Product details



        Accuton C51-6-286 2'' Ceramic Cell Tweeter



        A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend the C51-6-286 in an application above 800 Hz.



        The ultra-hard ceramic dome is made of a material that is extremely stiff and light, which makes it ideal for high-frequency reproduction. The ceramic material used in the dome is also highly resistant to temperature changes and humidity, which makes it ideal for use in high-end audio systems

        Show more

        Specifications

        Article number
        C51-6-286
        EAN
        8785256847525
        Tweeter Series
        Ceramic Cell Tweeter
        Power Handling (RMS)
        120 Watt
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        800 - 10.000 Hz
        Resonant Frequency (Fs)
        581 Hz
        DC Resistance (Re)
        5.6 Ohm
        Mechanical Q (Qms)
        4.86
        Electromagnetic Q (Qes)
        1.61
        Total Q (Qts)
        1.21
        Overall Outside Diameter
        85.6 mm
        Cutout Diameter
        86 mm
        Depth
        87 mm
