        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil

        Audyn CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil

        €52,45

        2 In stock

        Add to cart

        Audyn CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Audyn
        Show all Copper foil coils
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        € 43,35€ 52,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil
        CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil

        Product description Audyn CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG

        A high-quality Corobar Coil from Audyn, the CO62/3.9/140, perfect for crossover components.



        Highlights

        • Inductance of 3.9 mH
        • Resistance of 0.42 Ω
        • Capacitance tolerance of ±5%
        • Constructed with 15 AWG copper foil



        Product details

        Audyn CO62/3.9/140 | 3,9 mH | 0,42 Ω | 5% | 15 AWG | Corobar Coil



        The Audyn CO62/3.9/140 Corobar coil is a copper foil coil designed specifically for crossover components. With an inductance value of 3.9 mH and a resistance of 0.42 Ω, it ensures precise and reliable performance. The capacitance tolerance of ±5% provides stability in various conditions. The coil is made from copper with a purity greater than 99.99%, ensuring excellent conductivity. The 15 AWG copper foil enhances the coil's performance. The coil is housed in an ABS spindle form, ensuring durability and strength. The coil also features a wire connection length of 10/40 mm and a tinning length of 9 mm. The L-measurement is nominal at 25 degrees C Cu. 1 kHz. The Corobar design ensures superior performance in a wide range of applications.



        I.T. Intertechnik article code: 1340945

        Show more

        Specifications

        Article number
        CO62/3.9/140
        EAN
        8785256850280
        Coil type
        Copper foil coils
        Inductance
        3.9 mH
        DCR
        0.42 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

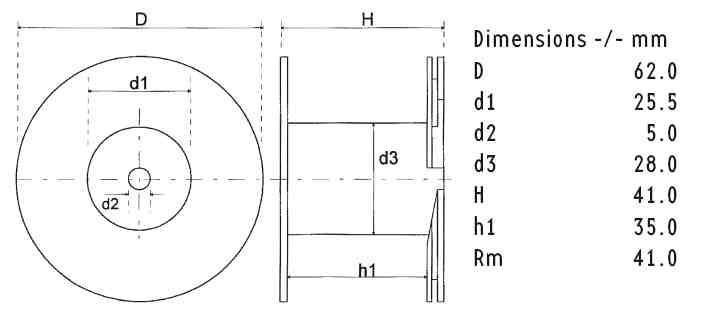

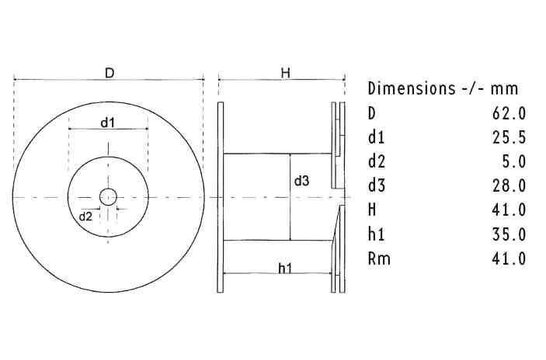

        Dimensions: Ø * H (mm)
        62 x 41
