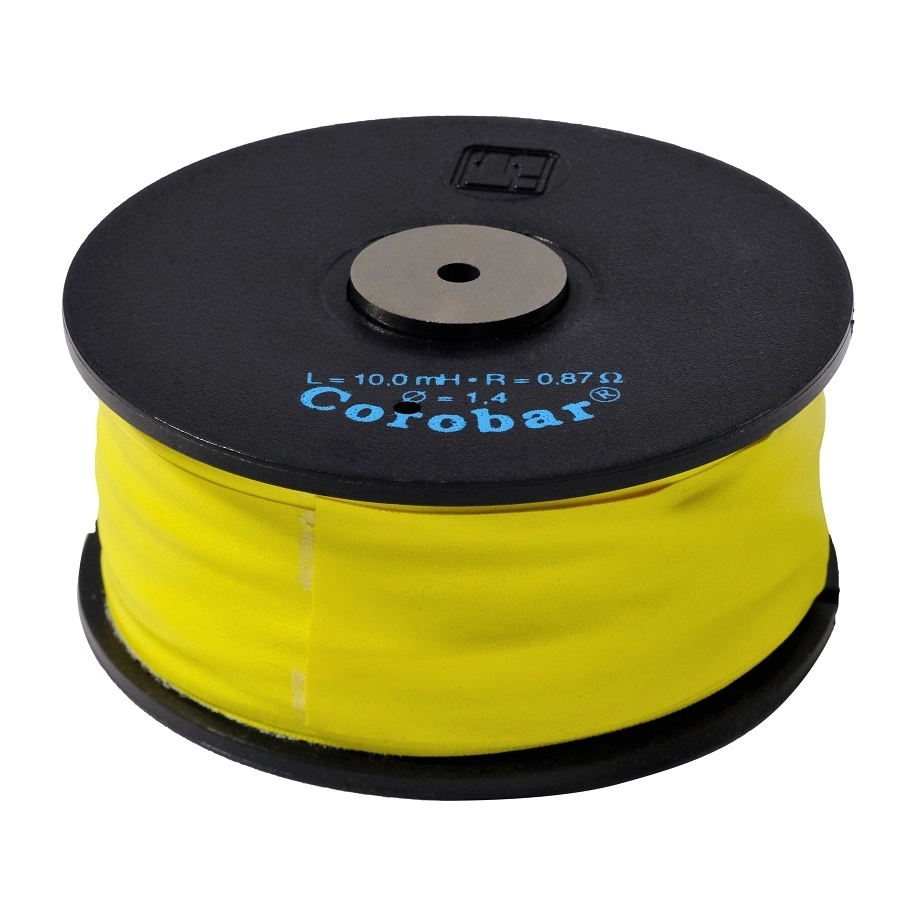

        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil

        Audyn CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil

        €99,95

        2 In stock

        Add to cart

        Audyn CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Audyn
        Show all Copper foil coils
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        € 82,60€ 99,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil
        CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil

        Product description Audyn CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG

        A high-quality, precision engineered Corobar Coil for crossover components.



        Highlights

        • CU purity greater than 99.99%
        • 10/40mm wire connection length
        • 9mm tin plating length
        • 5% inductance tolerance



        Product details

        Audyn CO92/10.0/140 | 10 mH | 0,87 Ω | 5% | 15 AWG | Corobar Coil



        The Audyn CO92/10.0/140 Corobar Coil is a top-notch crossover component designed for high performance audio systems. It features an inductance of 10 mH and a resistance of 0.87 Ω, ensuring optimal performance. The coil is constructed with CU of a purity greater than 99.99%, promising high conductivity and minimal signal loss. With a wire connection length of 10/40mm and a tin plating length of 9mm, the coil ensures secure connections and superior performance. The coil also boasts a 5% inductance tolerance, ensuring precise sound reproduction and high reliability. The coil is manufactured with an ABS spool body material, ensuring durability and long-lasting performance. It's designed with Corobar core shape, renowned for its excellent inductive properties. This coil is the perfect choice for those seeking superior performance and reliability in their audio systems.



        I.T. Intertechnik article code: 1340954

        Show more

        Specifications

        Article number
        CO92/10.0/140
        EAN
        8785256850334
        Coil type
        Copper foil coils
        Inductance
        10 mH
        DCR
        0.87 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

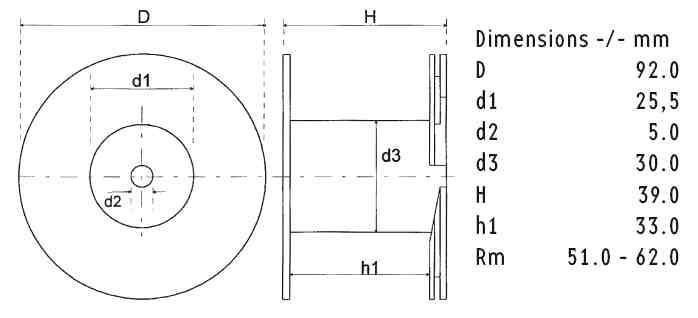

        Dimensions: Ø * H (mm)
        92 x 39

        Show more
