        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil

        Audyn CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil

        €72,45

        2 In stock

        Add to cart

        Audyn CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Audyn
        Show all Copper foil coils
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        € 59,88€ 72,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil
        CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil

        Product description Audyn CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG

        A high-quality Audyn Corobar Coil with 5.6 mH inductance, 0.56 Ω resistance, and 5% tolerance.



        Highlights

        • High inductance of 5.6 mH
        • Low resistance of 0.56 Ω
        • Corobar Core for superior performance
        • Tight tolerance of 5%



        Product details

        Audyn CO92/5.6/140 | 5,6 mH | 0,56 Ω | 5% | 15 AWG | Corobar Coil



        This Audyn Corobar Coil, part of the Crossover components Coils Copper foil coils category, is a top-tier device designed for superior performance. It features a high inductance of 5.6 mH and a low resistance of 0.56 Ω, ensuring maximum efficiency. The coil has a tight tolerance of 5%, which is beneficial in maintaining stability and precision. The Corobar core significantly enhances the coil's performance. The coil's wire connection length is 10/40 mm with a tinning length of 9 mm. The coil body material is ABS, known for its durability and resilience. The copper purity is more than 99.99%, guaranteeing optimal conductivity. The coil is measured at the nominal temperature of 25 degrees Celsius at 1 kHz. This product is a testament to Audyn's commitment to delivering high-quality audio equipment.



        I.T. Intertechnik article code: 1340948

        Show more

        Specifications

        Article number
        CO92/5.6/140
        EAN
        8785256850303
        Coil type
        Copper foil coils
        Inductance
        5.6 mH
        DCR
        0.56 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

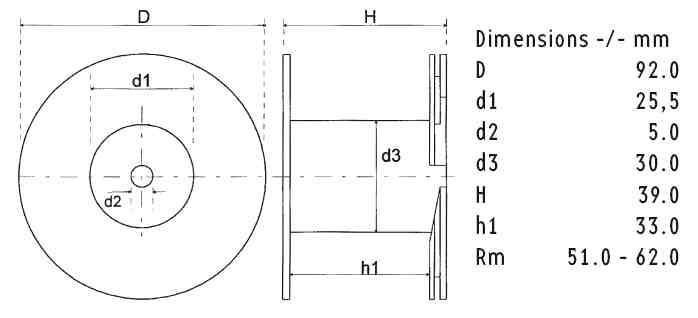

        Dimensions: Ø * H (mm)
        92 x 39

        Show more
