        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil

        Audyn CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil

        €78,45

        2 In stock

        Add to cart

        Audyn CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Audyn
        Show all Copper foil coils
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        € 64,83€ 78,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil
        CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil

        Product description Audyn CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG

        A high-purity Crossover Component, the Audyn CO92/6.8/140 Corobar Coil.



        Highlights

        • High inductance value of 6.8mH
        • Low resistance of 0.66 Ohms
        • Copper purity greater than 99.99%
        • Inductance tolerance of ± 5%



        Product details

        Audyn CO92/6.8/140 | 6,8 mH | 0,66 Ω | 5% | 15 AWG | Corobar Coil



        This Audyn CO92/6.8/140 Corobar Coil is a copper foil coil belonging to the category of crossover components. The coil boasts a high inductance value of 6.8 millihenries and a low resistance of 0.66 ohms. The coil wire of the Audyn CO92/6.8/140 is made from copper with a purity of over 99.99%. One of the key features of this coil is the inductance tolerance of ± 5%. The wire connection length is 10/40mm and the tinning length is 9mm. The coil body is made from ABS material and the core form is Corobar. The coil is designed to operate optimally at a nominal temperature of 25 degrees Celsius. This coil is ideal for high performance audio crossover networks.



        I.T. Intertechnik article code: 1340950

        Show more

        Specifications

        Article number
        CO92/6.8/140
        EAN
        8785256850310
        Coil type
        Copper foil coils
        Inductance
        6.8 mH
        DCR
        0.66 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

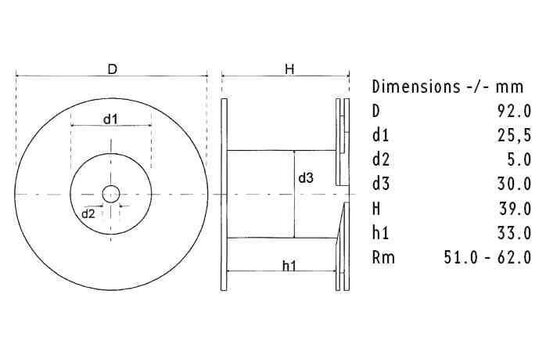

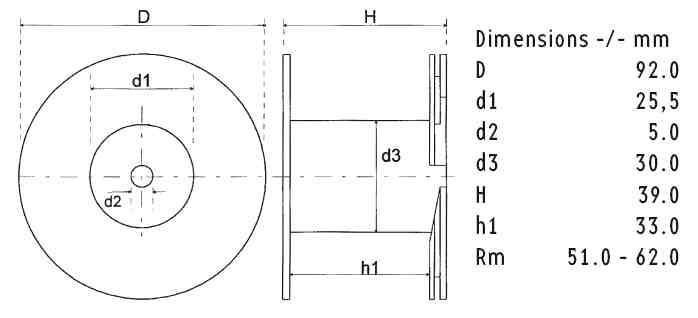

        Dimensions: Ø * H (mm)
        92 x 39

        Show more
