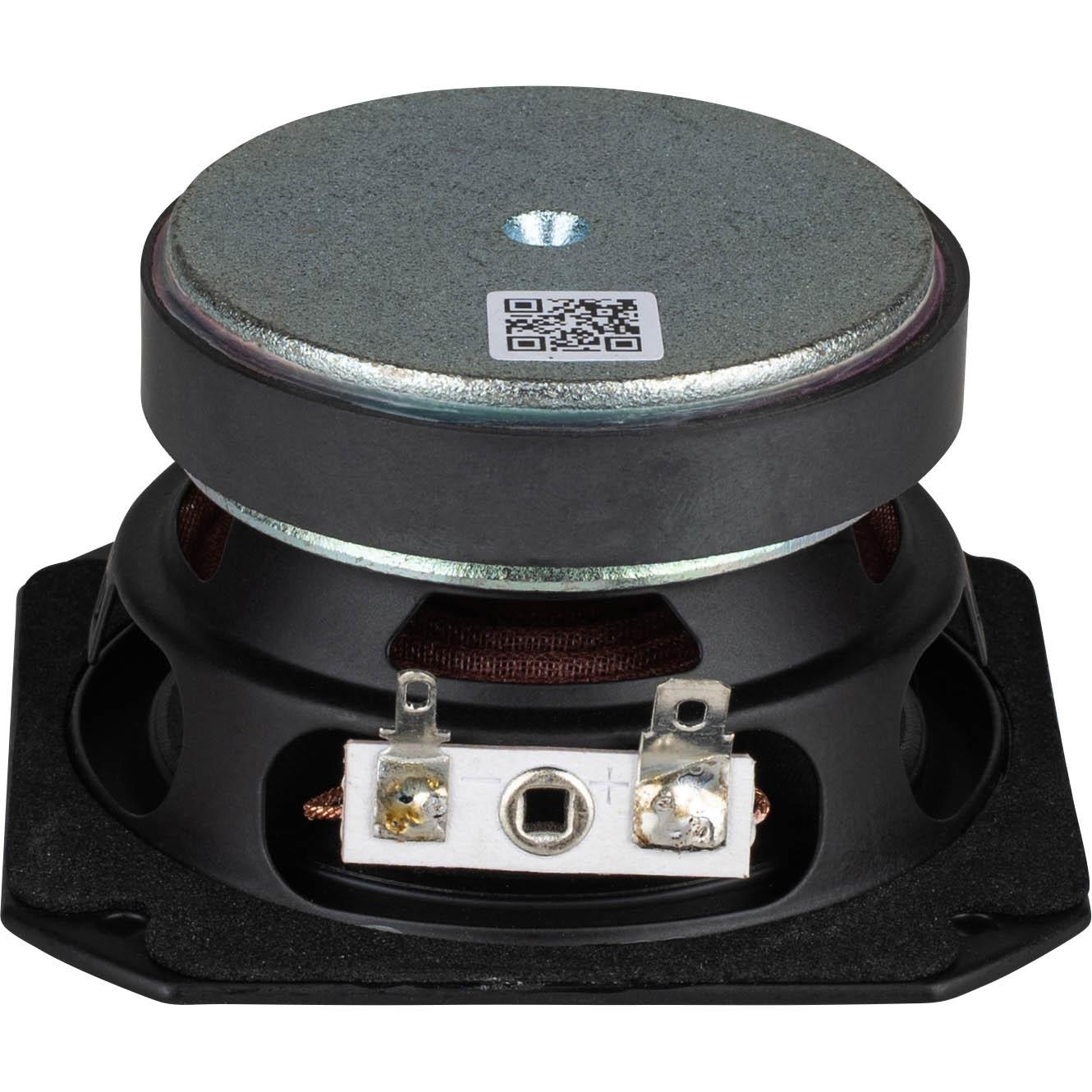

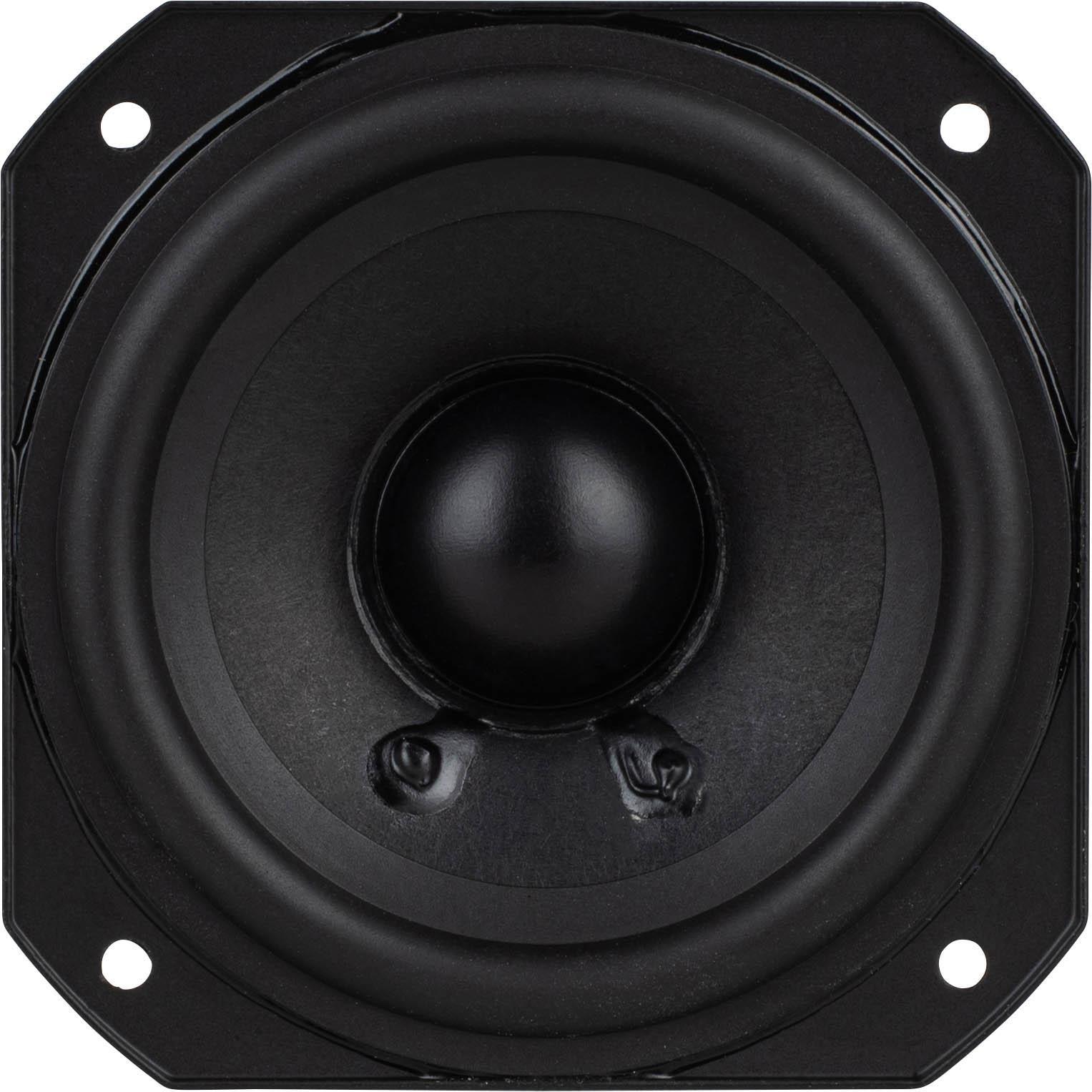

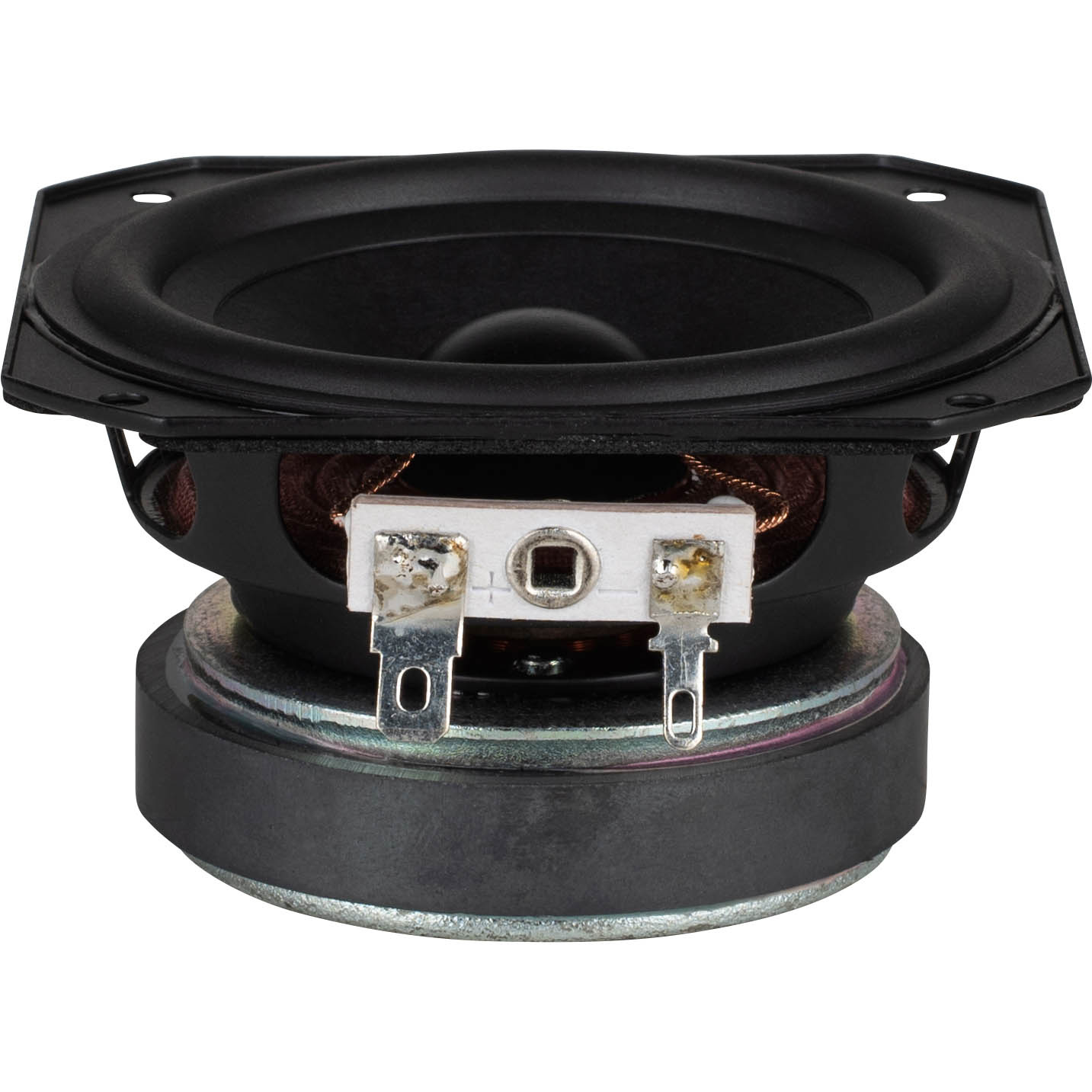

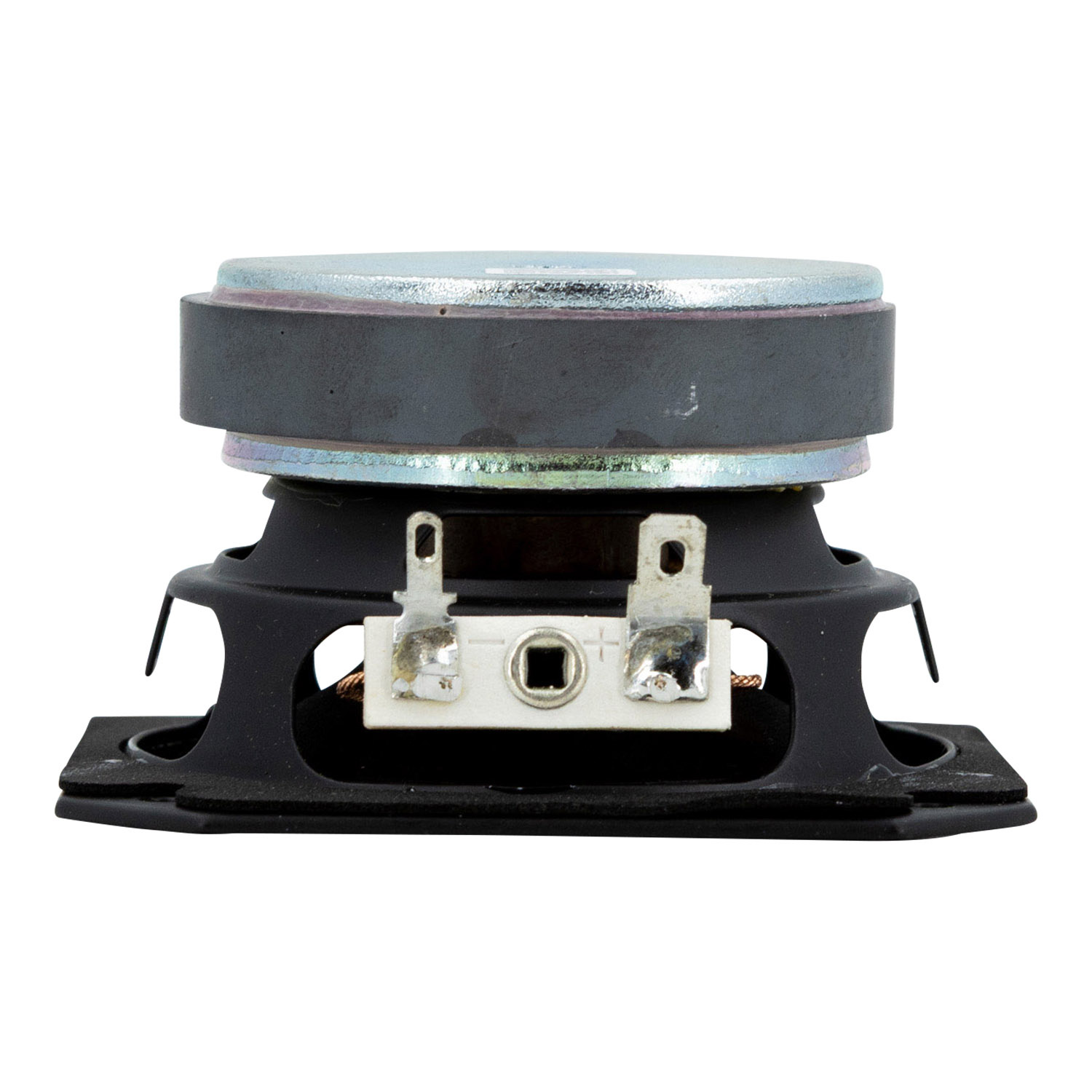

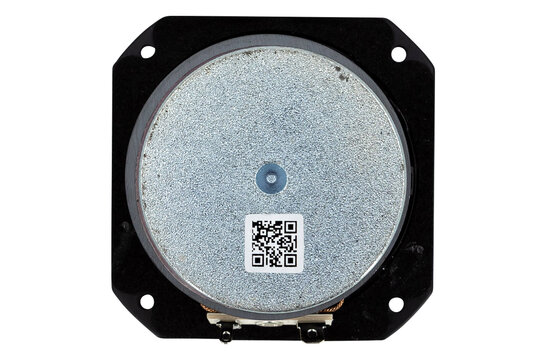

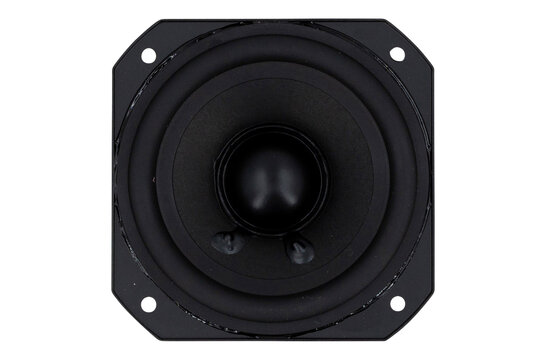

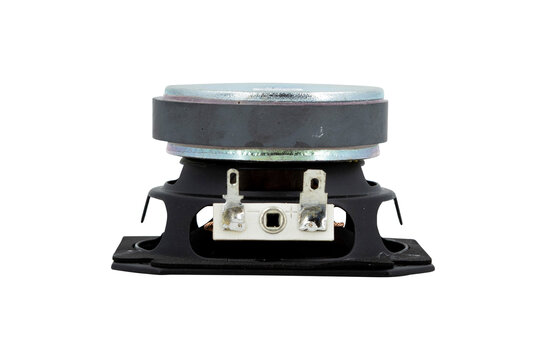

        CE78PF-4 3" Full-Range 10W 4 ohm

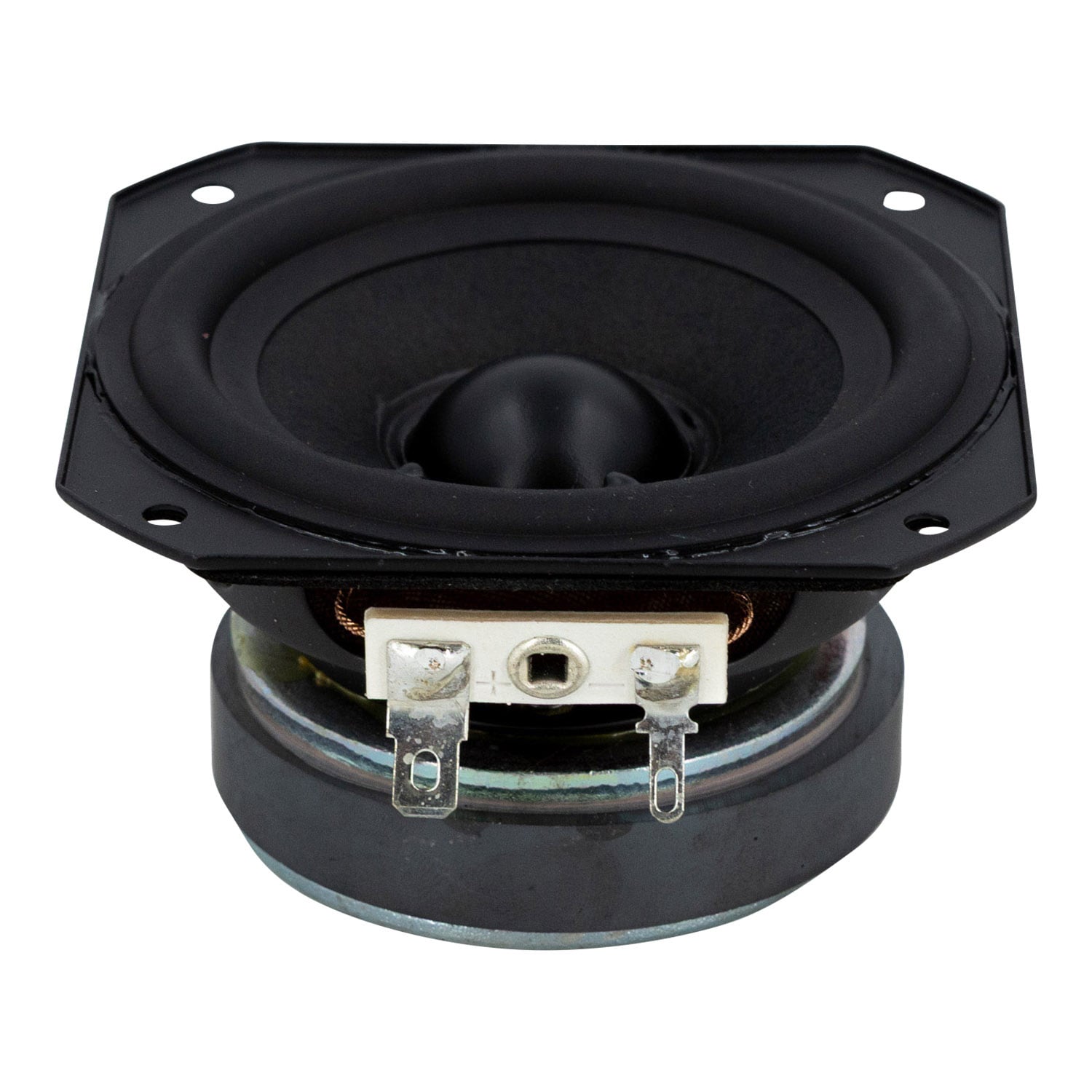

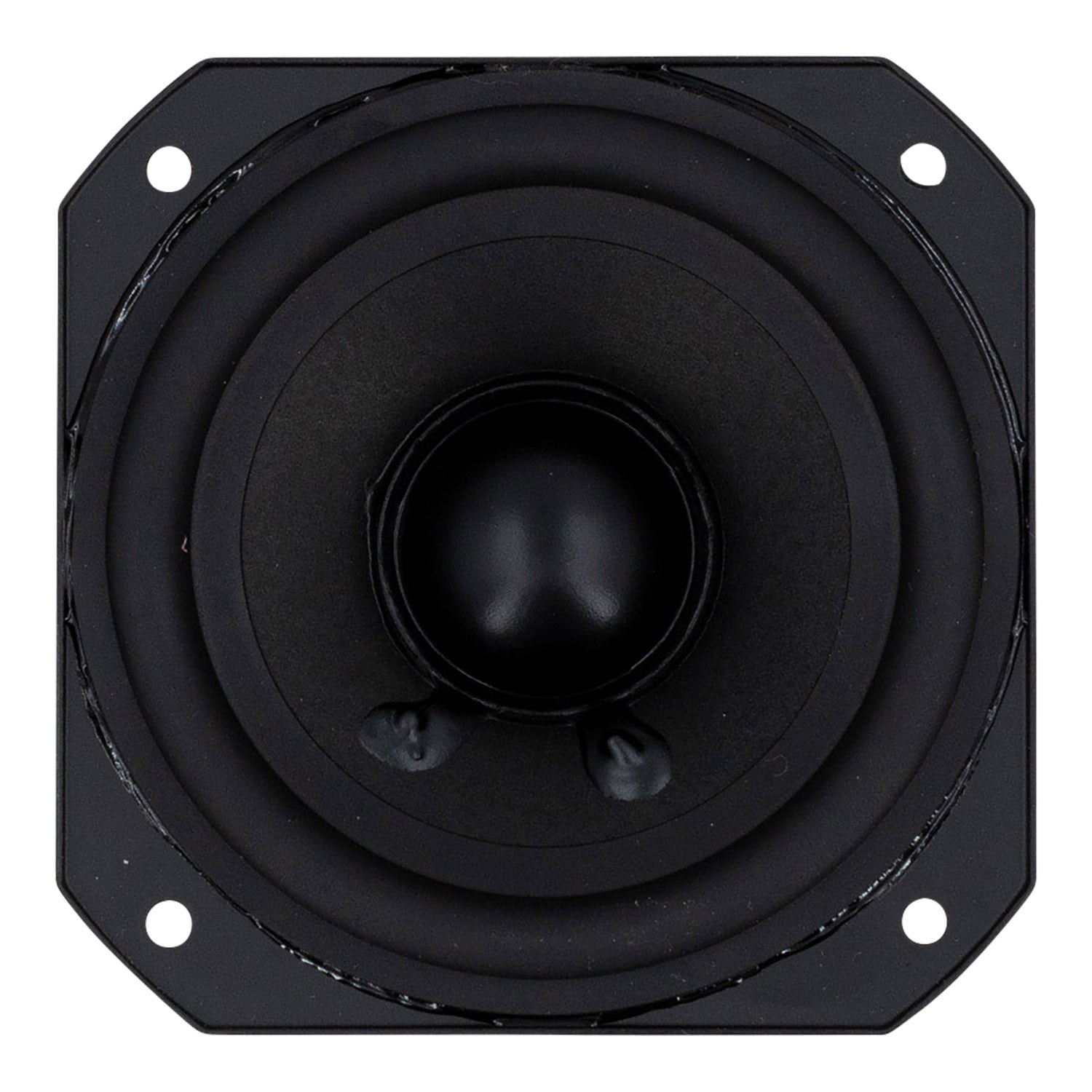

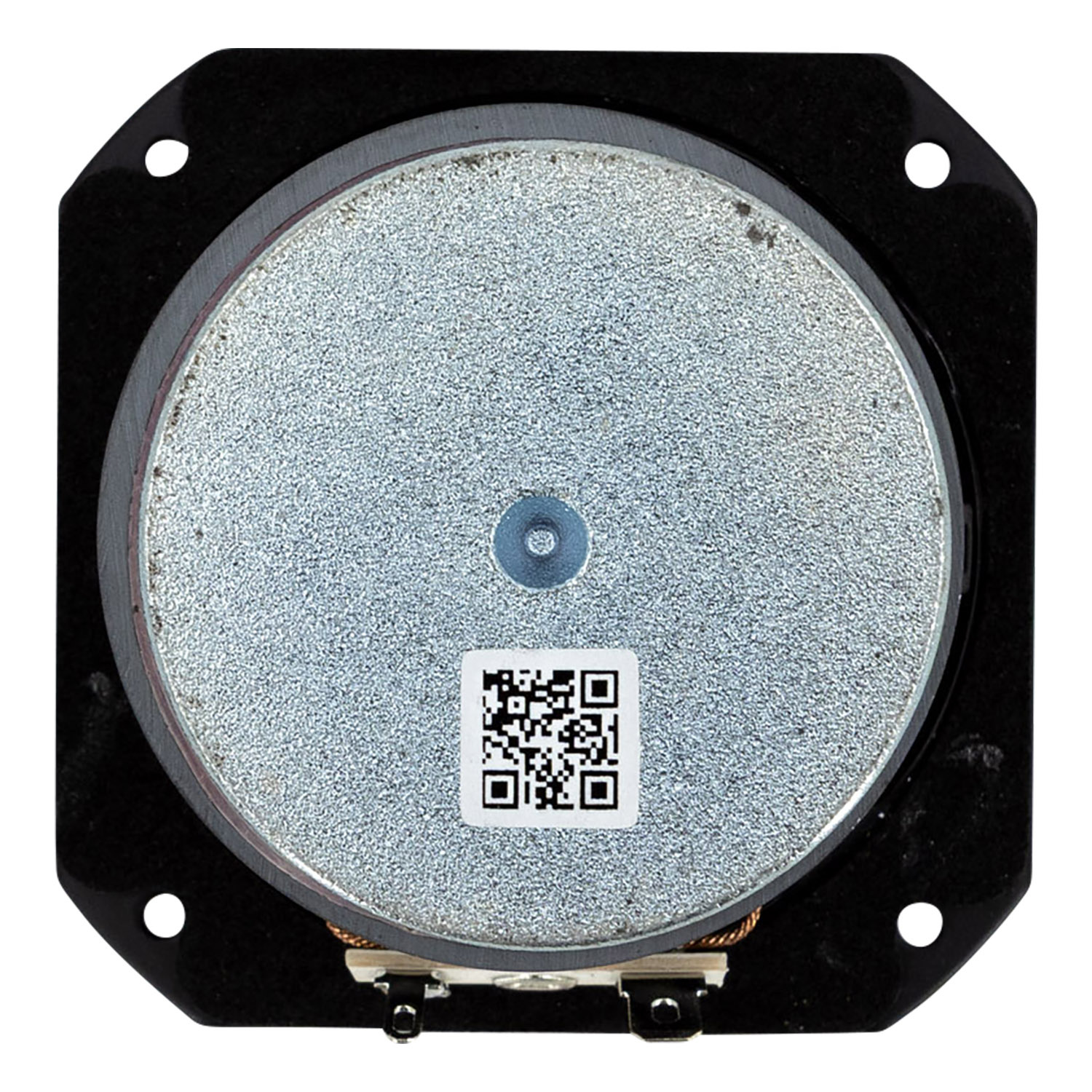

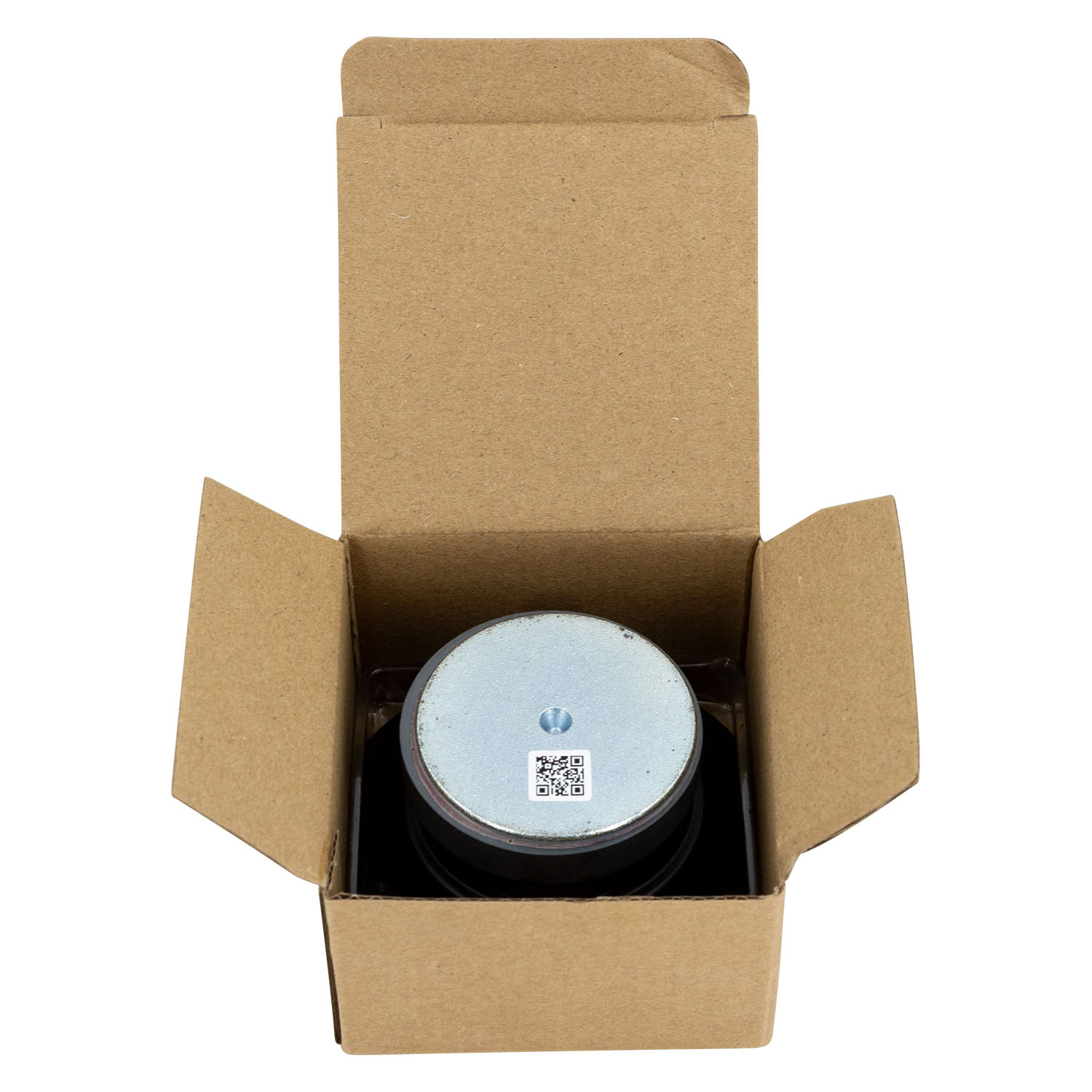

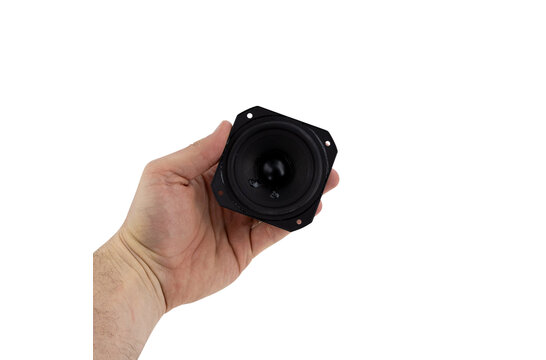

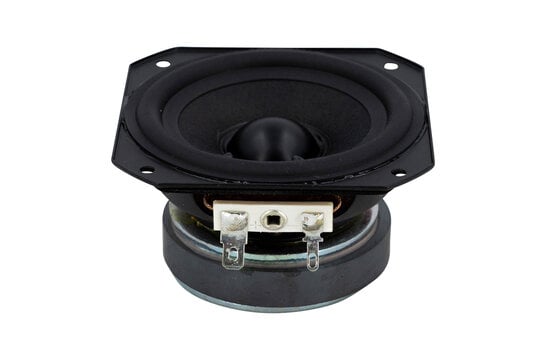

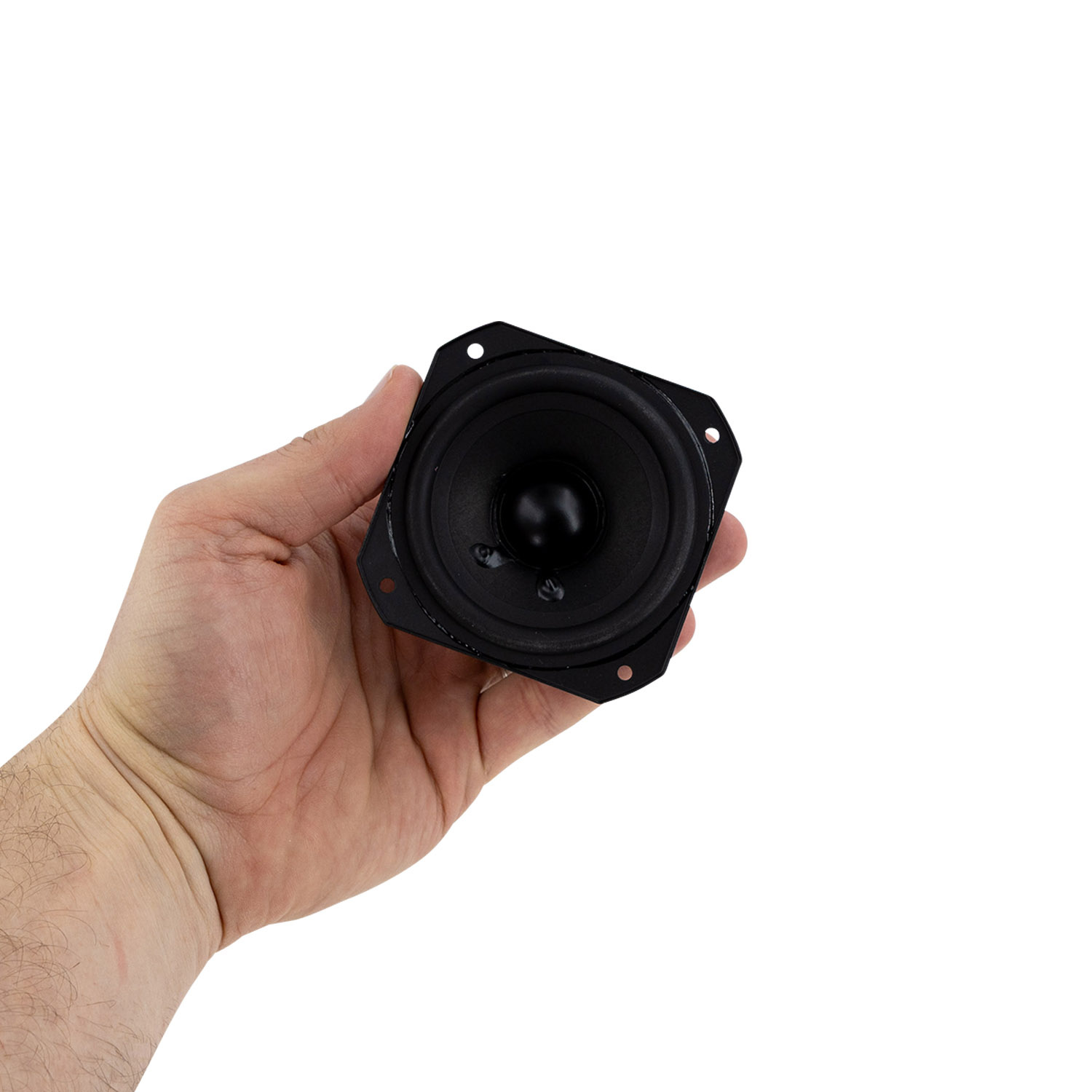

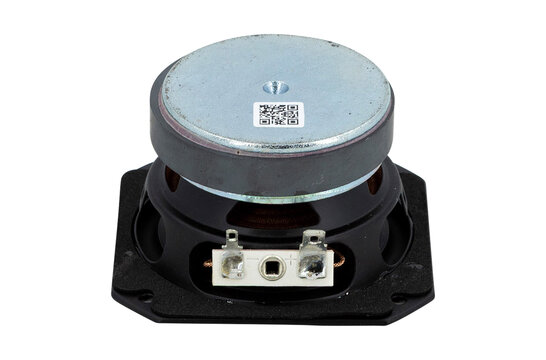

        Dayton Audio CE78PF-4 3" Full-Range 10W 4 ohm

        €12,95

        1 In stock

        Add to cart

        Dayton Audio CE78PF-4 3" Full-Range 10W 4 ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Full-range woofer
        3'' | 4 Ω
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        € 10,70€ 12,95 1 In stock
        • -5% Purchase 4 for only € 12,30 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm
        CE78PF-4 3" Full-Range 10W 4 ohm

        Pros and cons

        According to our specialists
        • Suitable for commercial installations, DIY projects, art exhibits, and more

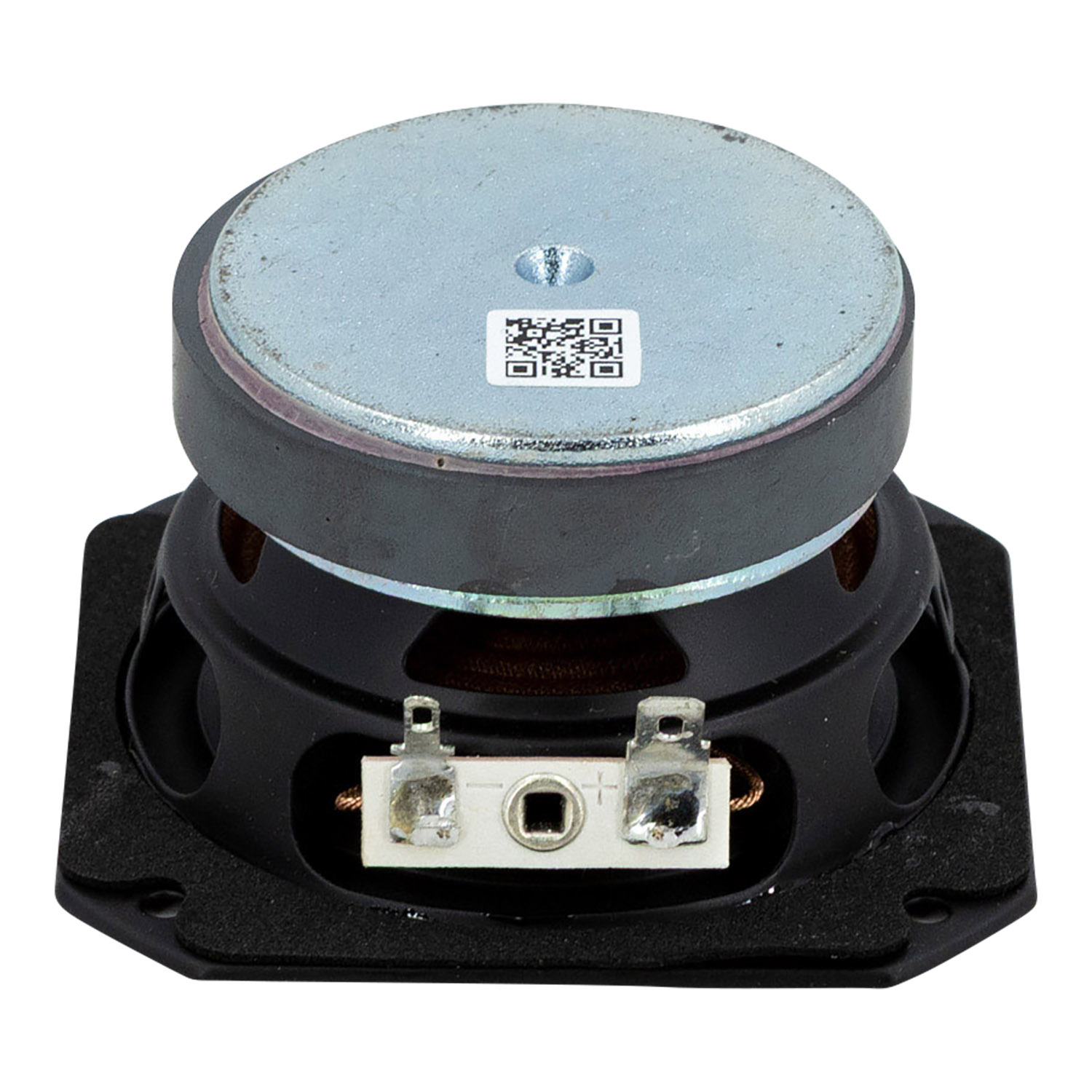

        Product description Dayton Audio CE78PF-4 Full-range woofer

        The Dayton Audio CE78PF-4 is a 3" full-range woofer with a 4 ohm impedance. It has a power handling capacity of 10 watts RMS and a frequency response of 80Hz to 15kHz. It is a popular choice for DIY speaker projects due to its affordable price and good sound quality.



        Highlights

        • Good sound quality
        • Smooth and natural sound
        • Efficient
        • Wide range of applications



        Product details

        Dayton Audio CE78PF-4 3" Full-Range 10W 4 ohm



        The CE78PF-4 has a good balance of bass, midrange, and treble. It produces a smooth and natural sound, even at high volumes. It is also relatively efficient, so it can be driven by a small amplifier. The CE78PF-4 has a frequency response of 80Hz to 15kHz, so it can reproduce a wide range of sounds, from deep bass to soaring highs. But what really sets this speaker apart is its natural, uncolored sound. It's like having a live band playing in your living room.

        Show more

        Specifications

        Article number
        CE78PF-4
        EAN
        0848791009372
        Woofer Series
        Dayton Audio CE series
        Woofer Type
        Full Range
        Nominal Diameter
        3"
        Power Handling (RMS)
        10 Watts
        Power Handling (max)
        20 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        85 dB
        Frequency Response
        200 - 18.000 Hz
        Voice Coil Diameter
        20 mm
        DC Resistance (Re)
        3.7 Ω
        Voice Coil Inductance (Le)
        0.17 mH
        Resonant Frequency (Fs)
        100 Hz
        Mechanical Q (Qms)
        3.9
        Electromagnetic Q (Qes)
        1.34
        Total Q (Qts)
        0.99
        Diaphragm Mass Inc. Airload (Mms)
        2.8 g
        Surface Area of Cone (Sd)
        30.2 cm²
        Volume of Displacement (Vd)
        4.2 cm³
        BL Product (BL)
        2.22 Tm
        Compliance Equivalent Volume (Vas)
        1.14 liters
        Maximum Linear Excursion (Xmax)
        1.4 mm
        Overall Outside Diameter
        78 mm
        Overall Depth
        42.1 mm
        Baffle Cutout Diameter
        69.5 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        3.5 mm
